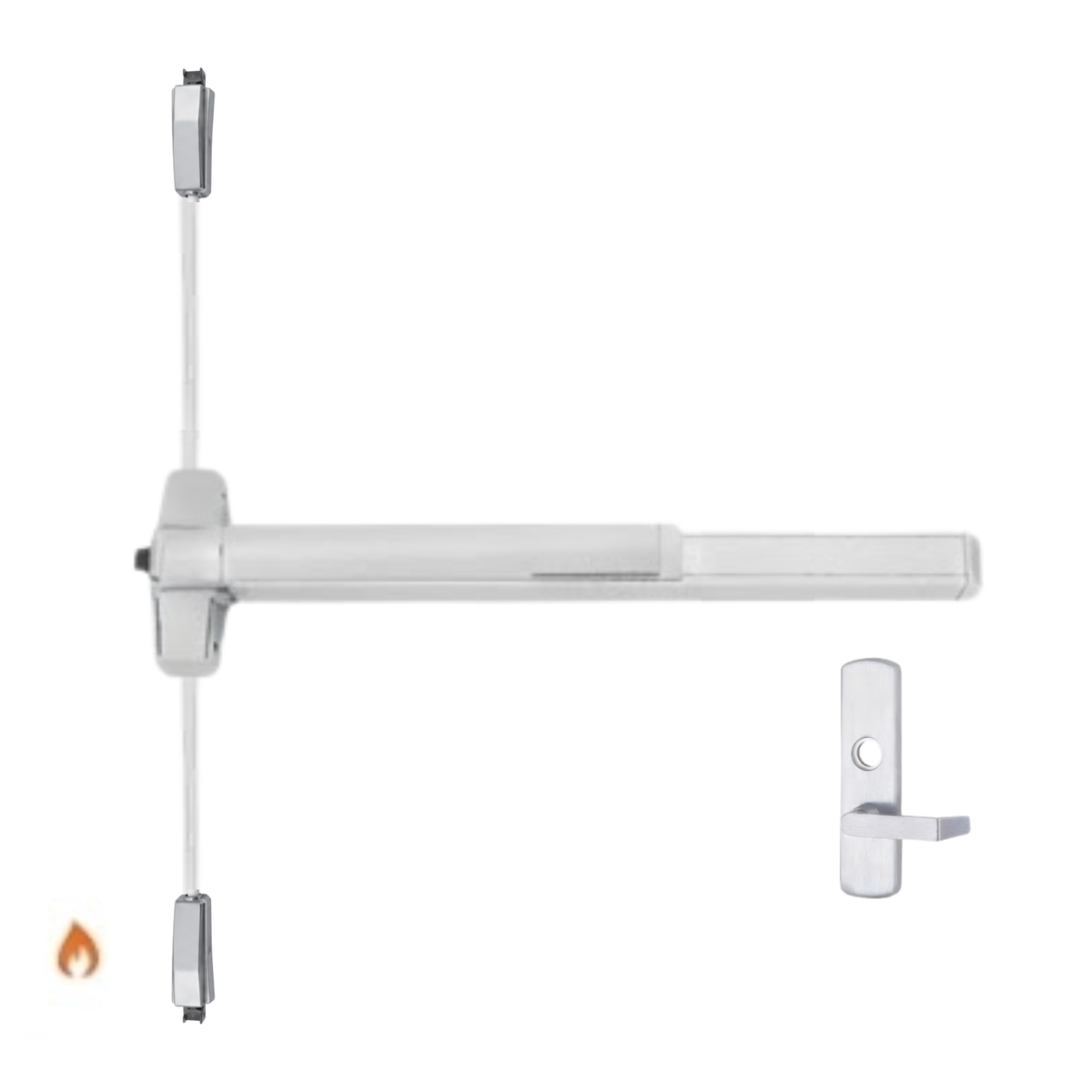

Von Duprin 9857L-F 3-Point Exit Device

The Von Duprin Three-Point Latching Exit Device provides secure and dependable emergency egress for compatible single or double doors. Its surface-mounted vertical rod design combines a centre-case latch with top and bottom latches, securing the door at three separate points.

UL Listed for panic exit hardware, this device is designed for demanding commercial and institutional applications. It includes standard vertical rods and a complete fixing pack for installation on compatible timber or metal doors.

Features

• Three-point latching system for enhanced door security
• Includes centre-case, top and bottom latches
• Surface-mounted vertical rod configuration
• Suitable for compatible single or double doors
• Designed for doors from approximately 711mm to 914mm wide
• Standard rods accommodate doors up to approximately 2134mm high
• Top rod length: approximately 887mm
• Bottom rod length: approximately 800mm
• UL Listed for panic exit hardware
• Right-hand reverse configuration
• 914mm device length
• US32D satin stainless steel finish
• Includes fasteners for compatible 44mm to 57mm thick timber or metal doors
• Includes 325 SNB screws for the top and bottom latches

Available Variants

• VDD20119 – 9857L-F Three-Point Exit Device – RHR – 914mm – US32D Satin Stainless Steel
