  3. Solidcarve PSC 4G External Door
By Corinthian Doors

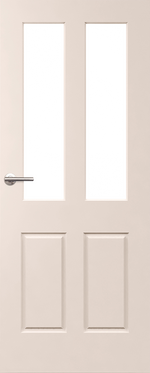

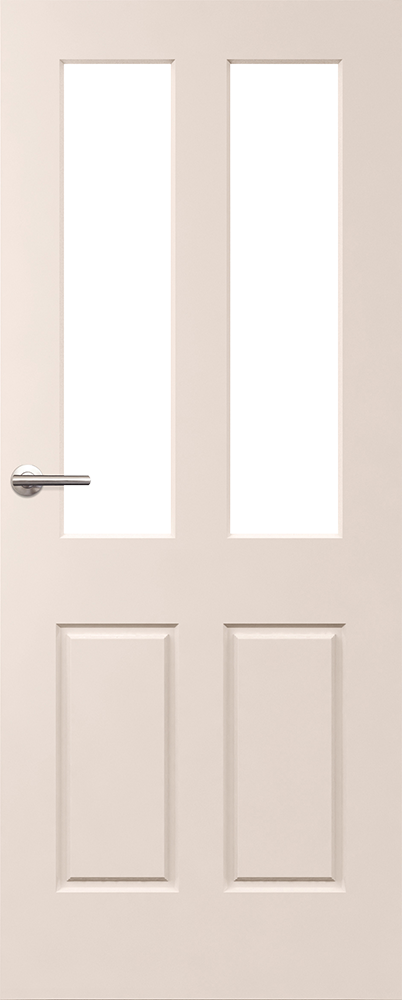

Solidcarve PSC 4G External Door

$711.48 - $842.16
$711.48
$711.48
SKU: PSC-4G-204082040
$711.48
$711.48

With a range of eye-catching deep carved patterns on both sides of the door, the Solidcarve Collection offers a showpiece visual suited to a range of different architectural styles. With angular square corner routing, this Collection is particularly suited to styles defined by traditional charm and relaxed sophistication. This includes the coastal architectural style or the urban farmhouse aesthetic—each of which emphasise subtle flourishes and a tastefully rustic design language.

Doors from this Collection with glass options are solid MDF construction, while non-glass products have a lightweight CoriTech construction. The Solidcarve collection is available in External Primed Skin, ready for painting, or in select grade veneer for staining.

Features:

  • Available with EXP External Primed skins, Veneered skins, or BAL 12.5 certified skins.

Specifications

Door Construction Solid MDF core – PSC 4G, PSC SL 4G (including equivalent veneer design).
Coritech core – PSC 1, PSC 4 (2040 x 820/870 and 2340 x 820 only), all other sizes solid MDF.
Skin EXP External Primed skins, Veneered skins and BAL 12.5 Certified skins.
Rout Profile Square corner rout on both faces.
Trimming Doors – 5mm from top and each stile, 25mm from bottom.
Sidelight – 5mm from top and bottom, 35mm from each stile.
Hinges Doors measuring up to 2040 x 920 require a minimum of 3 hinges.
Doors over and above this size require 4 hinges.
Primed Primed skin, excludes routing, door edges and glazing bead.
Pre-Finishing & Installation Light reflective colours should be used on all doors exposed to direct sunlight. Entrance doors must be installed in weather-protected openings to reduce the effects of weather exposure. Refer to Door Care and Maintenance recommendations. Failure to adhere to these recommendations will void warranty.
BAL Rating BAL 12.5 – Must be specified at time of order.
Approx. Weight Solid MDF – 50kg (Based on 2040 x 820 door).
Coritech core – 35kg (Based on 2040 x 820 door).
Warranty 5 years – Terms and conditions apply.
Note All sizes are nominal and in millimetres.
Door furniture pictured on the doors is sold separately.
All doors depicted are professionally finished. Doors are supplied raw.

Downloads

Installation Guide Corinthian Doors – Installation Guide PDF (PDF)
Care & Maintenance Corinthian Doors – Care & Maintenance PDF (PDF)
Collections Catalogue Corinthian Doors – 2025 Collections Catalogue PDF (PDF)
