SECURE 12-24VDC Electric Mortice & M’Lock Primary Locks – Various Sizes

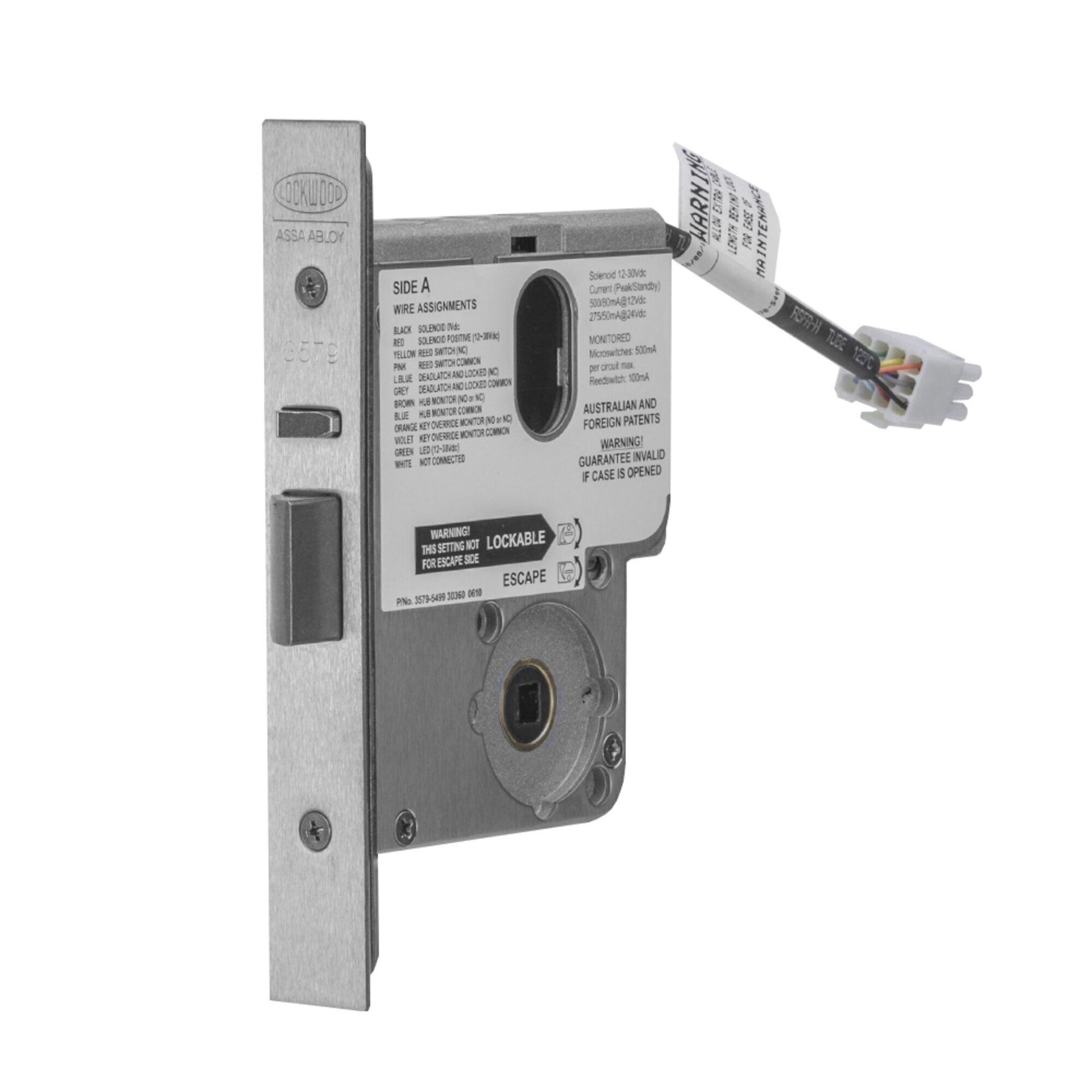

Lockwood 3570 Series Electric Mortice Lock

Designed and manufactured in Australia, the Lockwood 3570 Series Electric Mortice Lock delivers high-performance security for demanding commercial applications. Constructed from high-grade zinc alloy with a stainless steel latch bolt and faceplate, this versatile lock is engineered for seamless integration with electronic access control systems, push buttons, intercoms, key switches, keypads and card readers. Its flexible, on-site configurable design allows a single lock body to cover multiple functions, reducing specification complexity while maintaining superior reliability and compliance.

Features

• Australian designed and manufactured for commercial-grade performance

• High-grade zinc alloy case with stainless steel latch bolt and faceplate

• Suitable for push buttons, intercoms, key switches and electronic access control systems

• One lock design configurable on site for multiple applications

• Available in monitored and non-monitored versions

• Monitoring options include:

  • Dead-latched and locked door position (reed switch)

  • Dual key override monitoring

  • Request to Exit (REX) monitoring

  • LED indication

• Field changeable fail safe / fail secure configuration

• Multi-voltage operation: 12–24V DC

• Suitable for left and right hand doors

• Configurable free lever or locked lever on either side

• Monitoring contacts: normally open and normally closed

• Successfully fire rated up to 4 hours on fire door assemblies to AS1905.1:2005

• Certified to Australian Lock Standard AS4145.2.1993 (S3 Security, D3 Durability when paired with equivalent keying)

• C-Tick certified

• SCEC endorsed:

  • 3570 Series – Intruder resistant areas

  • 3579 Series – Secure areas

Available Variants

• 12–24VDC – 127mm Electric Mortice Primary Lock – No Cylinder (5579ELM0SC)

• 12–24VDC – 60mm Electric Mortice Primary Lock – Non Monitored – No Cylinder (3579ELM0SCM)

• 12–24VDC – 60mm Electric Mortice Primary Lock – No Cylinder (3579ELN0SC)
