  3. Optimum 1PT Bolt & Backset Assemblies
By Lockwood

Optimum 1PT Bolt & Backset Assemblies

$66.74 - $100.08
$66.74
$66.74
SKU: OP30/1LAN/SS
$66.74
$66.74

Lockwood Optimum Hinged Door Mortice Lock

The Lockwood Optimum Mortice Lock range is a versatile and easy-to-install locking solution designed for hinged residential aluminium and timber doors. Built with durability and flexibility in mind, it supports a range of locking configurations and operating modes, making it suitable for modern Australian homes and light commercial applications.

Features

  • Designed for hinged aluminium and timber door applications

  • Easily reversible radiused latch bolt for simple, field-selectable handing

  • Durable internal mechanism with stainless steel faceplate

  • Accepts either 7.6 mm or 8 mm spindle for broad hardware compatibility

  • Latch can be deadlocked by key for added security

  • Short throw (13 mm) and long throw (24 mm) locking bolt options available

  • Supports multi-point locking when used with shoot bolts (4-point configuration)

  • Latch-only (1-point) configuration available

  • Suitable for door thicknesses from 32 mm to 45 mm

  • Compatible with Lock Status Indication when used with Palladium Xtra furniture

  • Multiple operating modes supported, including Passage, Safety and Secure modes

  • Range of compatible strikes available separately to optimise seal compression

Available Variants

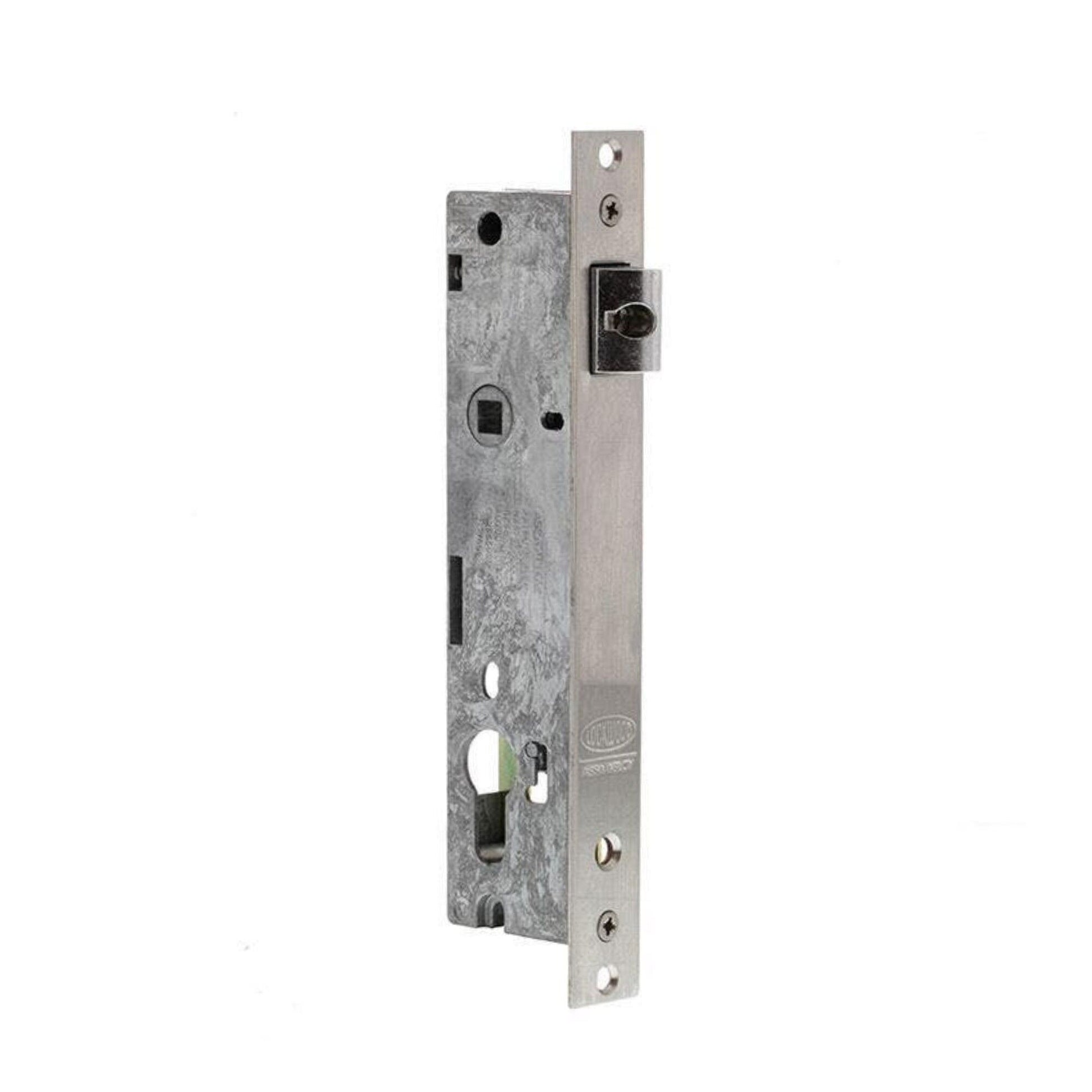

  • 1PT HINGED – 30MM BACKSET – TP (OP30/1LAN/SS)

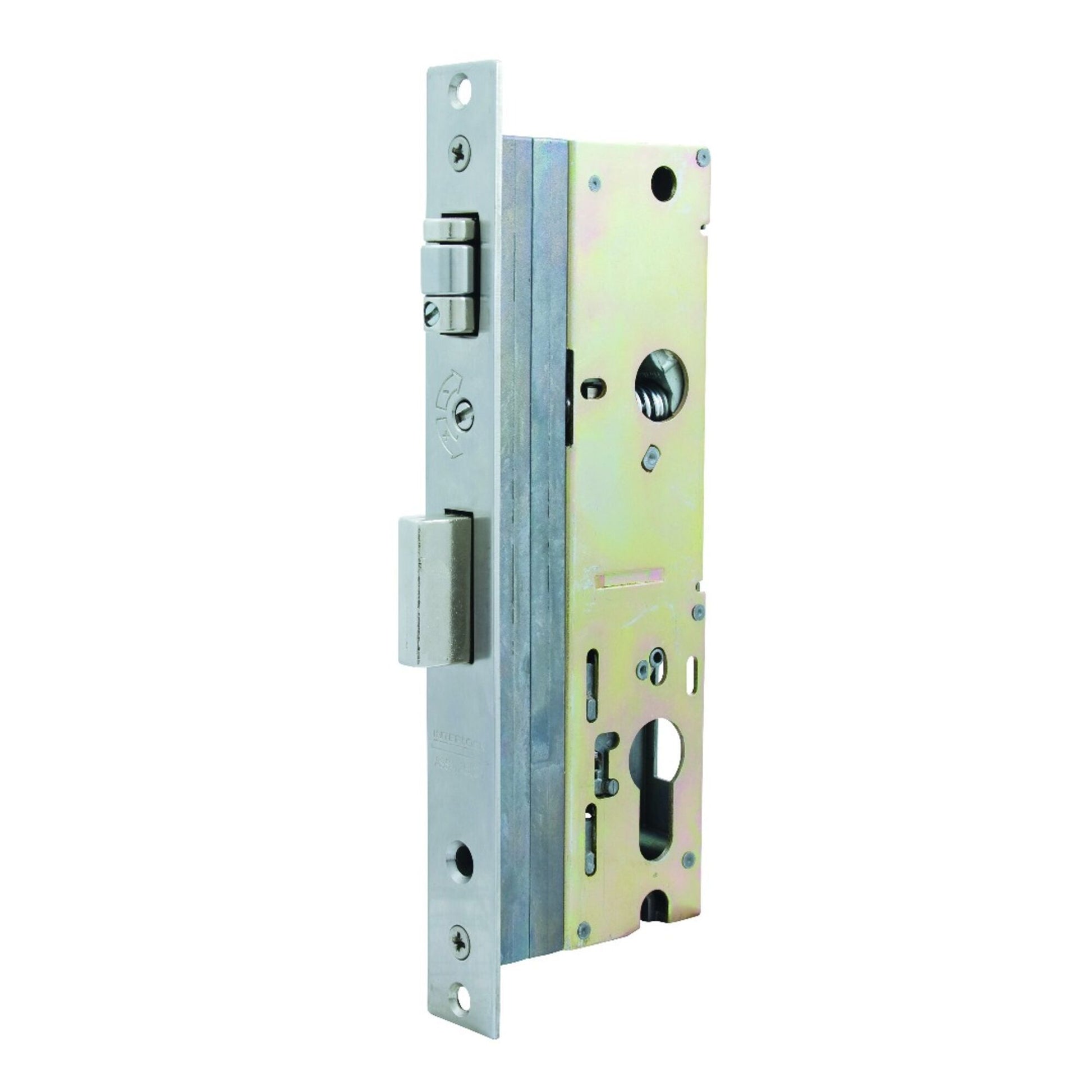

  • 1PT ROLLER – 13MM BOLT – 40MM BACKSET (OP40/1RBS/SS)

  • 1PT ROLLER – 13MM BOLT – 50MM BACKSET (OP50/1RBS/SS)

  • 1PT SLIDING – 13MM BOLT – 30MM BACKSET (OP30/1SDN/SS)

  • 1PT SLIDING – 13MM BOLT – 40MM BACKSET (OP40/1SDN/SS)
