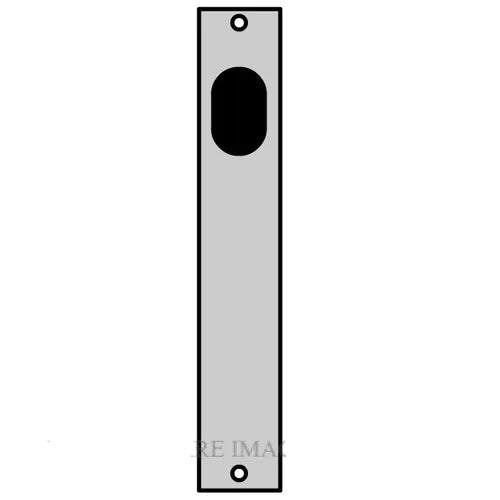

Ns Square End Plate Internal with Cylinder Hole

Legge 5300 Series Narrow Stile Internal Cylinder Plates

The Legge 5300 Series narrow stile internal cylinder plates suit commercial door applications, including retail, educational, government, medical and public buildings. The slim 25 mm plate width is ideal for narrow aluminium or timber stiles.

Features

• Internal plate with cylinder hole.
• Narrow stile design for heavy-duty commercial applications.
• Suitable for narrow aluminium or timber stiles.
• Supplied with fixings.

Specifications

• Plate height: 185 mm.
• Plate width: 25 mm.
• Fixing centres: 148 mm.
• Standard door thickness: 32–50 mm.
• Door thickness with extended screws: 51–75 mm.

Available Variants and Finishes

• L5311C – Chrome.
• L5311S – Satin Chrome.
