Ns Square End Furniture Internal Turn Plate

Legge 5300 Series Internal Turn & Plain Plate Door Furniture

The Legge 5300 Series door furniture features narrow plates and forged brass construction. This selection includes internal turn plates with multiple lever options, a plain plate option and selected variants identified for 990 mortice lock applications.

Standard 5300 Series Specifications

• Material: Forged brass.
• Plate dimensions: 185 x 25 mm.
• Fixing centres: 159 mm.
• Spindle: 7.6 mm.
• Installation: Back-to-back fixing.
• 75 mm fixing screws supplied with the external handle.
• Standard compatibility: Legge 995MF mortice locks with 23, 30 or 38 mm backsets.
• Select a variant marked 990 where required for a 990 application.

Available Variants

• L5306/BPC – Plain Plate – Bergen Lever.
• L5303/12PC – Turn Plate – Lever 12.

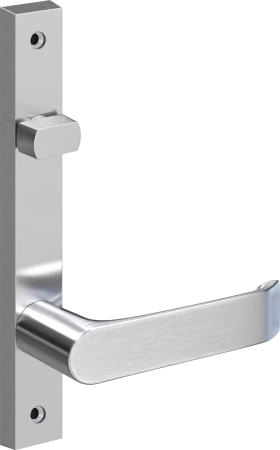

• L5303/12S – Turn Plate – Lever 12.

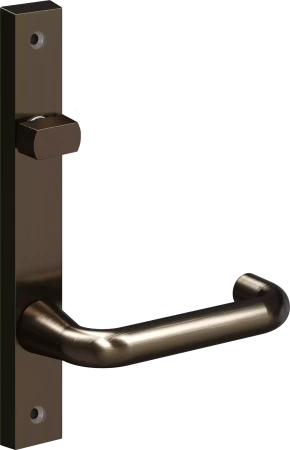

• L5303/29A – Turn Plate – Lever 29.

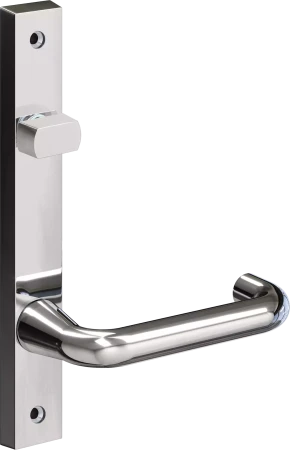

• L5303/29C – Turn Plate – Lever 29.

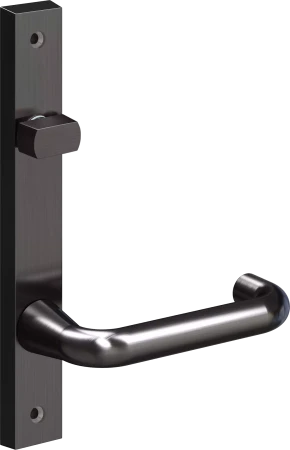

• L5303/29ORB – Turn Plate – Lever 29.

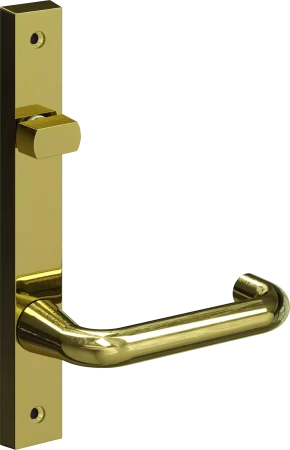

• L5303/29P – Turn Plate – Lever 29.
• L5303/29PC – Turn Plate – Lever 29.
• L5303/29S – Turn Plate – Lever 29.
• L5303/29SB – Turn Plate – Lever 29.

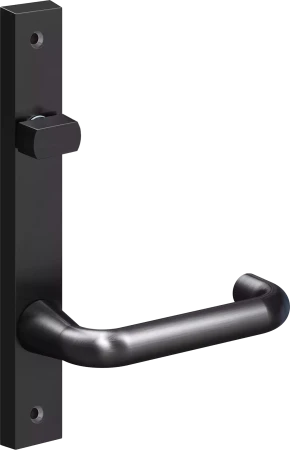

• L5303/29SBC – Turn Plate – Lever 29.
• L5303/52A – Turn Plate – Lever 52.
• L5303/52PC – Turn Plate – Lever 52.

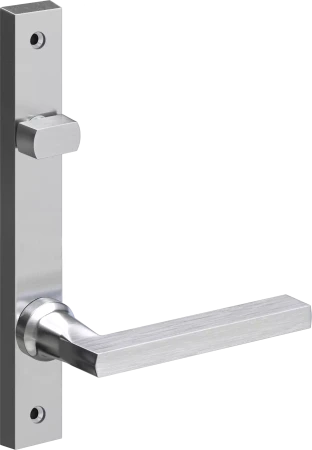

• L5303/52S – Turn Plate – Lever 52.
• L5303/52SB – Turn Plate – Lever 52.
• L5303/56PC – Turn Plate – Lever 56.

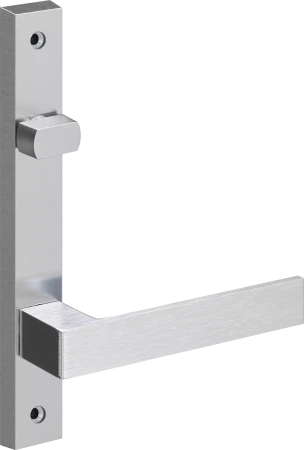

• L5303/57S – Turn Plate – Lever 57.
• L5303/57SBC – Turn Plate – Lever 57.
• L5303/BC – Turn Plate – Bergen Lever.
• L5303/BPC – Turn Plate – Bergen Lever.
• L5303/BS – Turn Plate – Bergen Lever.

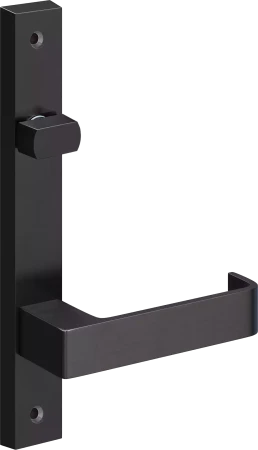

• L5303/BSBC – Turn Plate – Bergen Lever.

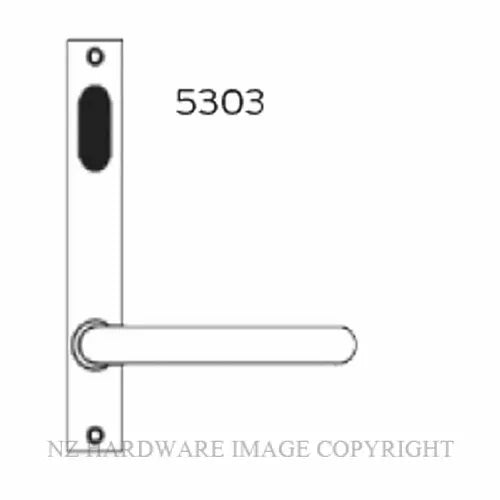

• L5303/12SM – Turn Plate – Lever 12 – 990.

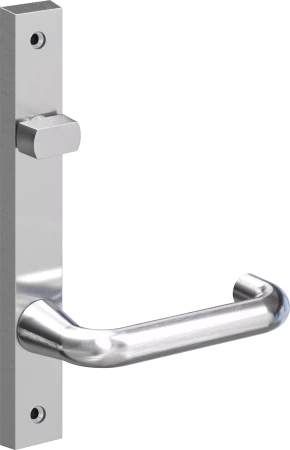

• L5303/29SM – Turn Plate – Lever 29 – 990.
• L5303/57MBM – Turn Plate – Lever 57 – 990.

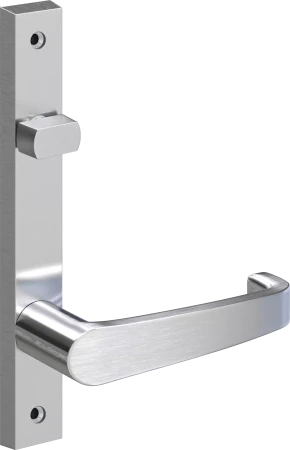

• L5303/62SM – Turn Plate – Lever 62 – 990.
• L5303/BCM – Turn Plate – Bergen Lever – 990.

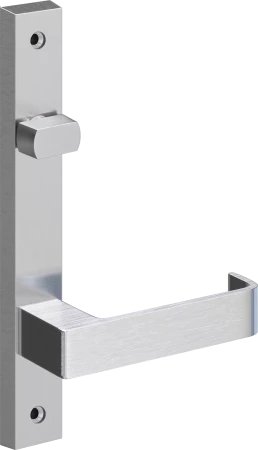

• L5303/BSM – Turn Plate – Bergen Lever – 990.
