Ns Square End Furniture Internal Cylinder Plate

Legge 5300 Series Cylinder Hole Door Furniture & Plate Options

The Legge 5300 Series offers narrow plate door furniture in multiple lever designs, with cylinder hole configurations and separate plate options. The lever furniture features forged brass construction and back-to-back installation.

Specifications – L5301 Lever Furniture

• Material: Forged brass.
• Plate dimensions: 185 x 25 mm.
• Fixing centres: 159 mm.
• Spindle: 7.6 mm.
• Function: Lever with cylinder hole.
• Installation: Back-to-back fixing.
• 75 mm fixing screws supplied with the external handle.
• Standard versions designed for Legge 995MF mortice locks with 23, 30 or 38 mm backsets.
• 990 versions listed separately below.

Available Variants

• L5301/12ORB – Cylinder Hole – Lever 12.
• L5301/12PC – Cylinder Hole – Lever 12.

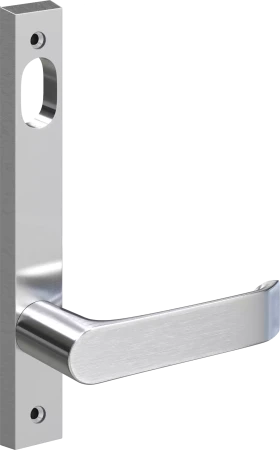

• L5301/12S – Cylinder Hole – Lever 12.

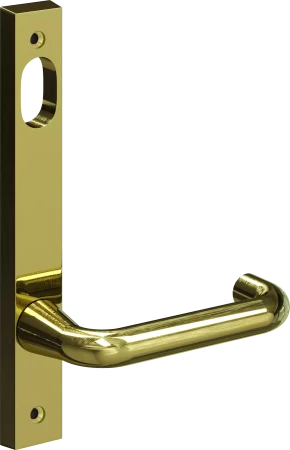

• L5301/29P – Cylinder Hole – Lever 29.
• L5301/29PC – Cylinder Hole – Lever 29.
• L5301/29S – Cylinder Hole – Lever 29.
• L5301/52C – Cylinder Hole – Lever 52.
• L5301/52ORB – Cylinder Hole – Lever 52.
• L5301/52PC – Cylinder Hole – Lever 52.

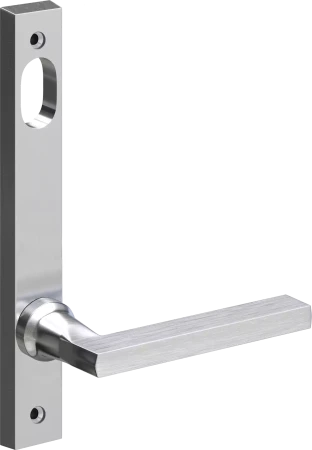

• L5301/52S – Cylinder Hole – Lever 52.
• L5301/52SB – Cylinder Hole – Lever 52.
• L5301/52SBC – Cylinder Hole – Lever 52.

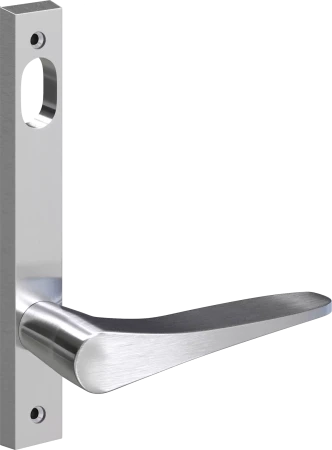

• L5301/56S – Cylinder Hole – Lever 56.

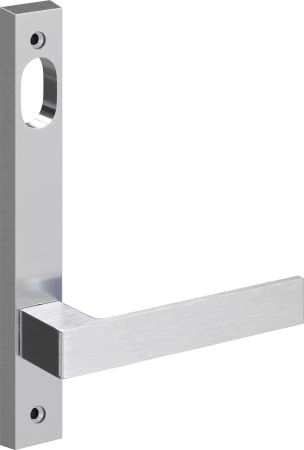

• L5301/57PC – Cylinder Hole – Lever 57.
• L5301/57S – Cylinder Hole – Lever 57.
• L5301/59PC – Cylinder Hole – Lever 59.
• L5301/BC – Cylinder Hole – Bergen Lever.
• L5301/BPC – Cylinder Hole – Bergen Lever.

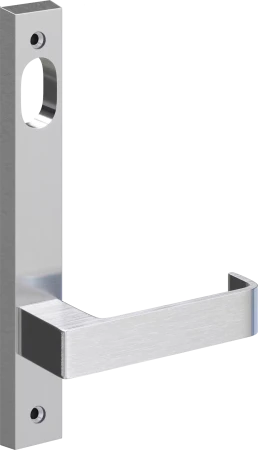

• L5301/BS – Cylinder Hole – Bergen Lever.

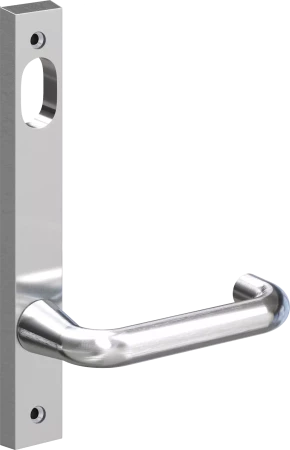

• L5301/29SM – Cylinder Hole – Lever 29 – 990 Version.

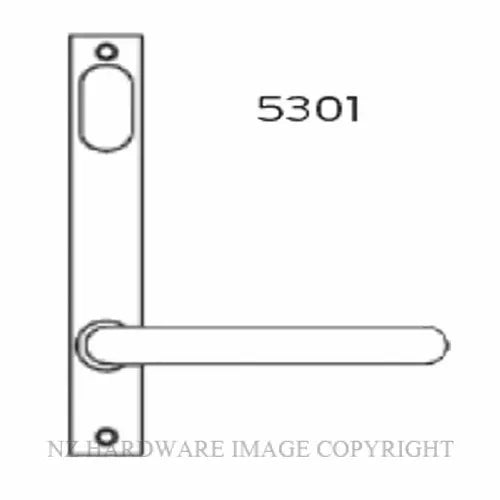

• L5301/62SM – Cylinder Hole – Lever 62 – 990 Version.
• L5301/BSM – Cylinder Hole – Bergen Lever – 990 Version.
• L5301/29PU – Cylinder Hole – Lever 29 – PU Option.

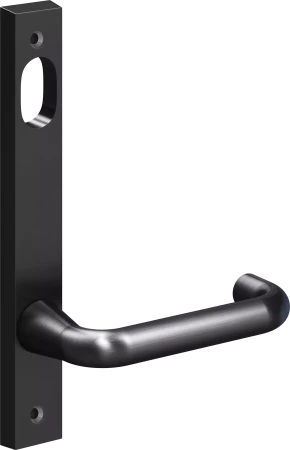

• L5301/29SBC – Cylinder Hole – Lever 29 – SBC Option.

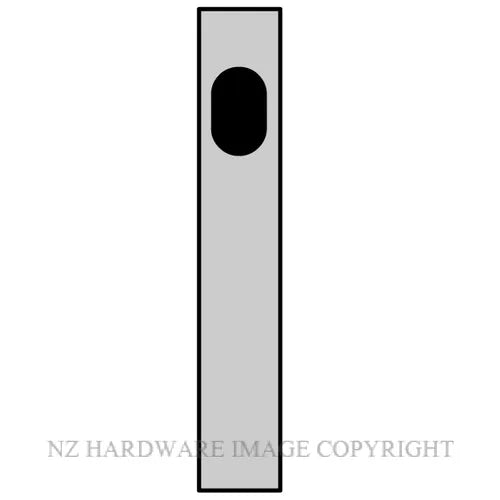

• L5310C – Plate Option – Chrome Finish.
• L5310PC – Plate Option – Polished Chrome Finish.
• L5310S – Plate Option – Satin Finish.
