Manhattan BHAT 4G Internal Door

$793.76 - $1,142.24
$851.00
$851.00
SKU: BHAT-4GC204092035Clr
Manhattan BHAT 4G Internal Door
$851.00
$851.00

Urban sophistication and industrial chic: the Manhattan Collection perfectly captures the feel of tasteful loft or warehouse conversions for a look that's effortlessly stylish in any home. The Collection is available in a range of standard sizes, in swing-hinged, cavity sliding and face-of-wall sliding applications.

Manufactured from sustainably sourced and FSC-certified timber, the Manhattan Collection is available with clear or translucent glass. Each door in the Collection is available with Attica hardware, which is purpose-designed to fit the slim stiles of the Manhattan Collection, at 60mm.

FSC licence code (FSC-C015246).

Features:

  • Quality stile and rail joinery door
  • Looks like steel, made from timber
  • Supplied with black primer for easy painting
  • Attica hardware available to perfectly suit the slim stile profile

Specifications

Door Construction Stile and Rail Joinery door.
Hinge Setup Doors measuring up to 2040 x 920 or 2340 x 820 require a minimum of 3 hinges. Doors above these sizes require 4 hinges. Concealed hinges are only available in 3 hinge applications.
Rout Rails & Arch: 25 and 45mm wide x 9mm deep.
Material Glass clamped within stile and rails.

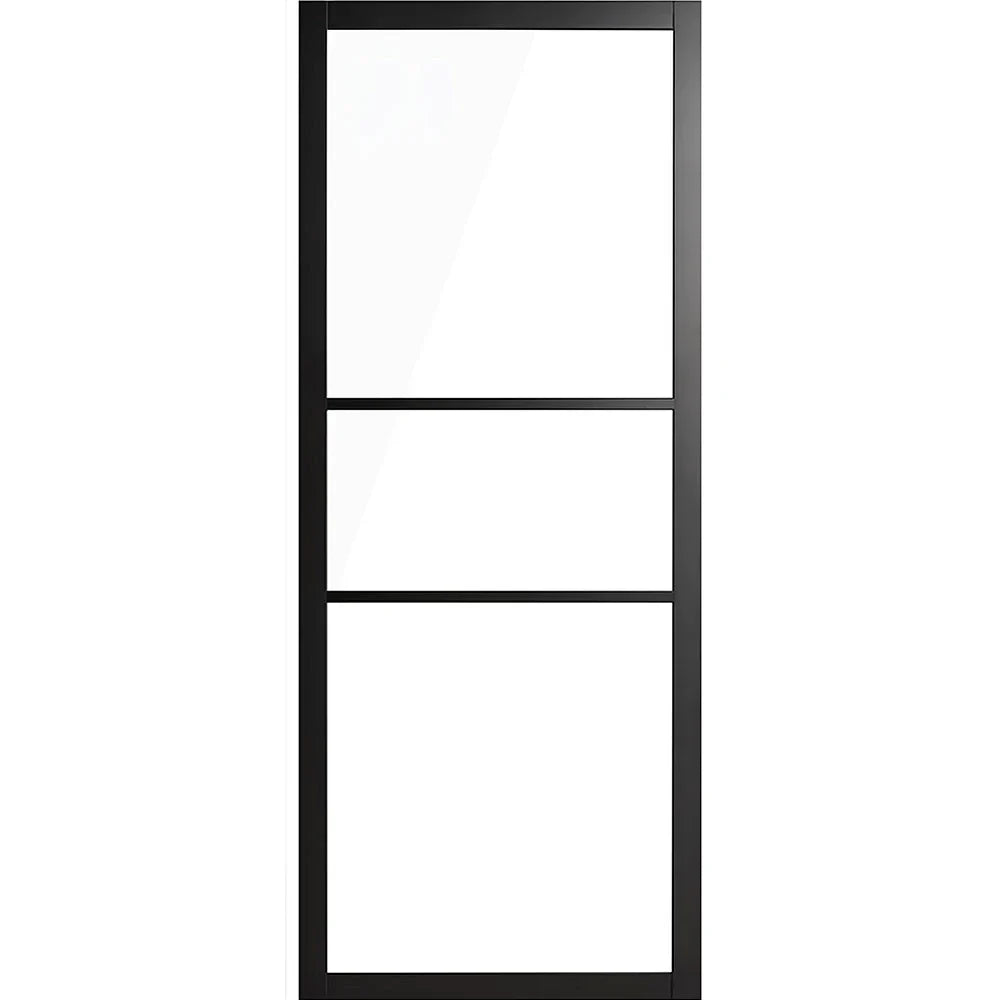

Clear Glazing – 8mm Toughened Clear Glass.

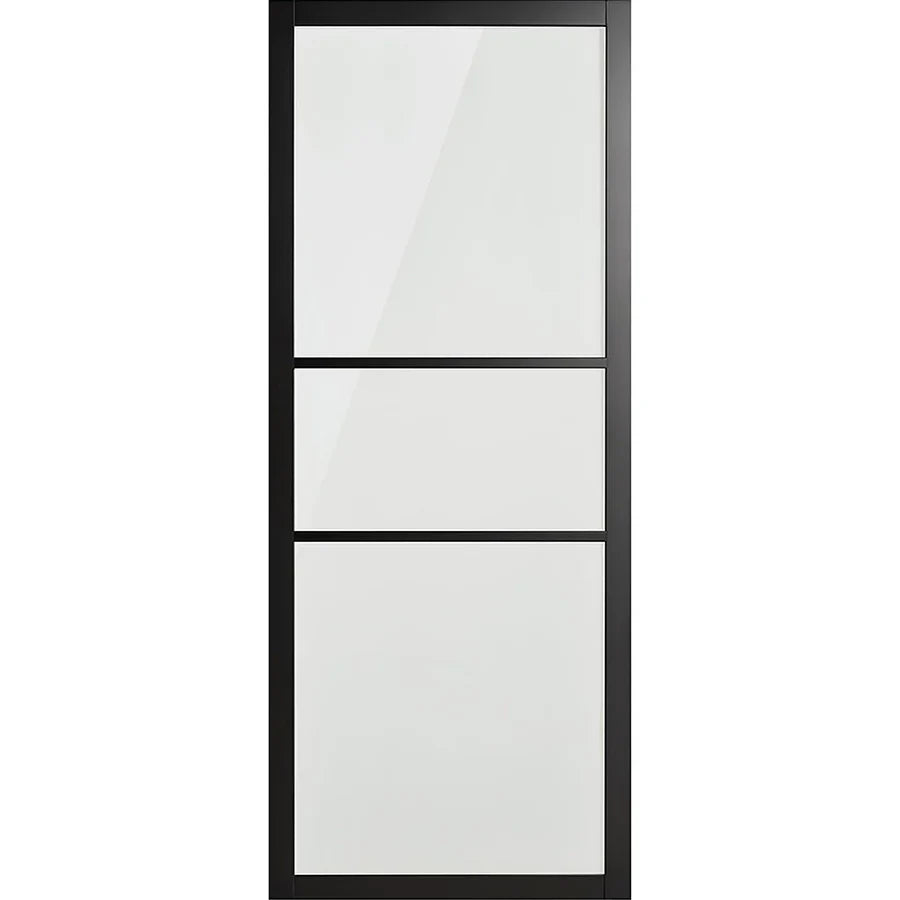

Translucent Glazing – 8.38mm Laminated Translucent Glass.
Complies with AS1288:2006 for the selection and installation of glass in buildings.
Presence of glass motifs on the BHAT 1GC, BHAT 14GC and BHAT 15GC with clear glass as required by the Australian Standard.
Primed Primed skin, excludes, door edges, glass opening rebate and glazing bead.
Primed matt black on all sides and edges including the intermediate rails.
Skin Available in Deco, Manhattan, Attica Hardware, Moda Primed, Moda White Oak, Moda Barn Doors, Motive, Madison, Balmoral, Impressions and Flush Panel designs.
Special Sizes Special sizes can be manufactured within the following size range: 1900–2400 high x 350–1100 wide x 35 thick or 2401–2690 high x 350–920 wide x 35 thick. Doors are primed on the face only. Any machined edges such as the “V” joins and chamfered edges are not primed. Prices and lead-times upon application. These doors will be Made to Order and construction may vary.
Trimming Door – 3mm from top, bottom and each stile.
Warranty 5 years – Terms and conditions apply – refer to Warranty and Terms and Conditions of Sale.
Note All prices exclude GST. All sizes are nominal and in millimetres.
Door furniture pictured on the doors is sold separately.
All doors depicted are professionally finished. Doors are supplied raw.

Downloads

Installation Guide Corinthian Doors – Installation Guide PDF (PDF)
Care & Maintenance Corinthian Doors – Care & Maintenance PDF (PDF)
Collections Catalogue Corinthian Doors – 2025 Collections Catalogue PDF (PDF)
