Magnetic Door Holder Wall Mnt

Product Description

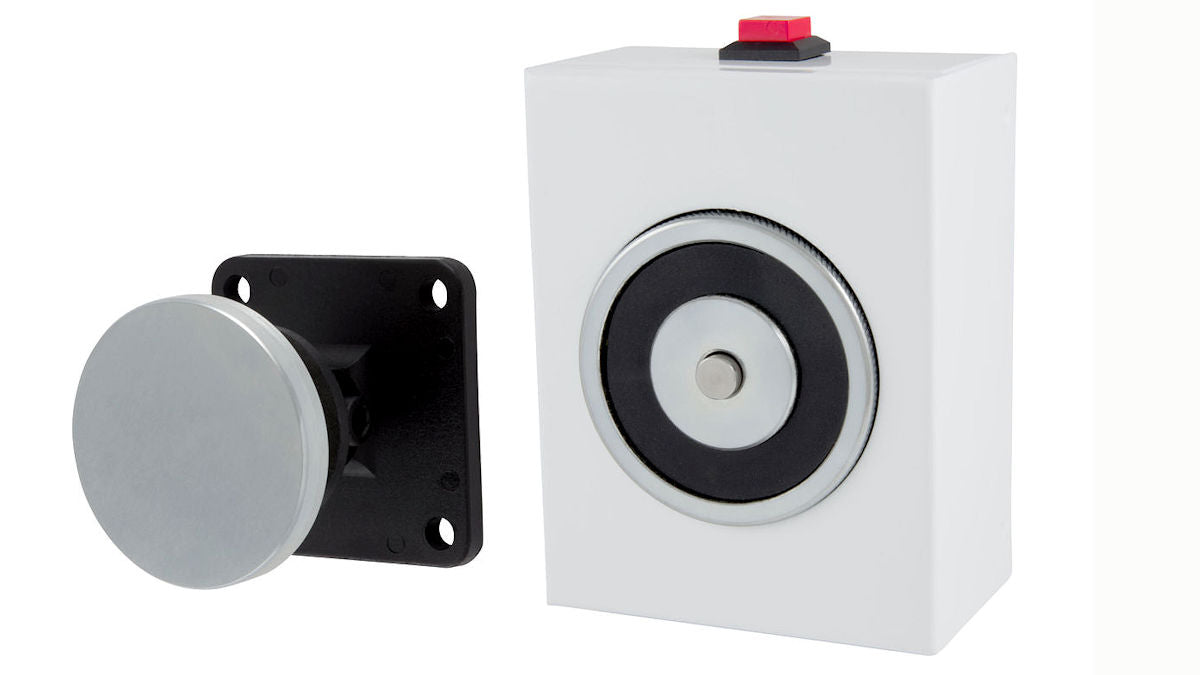

The FSH FDH70 Electro-magnetic Door Holder by Allegion is a compact and reliable solution designed for wall-mounted swing door applications. Engineered for efficient operation, this electromagnetic door holder provides secure door holding with low power consumption and a strong holding force of up to 75kg.

Featuring selectable 12V DC or 24V DC operation, the FDH70 offers flexibility for various installation requirements. The fail-safe design, emergency release button, and test button provide enhanced safety and easy operation, while its near-silent performance makes it suitable for commercial and high-traffic environments.

The compact design allows for discreet installation, with durable construction and dependable performance backed by a 2-year warranty on mechanical and electronic components.

Features

• Electromagnetic door holder for wall-mounted swing door applications
• Strong holding force up to 75kg
• Field selectable 12V DC (100mA) or 24V DC (50mA) operation
• Reliable fail-safe mechanism for enhanced safety
• Includes emergency release button and test button
• Near silent operation for minimal disruption
• Compact design for space-saving installation
• Suitable for commercial and high-traffic door applications
• 2-Year mechanical and electronic warranty

Specifications

• Product Type: Electromagnetic Door Holder
• Mounting: Wall Mount
• Application: Swing Doors
• Holding Force: Up to 75kg
• Voltage: 12V DC / 24V DC Selectable
• Armature Dimensions: 60mm L x 60mm W x 55.5mm H
• Magnet Dimensions: 90mm H x 69.5mm W x 40mm D

Variants

• FSH FDH70 – Electro-magnetic Door Holder
