Legge External Cylinder Plate

The LEGGE 5300 Series Narrow Stile Door Furniture is engineered for demanding commercial applications, making it an ideal solution for exterior and interior doors in retail shopfronts, educational facilities, government buildings, healthcare environments, and other public buildings. Featuring a slim plate design, the 5300 Series is perfectly suited to narrow aluminium and timber stile doors while offering a modern architectural appearance.

Constructed from commercial-grade components, including forged brass levers and extruded brass plates, the 5300 Series delivers exceptional strength and long-lasting performance. A heavy-duty compression spring provides smooth lever operation and a positive return action, preventing lever droop and extending the product's service life. The dual-handed, symmetrical lever design allows handing to be changed on-site in seconds with a simple 180° rotation before installation.

Designed primarily for use with LEGGE 995 Narrow Stile Mortice Locks, the 5300 Series can also be supplied to suit LEGGE 990MF Mortice Locks, providing flexibility across a wide range of commercial door applications.

Features

• Narrow stile door furniture for commercial applications
• Ideal for aluminium and timber narrow stile doors
• Suitable for retail, education, healthcare, government, and public buildings
• Commercial-grade forged brass levers and extruded brass plates
• Heavy-duty compression spring for smooth operation and positive lever return
• Prevents lever droop for extended product life
• Dual-handed design with on-site reversible handing
• Compatible with LEGGE 995 Narrow Stile Mortice Locks
• Can also be supplied to suit LEGGE 990MF Mortice Locks
• Available in multiple premium architectural finishes

Specifications

• Product Type: Narrow Stile Door Furniture
• Series: LEGGE 5300 Series
• Application: Commercial Interior & Exterior Doors
• Handing: Dual-Handed (Reversible)
• Compatible Locks: LEGGE 995 Narrow Stile Mortice Locks, LEGGE 990MF Mortice Locks
• Material: Forged Brass Levers & Extruded Brass Plates
• Available Finishes: Multiple Available

Variants

• L5300/62A – Aluminium Bronze

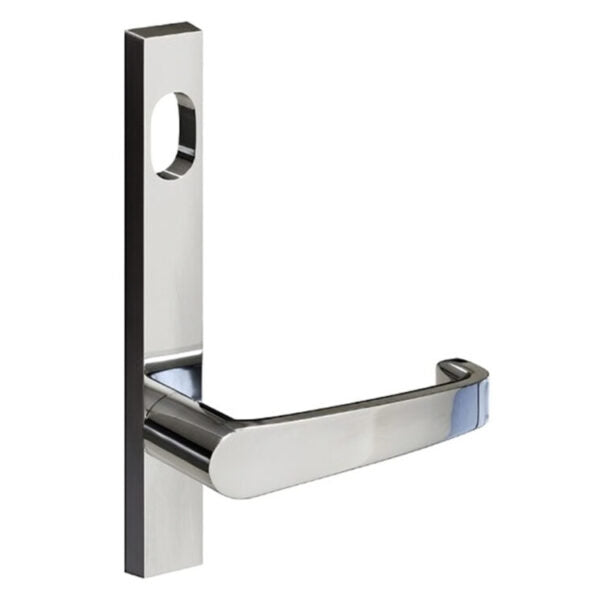

• L5300/62C – Chrome
• L5300/12LEDS – LED – Satin Chrome Plate

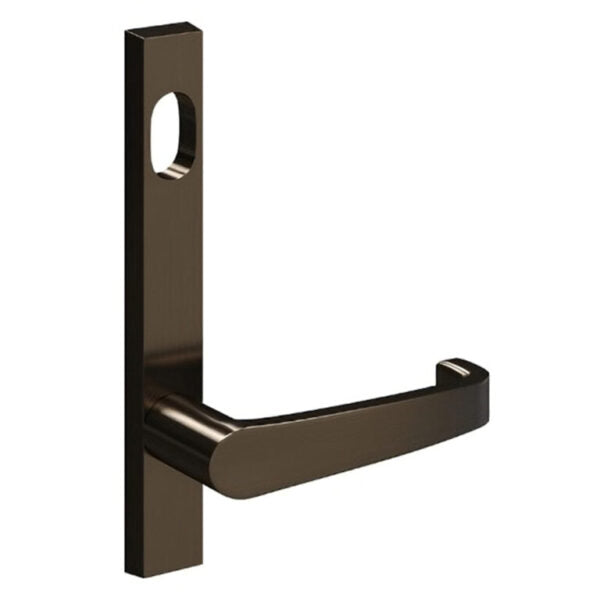

• L5300/62ORB – Oil Rubbed Bronze

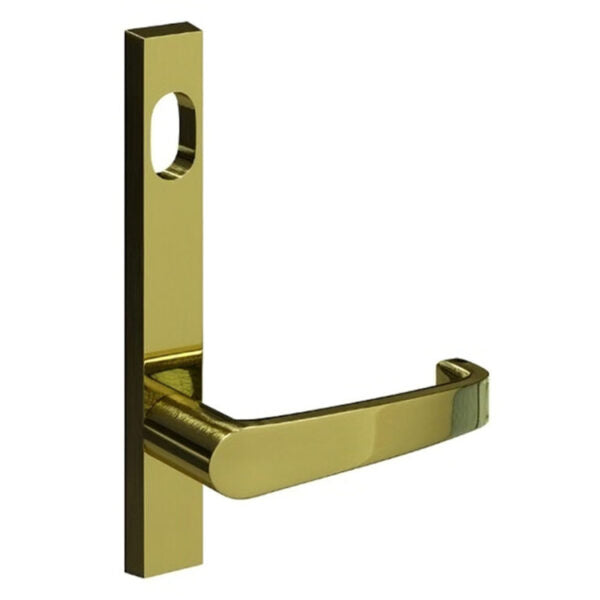

• L5300/62P – Polished Brass

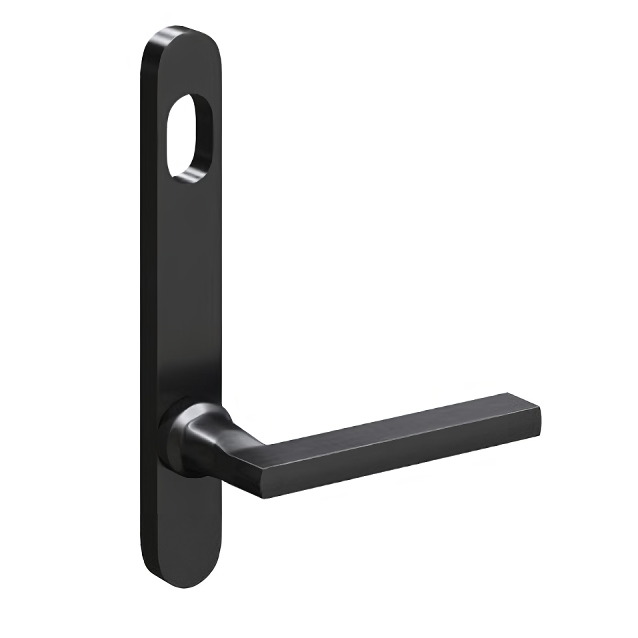

• L5400/52SBC – Satin Black Chrome
• L5300/62PC – Powder Coat
• L5300/62S – Satin Chrome Plate
