Justor DA Spring Hinge for light weight doors

The Justor BIDP120 Double Action Spring Hinge is a neat and reliable solution for non-rebated swing doors that need to return to the closed position automatically. Designed for lightweight doors up to 35kg, it delivers controlled double-action movement without requiring a bulky overhead door closer.

Its face-mounted, slim-profile design makes installation quick and straightforward on timber or aluminium doors. Multiple tension settings allow the closing strength to be adjusted for either a quicker or slower return. Manufactured in Spain, the BIDP120 offers low-maintenance performance, requiring only one drop of oil in the top caps each year.

Features

• Non-rebated double-action spring hinge
• Suitable for lightweight doors up to 35kg
• Automatically returns the door to the closed position
• Adjustable closing strength with multiple tension settings
• Tested for spring resistance over 250,000 cycles
• Durable torsion-spring mechanism
• Suitable for timber and aluminium doors
• Face-mounted for quick and simple installation
• Slim, stylish aluminium profile
• Low-maintenance alternative to an overhead door closer
• Detailed installation instructions included
• Manufactured in Spain
• Backed by a two-year manufacturer’s guarantee

Available Variants

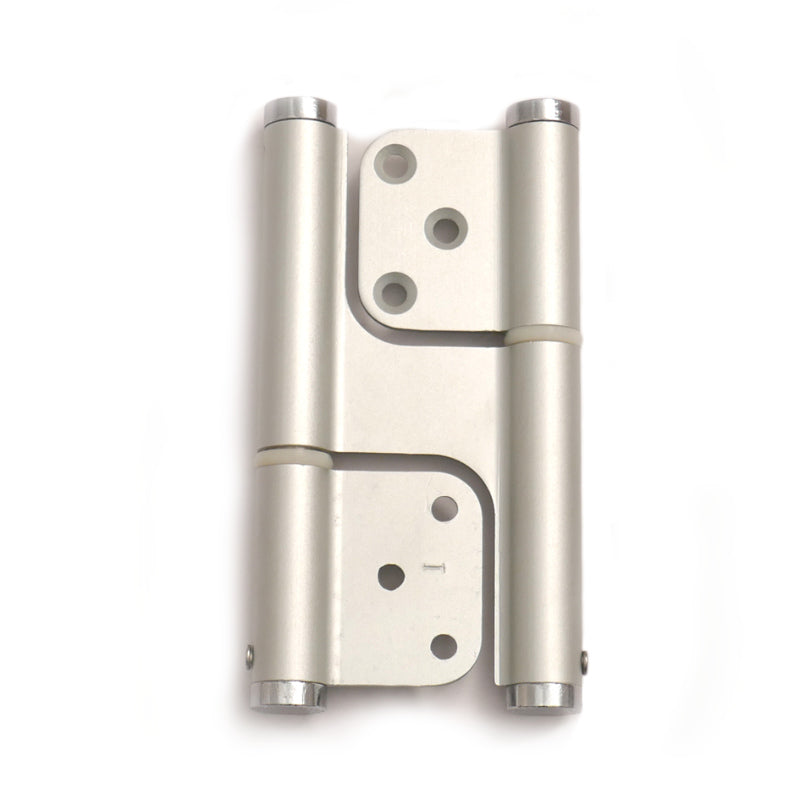

• Anodised Silver (BIDP120AS)

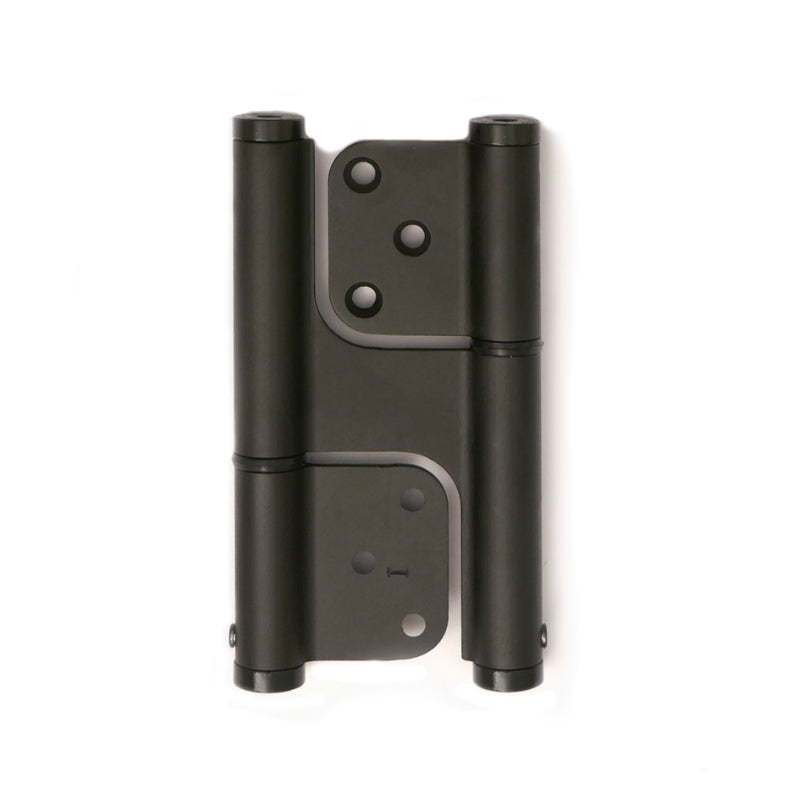

• Anodised Black (BIDP120BLK)

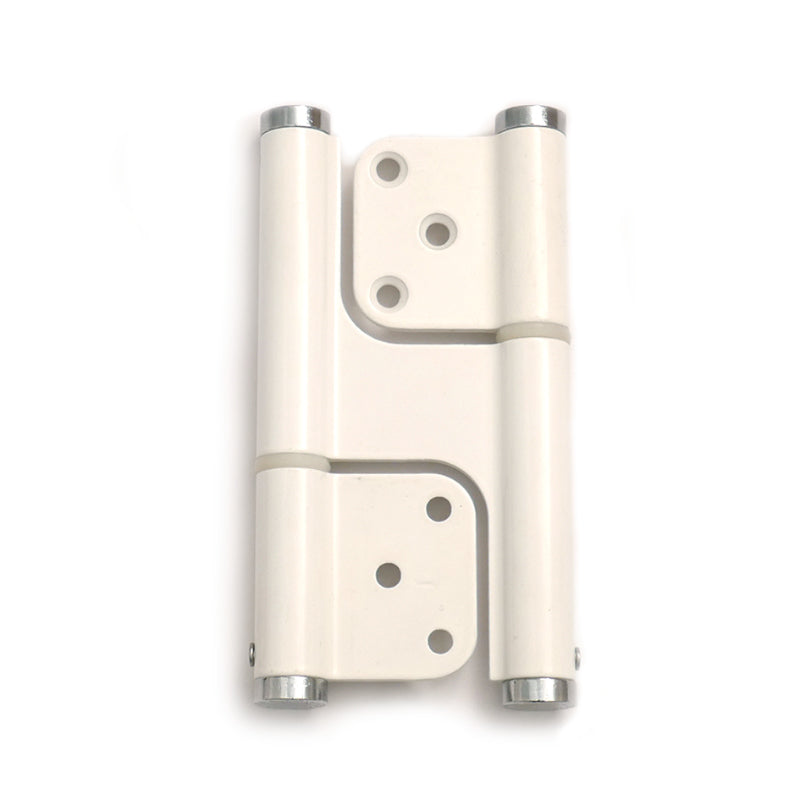

• Powder-Coated White (BIDP120WHT)

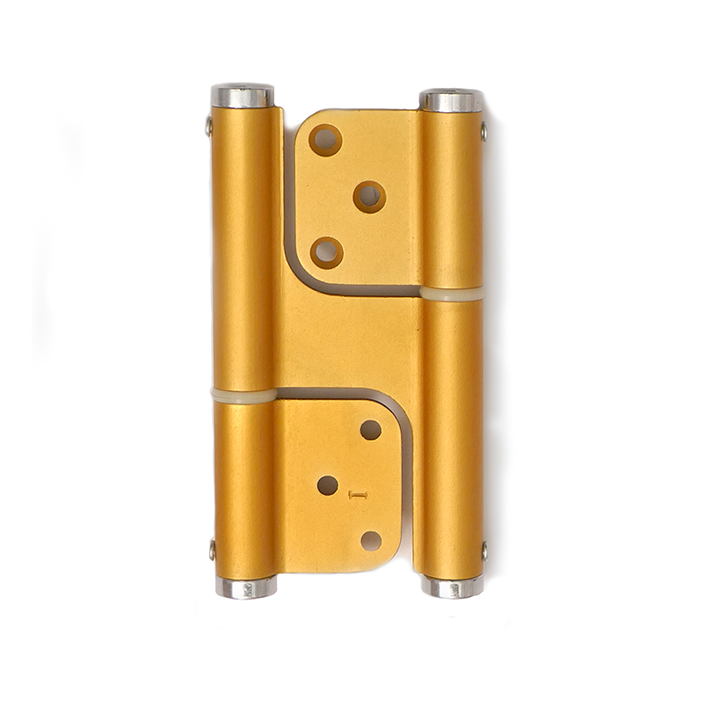

• Anodised Gold (BIDP120AG)
• Anodised Bronze – By Request (BIDP120AB)
