Heavy Duty Aluminium Fast-Fix Hinge

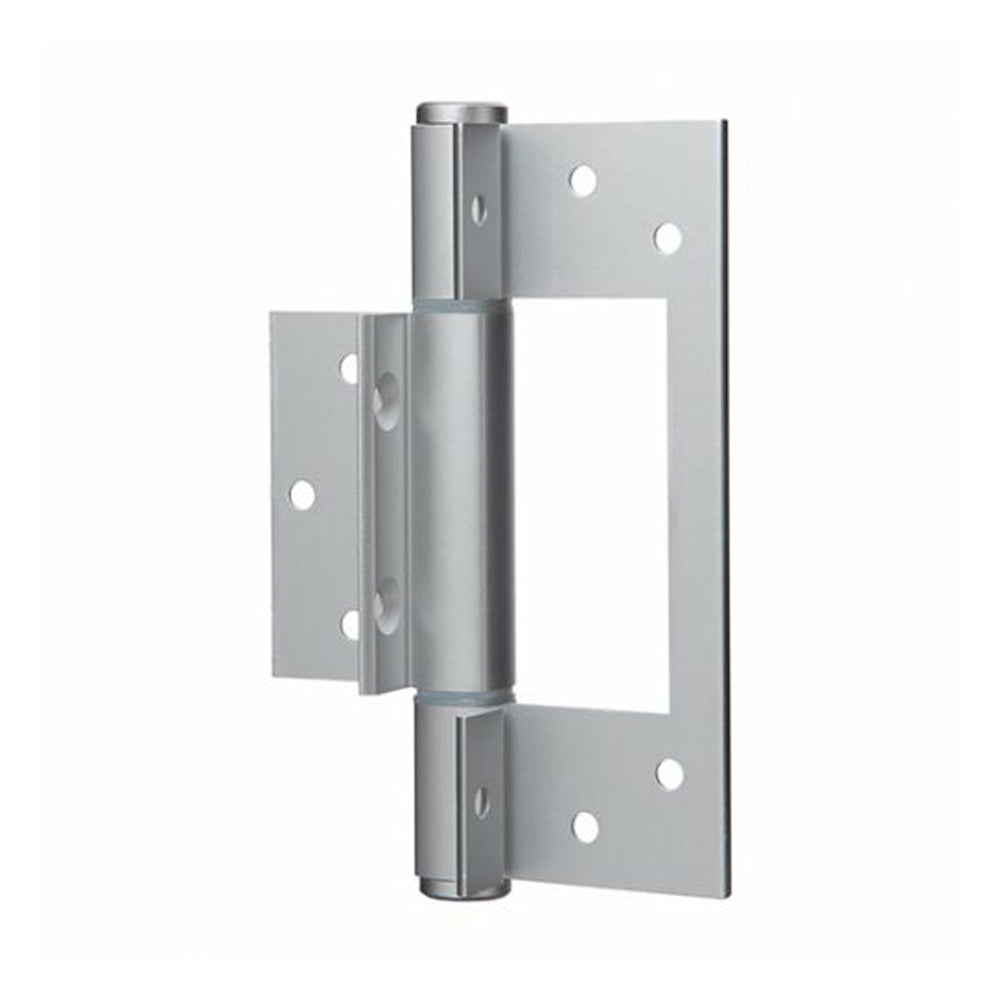

The McCallum A104 Heavy-Duty Aluminium Fast-Fix Hinge is designed for aluminium entrance doors in high-traffic applications. Its two-directional design suits both centre-pocket and front-edge glazing systems, while the built-in wing locator supports fast and accurate installation.

The hinge may also suit selected timber door applications; however, pre-drilling may be required. For timber doors, the A104WF model may be more suitable because its wing fixing holes are positioned approximately 13mm from the door edge.

Features

• Heavy-duty squareline hinge for high-use entrance doors
• Suitable for aluminium doors and selected timber door applications
• Compatible with centre-pocket and front-edge glazing systems
• High-strength T6 aluminium alloy with a minimum tensile strength of 254MPa
• 6mm stainless steel pin with machined chamfers at both ends
• Flanged nylon bushes for smooth operation
• Pressed-in aluminium end caps with an interference fit
• Wing locator assists with fast and accurate fixing
• Two-directional installation
• Fastening screws included
• Pop rivets are not recommended

Specifications

• Model: A104
• Minimum door thickness: 40mm
• Dimension A: 130mm
• Dimension B: 65mm
• Dimension C: 39mm
• Dimension D: 26mm
• Dimension E: 18mm
• Dimension F: 3.3mm
• Included: One hinge with fastening screws

Installation Guide

• Standard doors up to 2040mm high, 820mm wide and 100kg: use three hinges
• When using a door closer, use a minimum of three hinges and position the top hinge as high as practical
• For excessive usage, a fourth hinge may be required
• Oversized doors may require four to five hinges

Please note: Hinge quantity and suitability depend on the complete door specification, usage and installation conditions.
