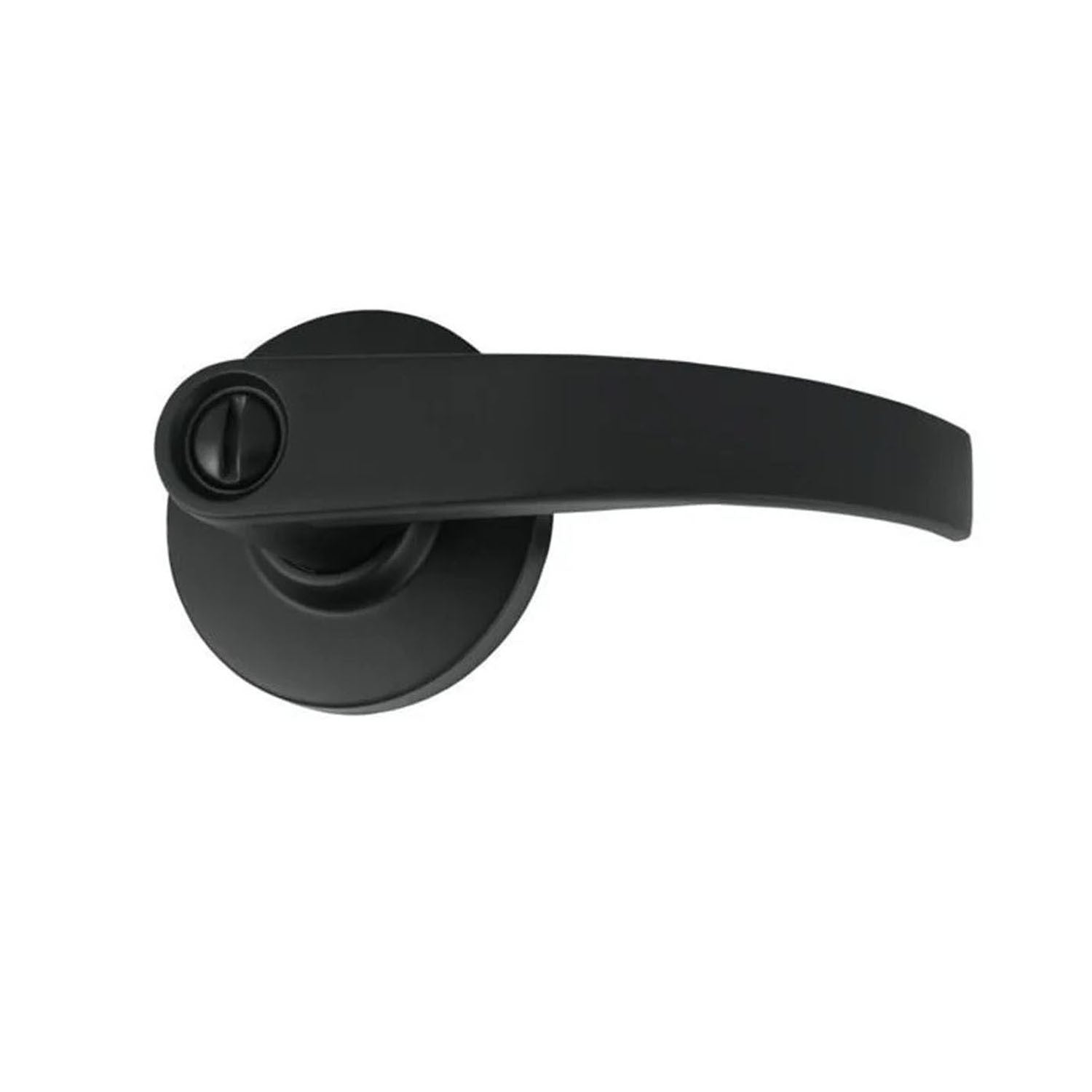

G40S Sparta Privacy Lever Lockset

The Legge G2 Series Sparta Privacy Lever Lockset is designed to provide secure and convenient privacy for bathrooms, bedrooms, and other internal locking applications. Featuring a push-button privacy function, the outside lever is locked by pressing the internal button, while turning the inside lever automatically releases the lock. An emergency release on the outside allows access when required, making it ideal for residential and light commercial environments.

Engineered for durability, the G2 Series is ANSI/BHMA Grade 2 certified, tested to over 400,000 operating cycles, and features a non-handed Sparta lever that complies with AS1428.1-2009 accessibility requirements. Designed for timber or metal doors, the lockset includes a 70 mm backset latch, concealed snap-on rose, stainless steel strikes, spacer rings, and is backed by a 10-year warranty.

Features

• Privacy lever lockset for bathrooms and bedrooms
• Push-button locking with emergency release
• Inside lever releases the lock automatically
• AS1428.1-2009 compliant Sparta lever
• ANSI/BHMA Grade 2 certified
• Tested to over 400,000 operating cycles
• Non-handed design
• Snap-on inside rose conceals mounting plate and screws
• Supplied with D and T strikes, spacer rings, and two keys where applicable
• Suitable for residential, light, and medium-duty commercial applications


Specifications

• Product Type: Privacy Lever Lockset
• Series: G2 Sparta
• Function: Bath / Bedroom Privacy
• Lock Type: Cylindrical
• Door Type: Timber or Metal
• Door Thickness: 35–50 mm (45–60 mm available)
• Backset: 70 mm Standard (60 mm and 127 mm options available)
• Lever Material: Pressure Cast Zinc
• Chassis: Steel, Zinc Dichromate Plated
• Outer Forend: Stainless Steel
• Strike Plate: Stainless Steel
• Compliance: AS1428.1-2009
• Brand: Legge

Variants

• G2SPRIMB – 70 mm – Matt Black
• G2SPRIS – 70 mm – Satin Chrome Plated
