G2SPAS Sparta Passage Key In Lever Lockset

The Allegion Legge G2S Series Sparta Passage Lever Set is designed for internal doors that do not require locking, making it ideal for hallways, living areas, offices, and other passage applications. Featuring a Passage function, both the inside and outside levers remain freely operable at all times, providing smooth and convenient access.

Built for residential, light, and medium-duty commercial applications, the G2S Series features a durable cylindrical lockset with a 75 mm round rose, 70 mm backset, concealed bolt-through fixings, and a non-handed design for easy installation. The passage set is fire rated, AS1428.1 disabled compliant, and manufactured from durable cast zinc and steel for long-lasting performance.

Features

• Passage lever set for internal non-locking doors
• Both inside and outside levers always remain free
• Suitable for hallways, offices, and general internal doors
• Concealed bolt-through fixing with snap-on rose
• Non-handed design
• Durable cast zinc and steel construction
• Fire rated
• AS1428.1 disabled compliant
• Smooth and reliable operation
• Suitable for residential, light, and medium-duty commercial applications

Specifications

• Product Type: Passage Lever Set
• Series: G2S Sparta
• Function: Passage
• Lock Type: Key in Lever (Cylindrical)
• Rose Diameter: 75 mm
• Cutout Diameter: 54 mm
• Backset: 70 mm G2-70DLS Latch (Standard)
• Door Thickness: 35–50 mm
• Material: Cast Zinc / Steel
• Fixing: Concealed Bolt Through
• Handing: Non-Handed
• Fire Rated: Yes
• AS1428.1 Disabled Compliant: Yes
• Brand: Legge

Variants

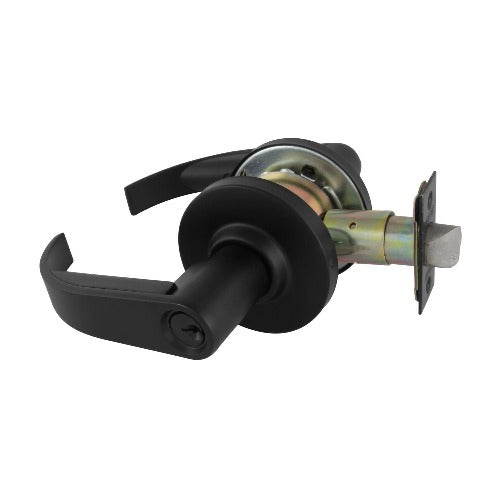

• G2SPASMB – 70 mm – Matt Black

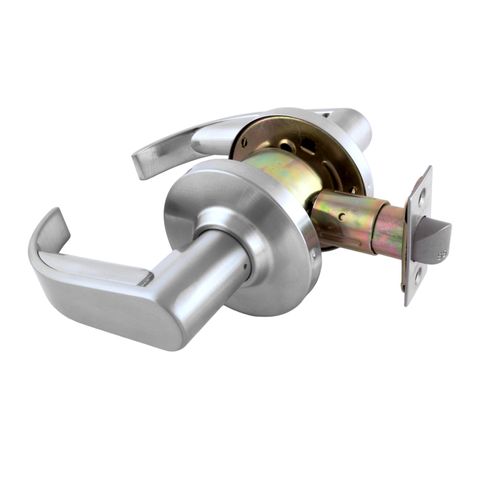

• G2SPASS – 70 mm – Satin Chrome Plated
