G160 Single Cyl Deadboltolt C4

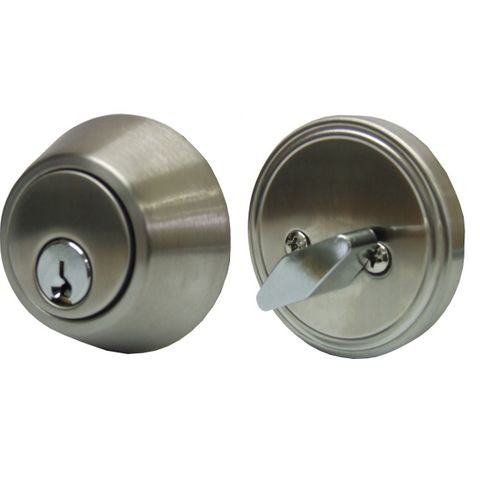

The Allegion Legge G2 Series Single Cylinder Deadbolt provides dependable security for external residential and commercial doors. Featuring a single cylinder design, the deadbolt is operated with a key from the outside and a convenient turn snib from the inside, offering a practical balance of security and ease of use for everyday access.

Manufactured from durable zinc die-cast, the G2 Series deadbolt features an adjustable 60–70 mm backset, a 64.5 mm diameter body, and is suitable for doors 35–50 mm thick. Supplied complete with a cylinder, it delivers reliable locking performance and is available in multiple finishes to complement a wide range of door hardware.

Features

• Single cylinder deadbolt for external doors
• Key operation from the outside with turn snib on the inside
• Suitable for residential and commercial applications
• Durable zinc die-cast construction
• Adjustable 60–70 mm backset
• Supplied complete with cylinder
• Morticed fixing for secure installation
• Smooth and reliable locking operation
• Available in multiple finishes

Specifications

• Product Type: Deadbolt
• Series: G2
• Function: Single Cylinder
• Outside Operation: Cylinder
• Inside Operation: Turn Snib
• Backset: 60–70 mm Adjustable
• Door Thickness: 35–50 mm
• Material: Zinc Die-cast
• Fixing: Morticed
• Comes With Cylinder: Yes
• Diameter: 64.5 mm
• Fire Rated: No
• AS1428.1 Disabled Compliant: No
• Brand: Legge

Variants

• G2BOLTSCSK – Single Cylinder – C4 – Satin Chrome Plate
• G2BOLTSCS – Single Cylinder – C4 – Satin Chrome Plate
