  3. Classic PCL 4G External Door
By Corinthian Doors

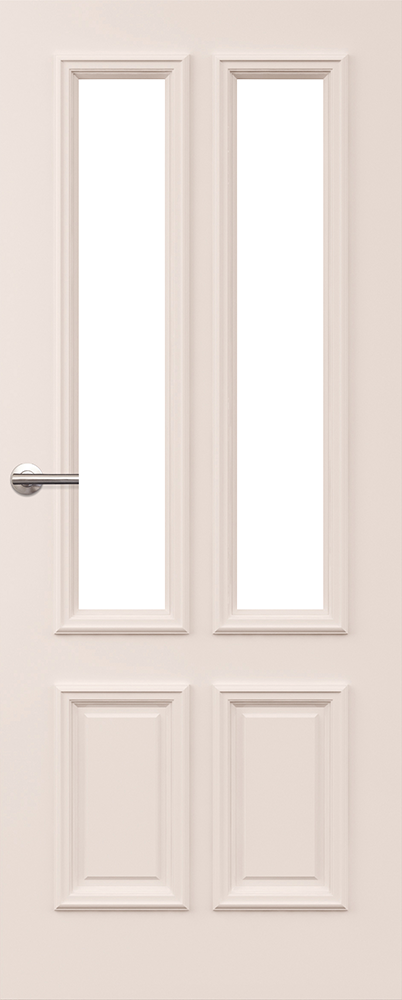

Classic PCL 4G External Door

$803.44 - $943.80
$803.44
$803.44
SKU: PCL 4G204082040
$803.44
$803.44

Sophisticated and elegant with a sense of quiet luxury, the Classic Collection is uniquely crafted to match the grandeur of Hampton's-style homes. Capture the relaxed, easy-going grace of Hamptons living—or equally, the Cape Cod or Australian Coastal architectural styles—with exquisite attention to detail in this collection of 40mm external timber doors.

Specifications

Door Construction Solid MDF core – PCL 1AG, PCL SL 1AG, PCL 4G, PCL SL 4G, VCL 1AG, VCL SL 1AG, VCL 4G, VCL SL 4G (including equivalent veneer design).
Coritech core – PCL 2, PCL 4 (2040 x 820/870 and 2340 x 820 only), VCL 2, VCL 4 (2040 x 820 only). All other sizes solid MDF.
Skin EXP External Primed skins, Veneered skins and BAL 12.5 Certified skins.
Rout Profile Square corner rout on both faces.
Trimming Doors – 5mm from top and each stile, 25mm from bottom.
Sidelight – 5mm from top and bottom, 35mm from each stile.
Glazing Complies with AS1288:2006 for the selection and installation of glass in buildings. Glass pattern direction is oriented to the longest length of glass opening or design direction.
Hinges Doors measuring up to 2040 x 920 require a minimum of 3 hinges.
Doors over and above this size require 4 hinges.
Primed Primed skin, mouldings and glazing bead, excludes routing and door edges.
Pre-Finishing & Installation Light reflective colours should be used on all doors exposed to direct sunlight. Entrance doors must be installed in weather protected openings to reduce the effects of weather exposure. Refer to Door Care and Maintenance recommendations. Failure to adhere to these recommendations will void warranty.
BAL Rating BAL 12.5 – Must be specified at time of order.
Approx. Weight Solid MDF – 50kg (Based on 2040 x 820 door).
Coritech core – 35kg (Based on 2040 x 820 door).
Warranty 5 years – Terms and conditions apply.
Note All sizes are nominal and in millimetres.
Door furniture pictured on the doors is sold separately.
All doors depicted are professionally finished. Doors are supplied raw.

Downloads

Installation Guide Corinthian Doors – Installation Guide PDF (PDF)
Care & Maintenance Corinthian Doors – Care & Maintenance PDF (PDF)
Collections Catalogue Corinthian Doors – 2025 Collections Catalogue PDF (PDF)
