Broad Butt Lift-Off Hinge

The Legge Broadbutt Lift Off Door Hinge is designed for inward-opening doors and is a practical solution for access into fully enclosed sanitary compartments. Its lift-off design consists of two parts, allowing the door to be removed without needing to open it.

Made from 304 stainless steel, the hinge is available in left-hand and right-hand configurations and multiple finishes.

Features

• Lift-off hinge design
• Suitable for inward-opening doors
• Allows door removal without opening the door
• Suitable for sanitary compartment applications
• Height: 100mm
• Width: 75mm
• Thickness: 2.5mm
• Available in left-hand and right-hand configurations

Available Variants

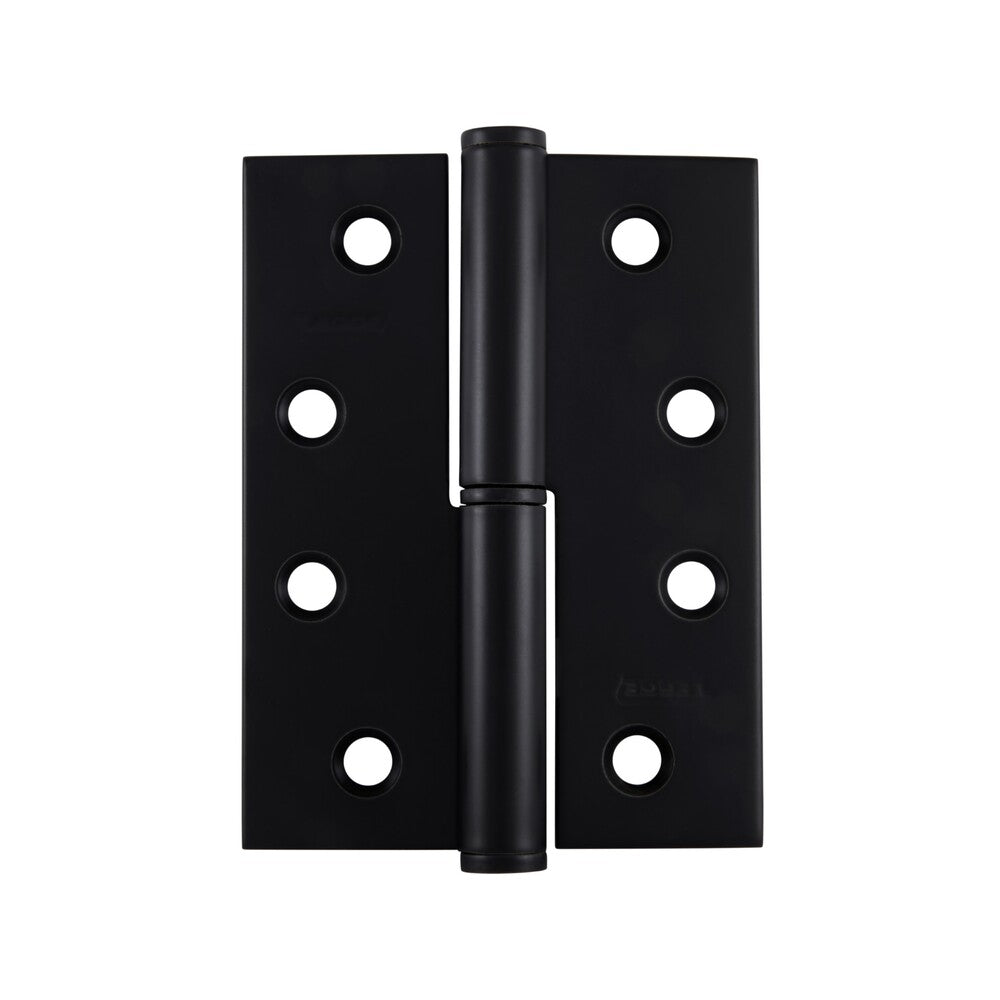

• 100 × 75mm – Left Hand – L13211MB-01-LH
• 100 × 75mm – Right Hand – L13211MB-01-RH

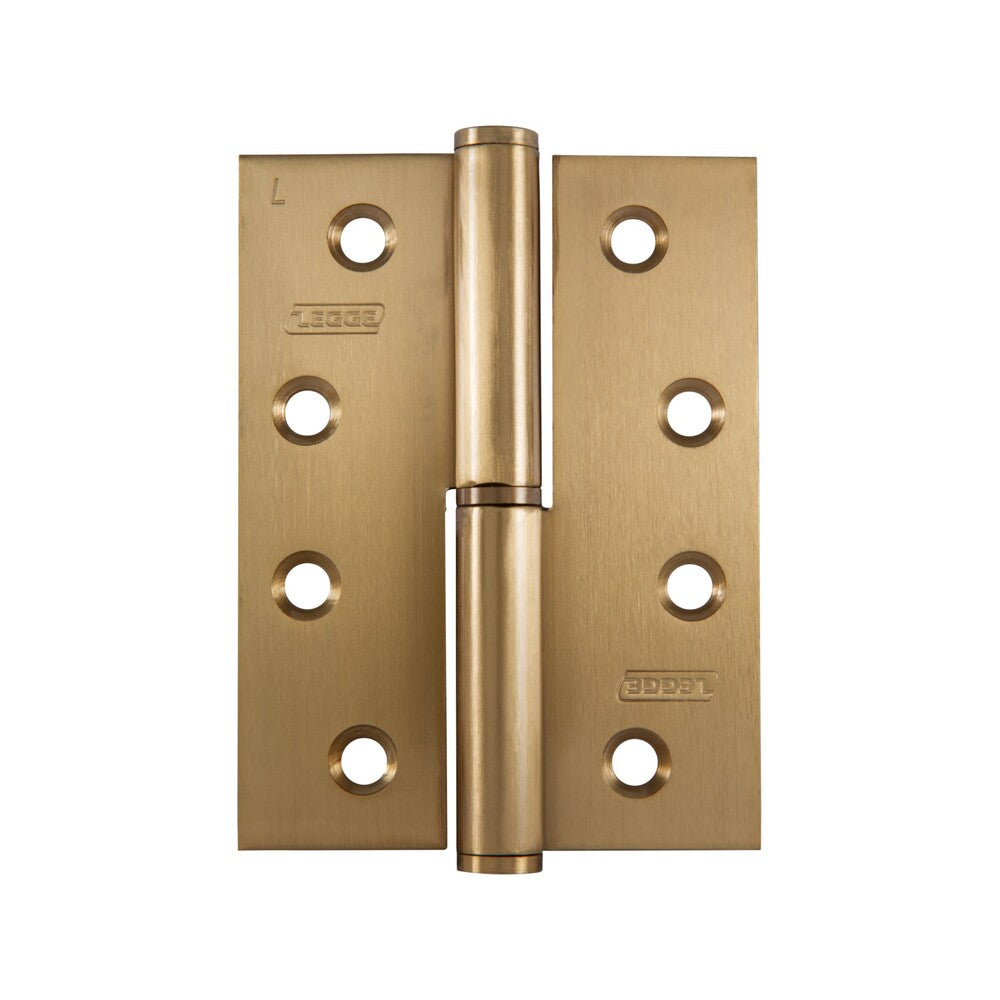

• 100 × 75mm – Left Hand – L13211SB-01-LH
• 100 × 75mm – Right Hand – L13211SB-01-RH

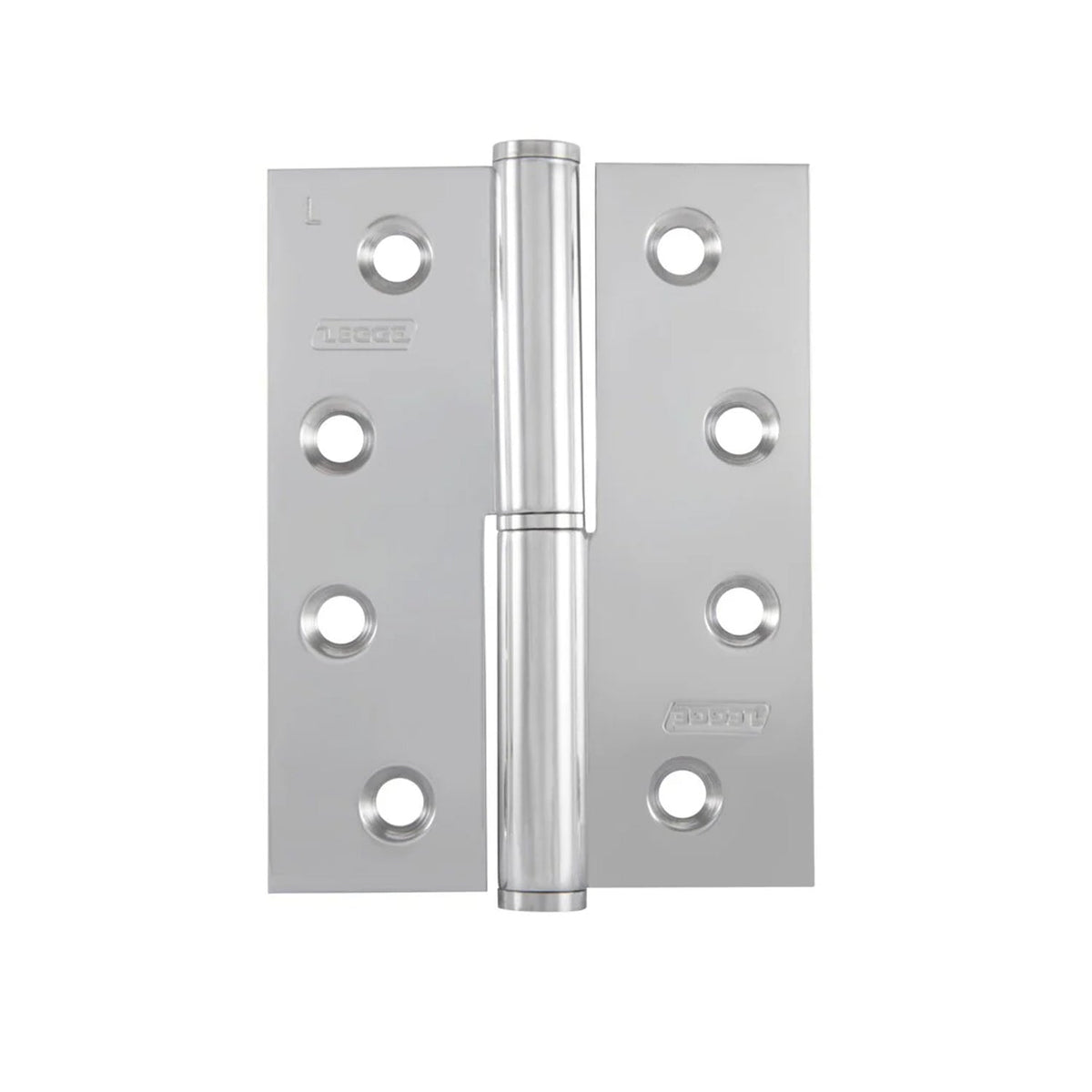

• 100 × 75mm – Left Hand – L13211SSS-01-LH
• 100 × 75mm – Right Hand – L13211SSS-01-RH
