Briton 7500 Series Floor Spring Components

The Briton 7500 Series Floor Spring Components range is designed to support heavy-traffic pivoting door applications. The range includes floor springs, pivot sets, straps, cover plates and other components for compatible Briton 7500 Series door systems.

The Briton 7500 Series Floor Spring features a high-strength cast iron body with adjustable spring strength from size 3 to 6. It is suitable for timber, metal and tempered glass doors up to 300kg and provides adjustable closing and latching speeds for reliable door operation.

Features

• Suitable for heavy-traffic pivoting door applications
• Dual-action, non-handed floor spring
• High-strength cast iron construction
• Adjustable spring strength from size 3 to 6
• Suitable for doors up to 300kg
• Independent closing and latching speed adjustment
• Tested to 500,000 cycles
• Concealed adjustment screws to help prevent tampering
• Floor spring body adjustable for width, length and height alignment
• Stainless steel cover options available
• Optional interchangeable spindles available
• 10-year warranty

Available Variants

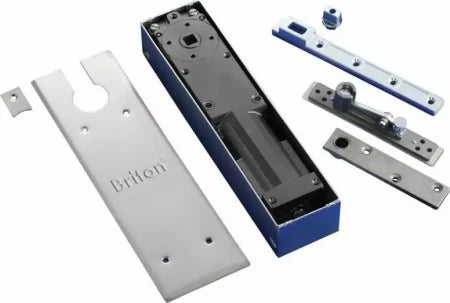

• B7500 – Floor Spring
• B7500/90 – Floor Spring

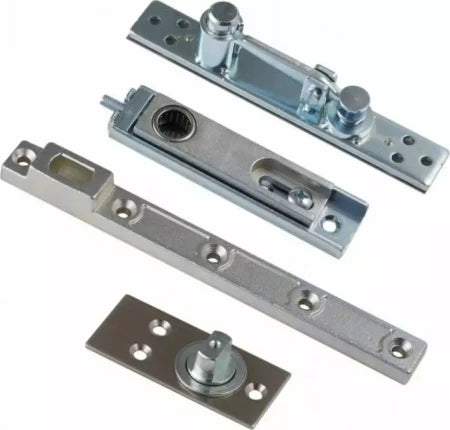

• B7500PS – Heavy Duty Pivot Set
• B7500BS – Bottom Strap
• B7500CP-SSS – Cover Plate
• B7500TP – Top Pivot Set
• B7500CP-PC – Cover Plate – Polished Chrome
