Briton-1120 Door Closer System

The Briton 1120 Series is a slimline, non-handed door closer range designed for commercial interior and exterior wooden and metal doors. The range includes adjustable door closers, track closers, hold-open options, arms and mounting accessories to suit different installation requirements.

The door closer body is constructed from pressure die-cast aluminium with a steel rack and pinion mechanism. Selected models provide adjustable backcheck, closing and latching control for reliable door operation.

Features

• Slimline door closer design
• Suitable for commercial interior and exterior doors
• Suitable for wooden and metal doors
• Universal, reversible and non-handed operation
• Pressure die-cast aluminium closer body
• Steel rack and pinion mechanism
• Selected models feature adjustable backcheck
• Independent adjustment for closing and latching speeds
• Tested to 500,000 cycles
• Fire resistance tested in accordance with AS1905.1
• Track, hold-open and standard arm options available
• Multiple finishes and mounting accessories available

Available Variants

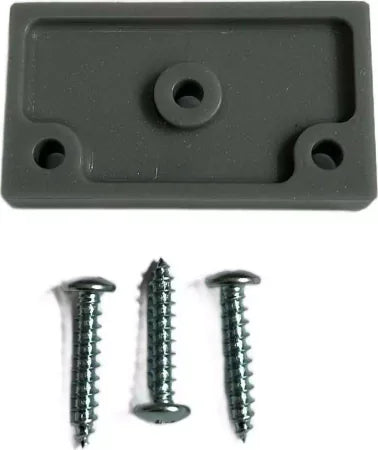

• PA Spacer – B1120-30-SR
• Flat Form Arm – Matt Black – B1120B-MB

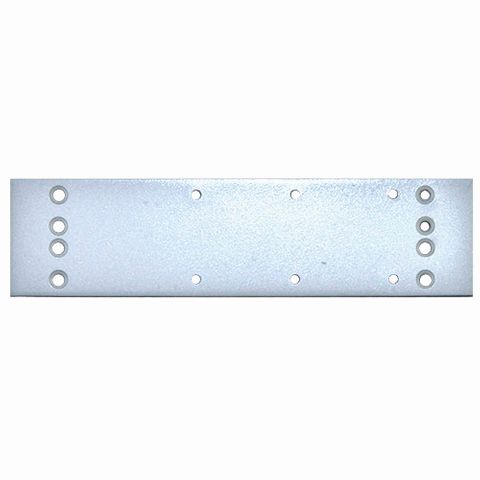

• Adaptor Plate – Aluminium – B1120-AP

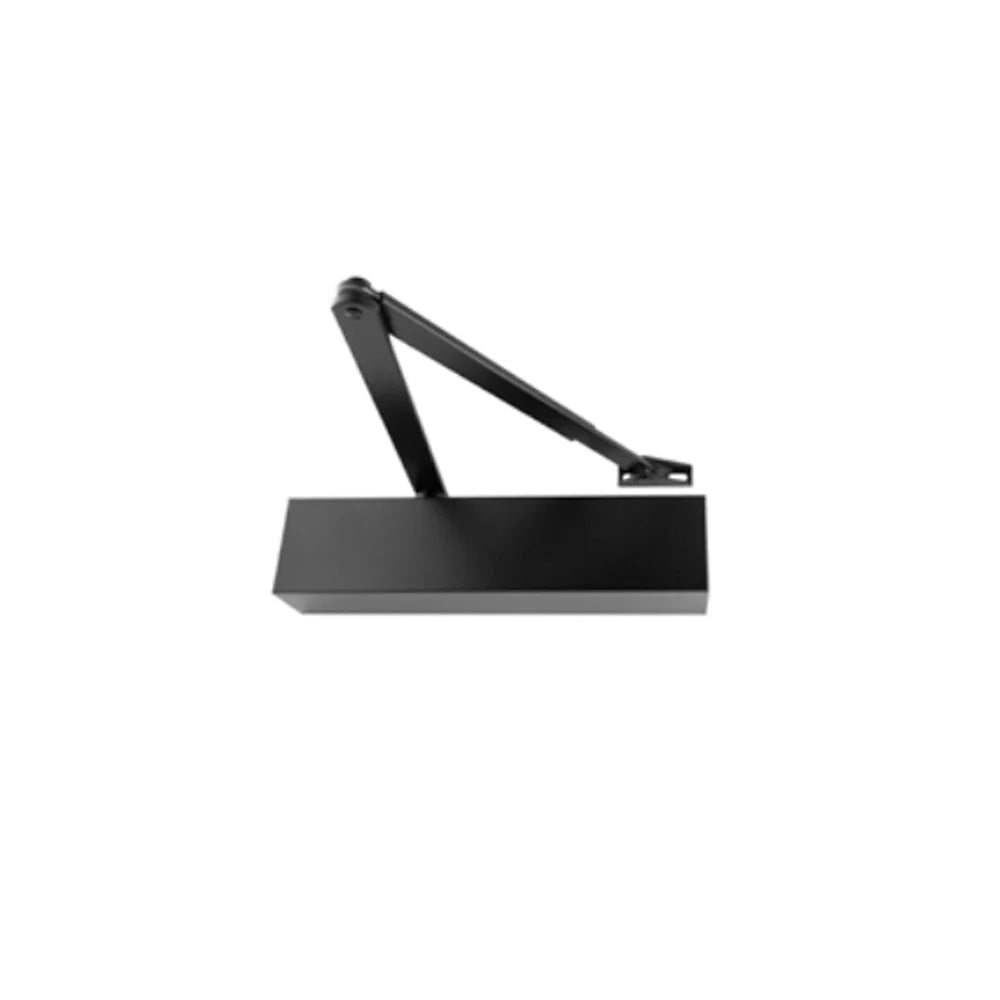

• Backcheck Adjustable Closer – B1120B-C-MB
• Backcheck Adjustable Door Closer 2-Stage – B1120B-SE
• Backcheck Adjustable Door Closer – Powder Coated – B1120B-C-PC

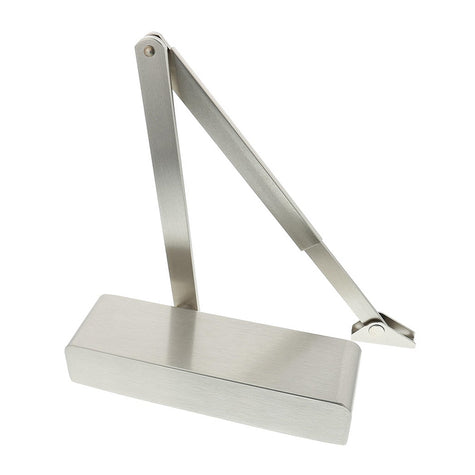

• Backcheck Adjustable Door Closer – B1120B-C-SSS
• Backcheck Track Closer – Adjustable – B1120BT-C-MB

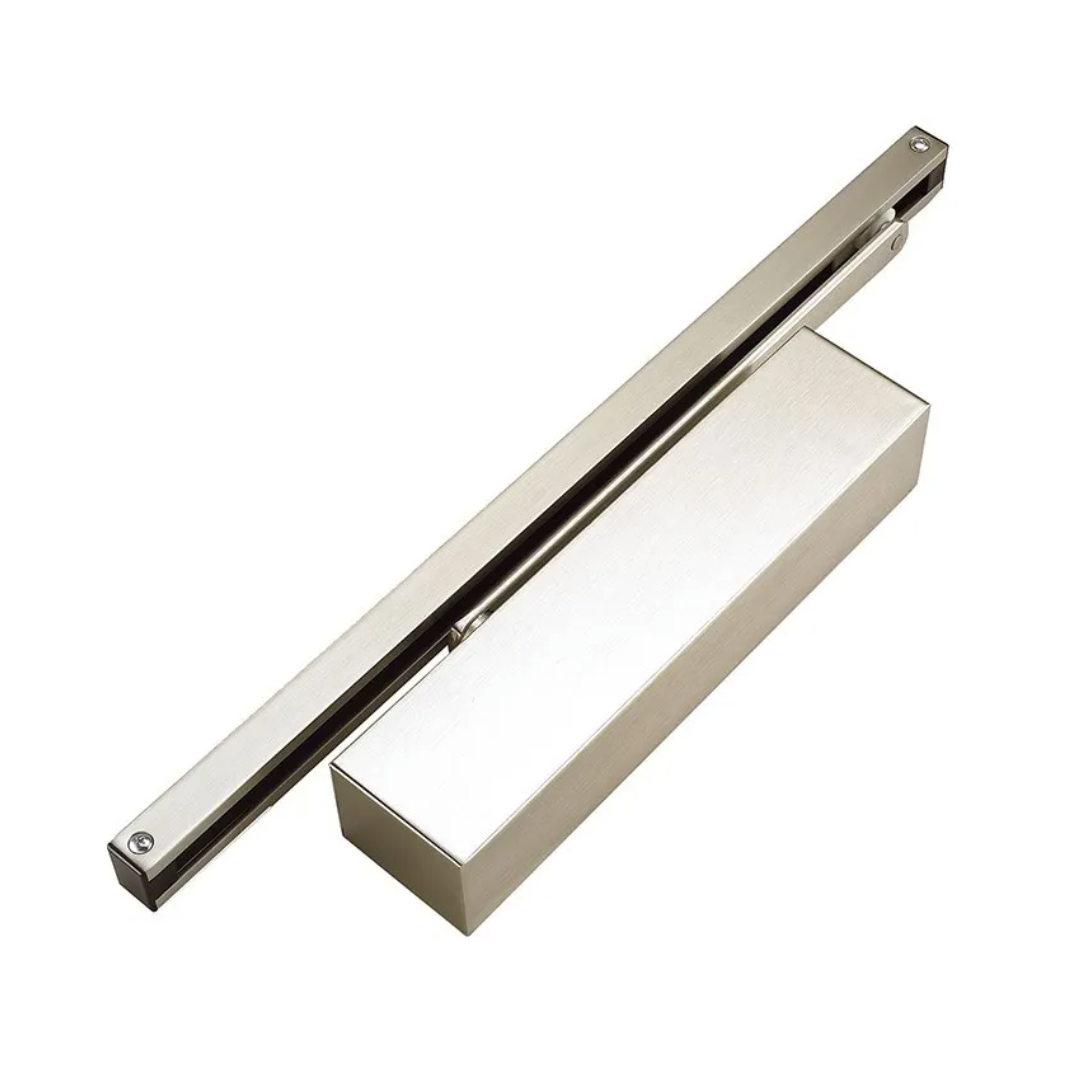

• Backcheck Track Door Closer – Adjustable – B1120BT-C-SSS
• Backcheck Track Door Closer – Powder Coated – B1120B-T-C-PC

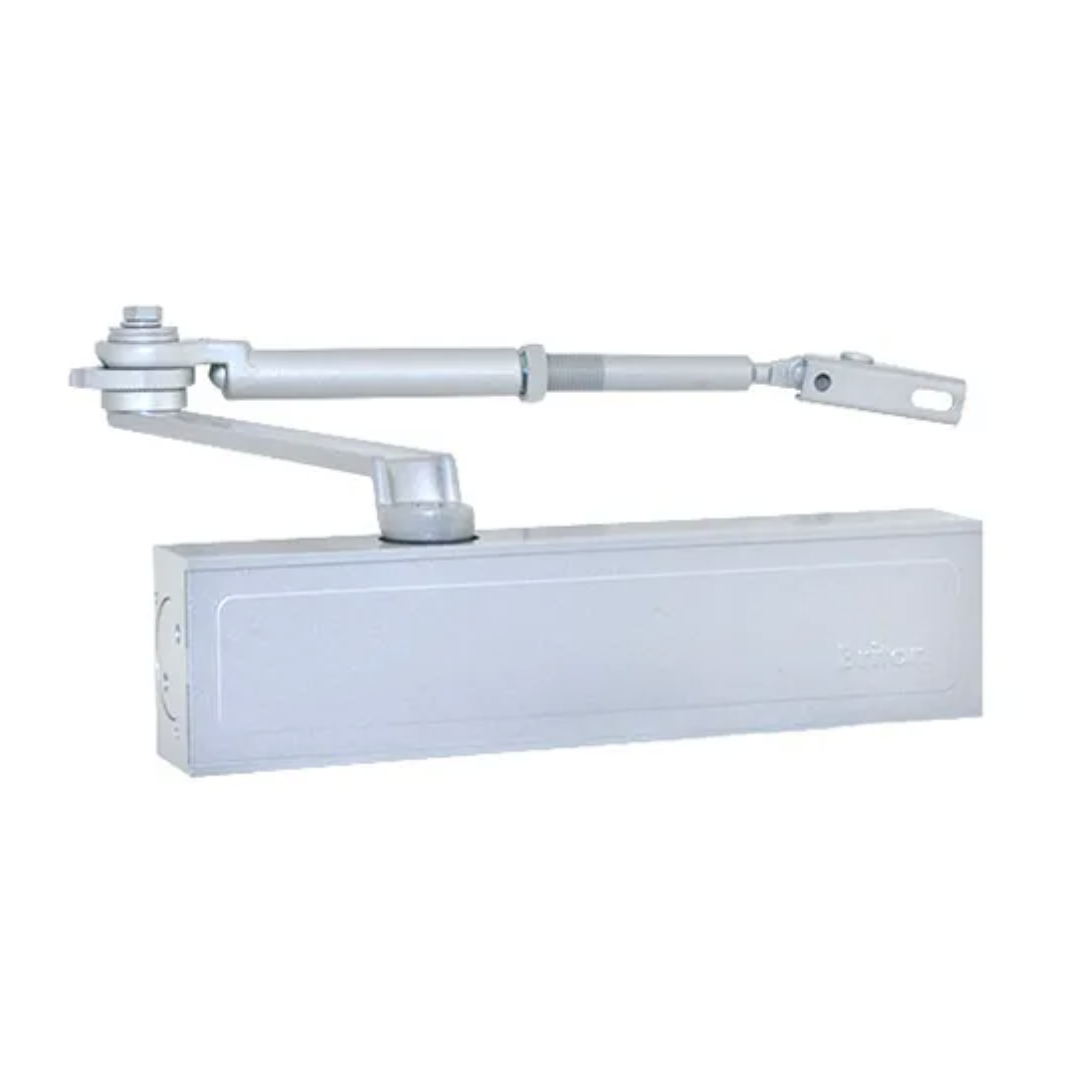

• Hold Open Adjustable Closer – B1120B-HO-SE

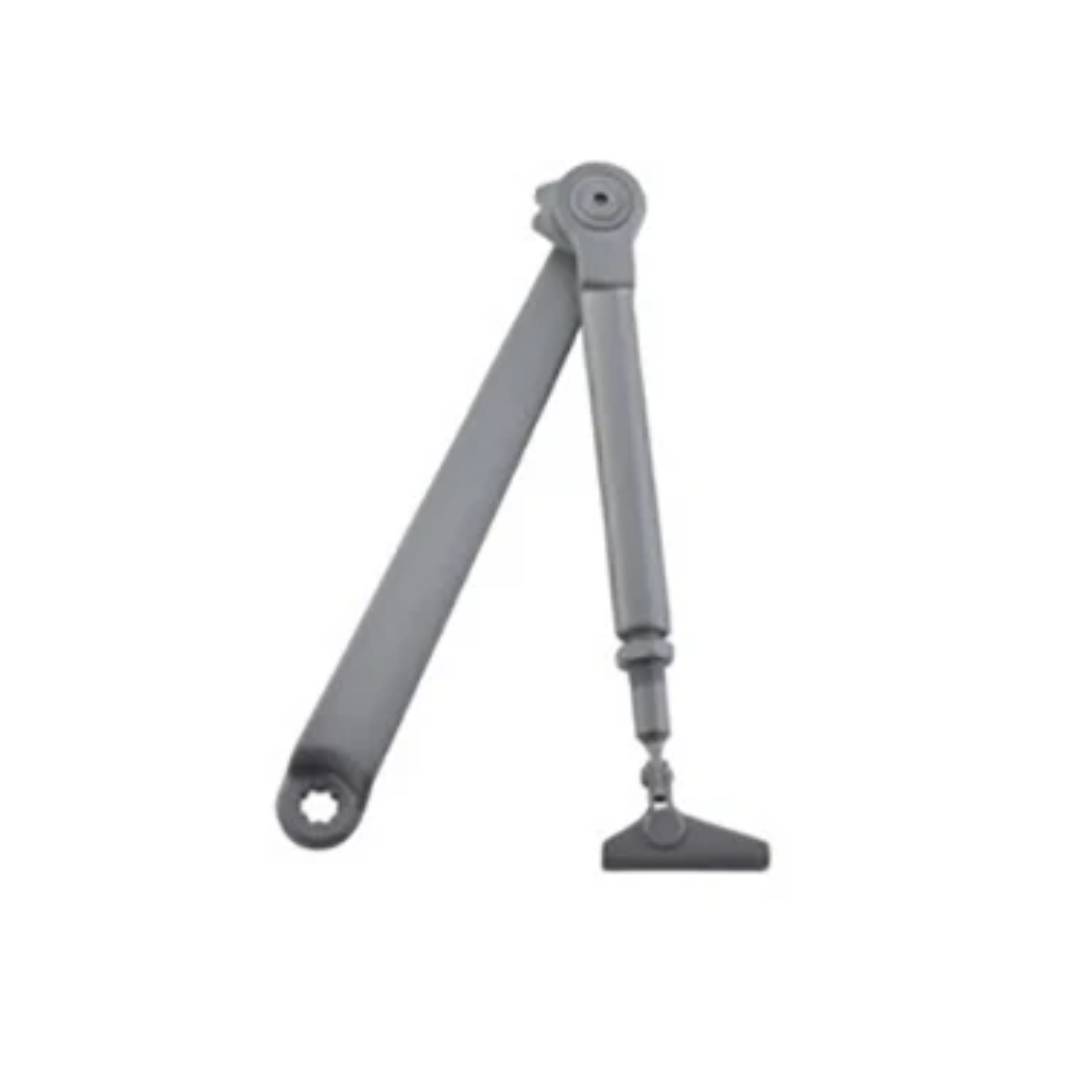

• Hold Open Arm – Aluminium – B1120ARM-HOSE
• Hold Open Arm – Matt Black – B1120ARM-HOMB

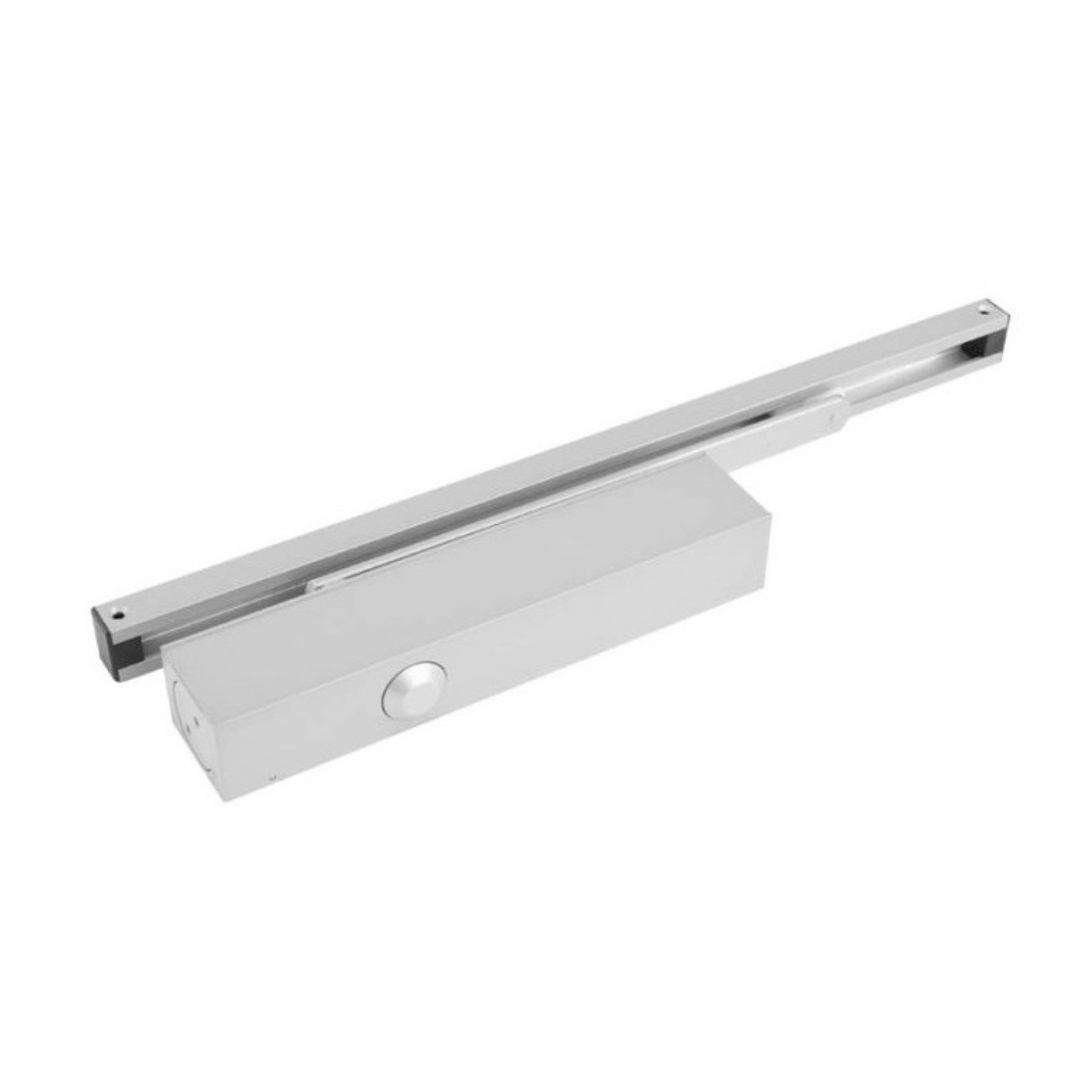

• Adjustable Track Arm Closer – B1120BT-SE
