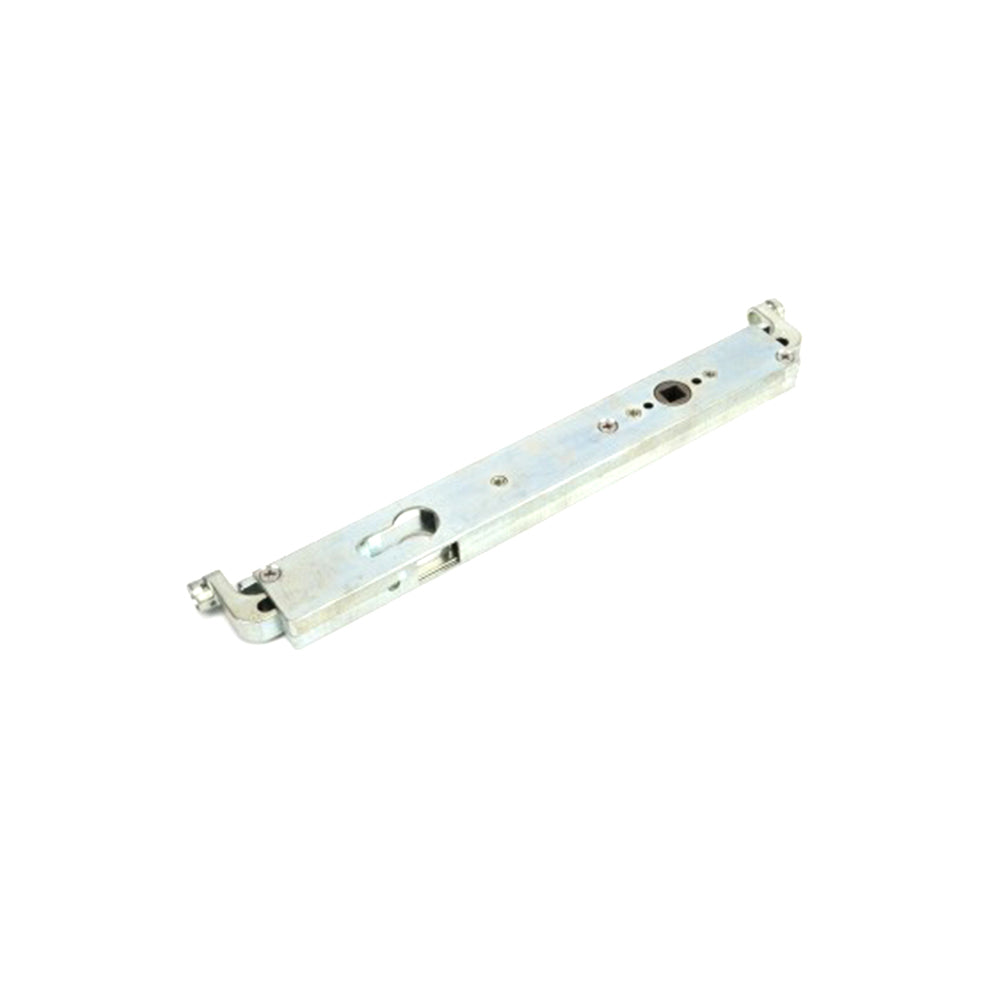

Brio 286 Dual Point Lock Body

The Brio 286 Dual Point Lock Body is designed for use with Brio Weatherfold 4S exterior folding door systems, supporting both timber and aluminium panels. It is also suitable for single hinge panels, French doors, and other compatible door applications requiring secure multi-point locking.

The Dual Point Lock features independently adjustable dual extendible reach hooks and adjustable keepers, allowing precise alignment and easy on-site adjustment for smooth, reliable locking performance. A low-profile handle operates through a 180° rotation, activating a 25mm throw that securely locks the door at both the top and bottom.

This product includes the 286 Lock Body only and requires compatible BRI018 and BRI019 components for complete installation. Designed for Euro cylinder compatibility, it provides a clean, modern appearance with an integrated escutcheon and low-profile key.

Features

• Designed for Brio Weatherfold 4S exterior folding door systems
• Suitable for timber and aluminium folding doors
• Can also be used on single hinge panels and French doors
• Dual point locking with independently adjustable extendible reach hooks
• Individually adjustable keepers for accurate door alignment
• 180° handle operation activates a 25mm locking throw
• Compatible with Euro cylinder and low-profile key
• Integrated escutcheon for a clean, modern appearance
• Lock body only – requires BRI018 and BRI019 components
• Suitable for panel thicknesses from 45mm to 70mm
• Stainless steel finish for excellent durability and corrosion resistance

Specifications

• Product Type: Dual Point Lock Body
• Compatible System: Brio Weatherfold 4S
• Panel Material: Timber or Aluminium
• Available Sizes: 35mm, 45mm
• Panel Thickness: 45mm–70mm
• Finish: Stainless Steel

Variants

• 286T/35-1 – 35mm
• 286TD/35 – 35mm
• 286T/45-1 – 45mm
• 286TD/45 – 45mm
