Aura Door & Frame Accessories – Threshold Plates & Seals

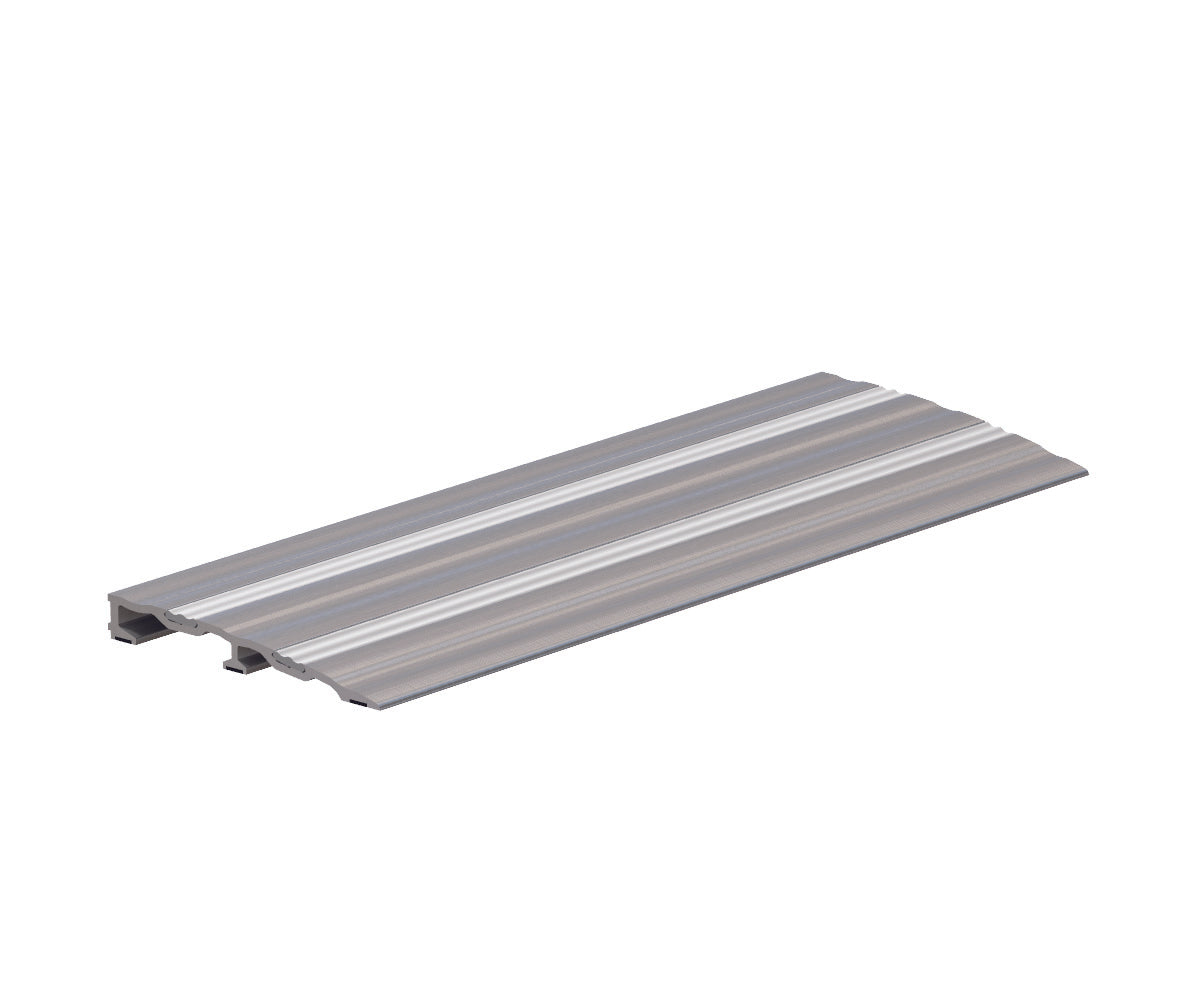

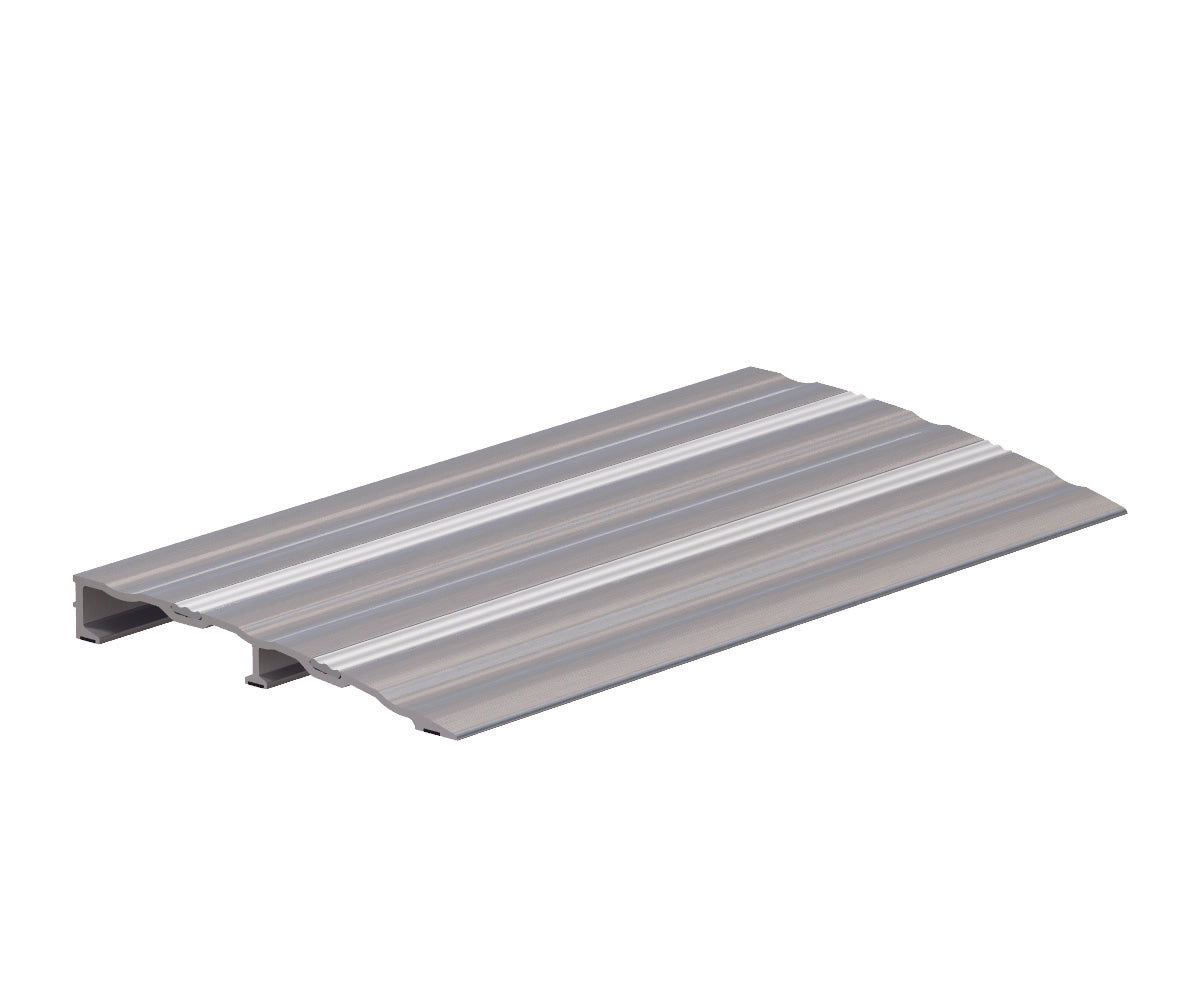

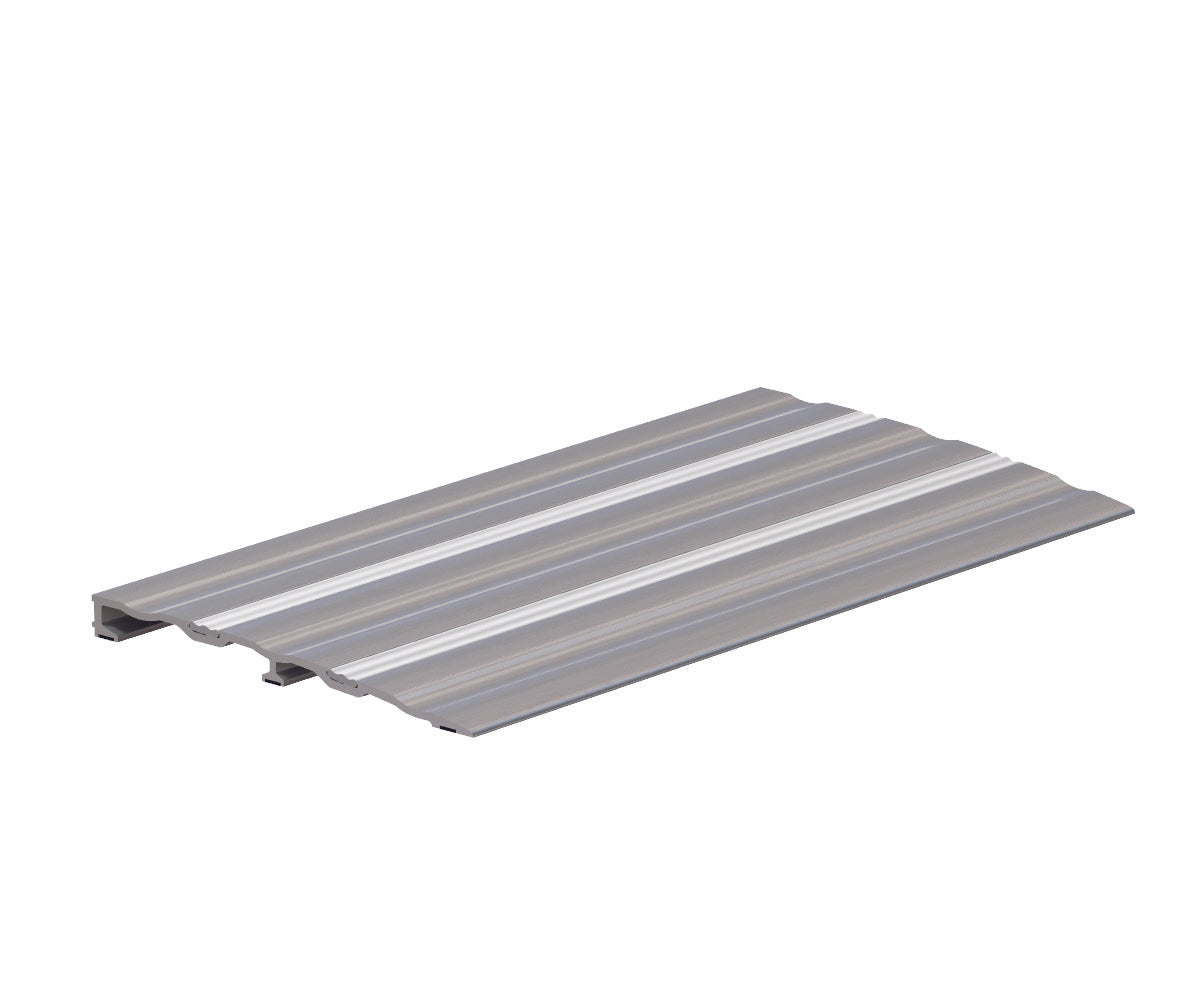

Aura Threshold Plates are designed for use in buildings where wheelchair and trolley access is frequent or where floor surfaces are uneven. They feature reversible tread strips for superior traction, with unique ‘scoops’ that further enhance grip for both foot and wheeled traffic.

Key Features:

• Location: Suitable for single and double swing doors.

• Materials & Finish: Silver anodised aluminium with silver tread strips. Decorative finishes and different coloured tread strips available on request.

• Fixing: Pre-drilled and countersunk for easy installation. Fixing screws supplied. Tread strips are push-fit into the plate to conceal fixings.

• Safety & Performance:

  • Fire Rating: Approved for use on proprietary AS1905.1 fire doors for up to 4 hours.

  • Disability Compliance: Meets AS1428.1 access requirements for disability.

Available Sizes & Variants:

• 12.5mm Threshold Plates:

  • Width: 100W or 150W

  • Length: 1000mm or 2100mm

• 19mm Threshold Plates:

  • Width: 150W

  • Length: 1000mm or 2100mm

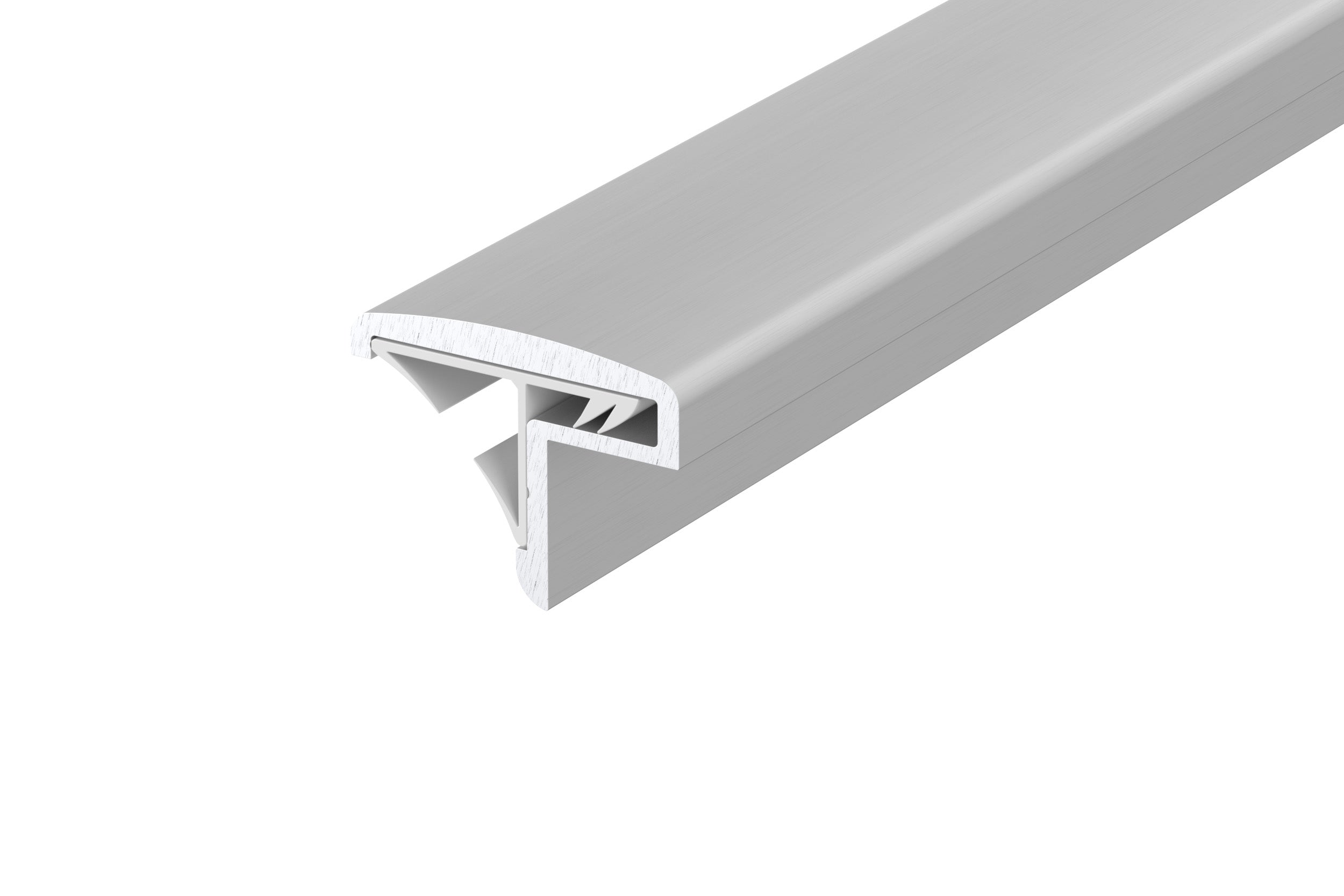

Aura Meeting Stile Seals

Aura Meeting Stile Seals are designed to complement threshold plates and enhance door sealing performance. They are available in multiple lengths to suit a range of door installations.

• Available lengths: 2250mm, 2750mm, 3000mm

• Finish: Silver

Aura Perimeter Seals

Aura Perimeter Seals provide additional sealing at door edges, ensuring improved insulation and performance.

• Round Edge Perimeter Seal: 2100mm, Silver

• Square Edge Perimeter Seal: 1000mm or 2100mm, Silver

Applications:

• Commercial and public buildings with high foot traffic

• Wheelchair-accessible areas

• Fire-rated door installations

• Locations requiring compliant disability access

Benefits:

• Enhanced grip for foot and wheeled traffic

• Easy and secure installation

• Fire-rated and compliant with disability standards

• Durable, decorative aluminium construction
