8002 Series – Door Coordination Units, Arms & Accessories

The Lockwood 8002 Swing Door Operator is an advanced electro-hydraulic solution designed for a wide range of internal and external swing doors. Engineered for commercial, institutional, and high-traffic applications, it provides smooth, reliable automatic door operation while meeting strict safety, accessibility, and compliance standards. The system is suitable for single or double doors, supports push or pull mounting, and works with butt hinges or pivots.

With flexible activation options—including motion sensors, push buttons, and remote controls—the 8002 series accommodates accessibility solutions, controlled entry, and healthcare applications. Opening and closing speeds, door angles, and activation modes can be adjusted individually, ensuring seamless integration into various building environments.

Key Features

• Electro-Hydraulic Operation: Motor-driven opening with spring-assisted closing

• Adjustable Opening & Closing Speeds: Individually configurable for optimal performance

• Door Opening Angle: Adjustable up to 120°

• Multiple Activation Options: Remote control, push button, radar/motion sensors, impulse and presence detection

• Non-Handed Design: Works on left or right-hand doors, push or pull action

• Flexible Installation: Compatible with single and double doors fitted with butt hinges or pivots

• Accessibility Compliance: Ideal for disability entrances, hospitals, health centers, and controlled access points

• Standards Certified: EN 1154 size 3–6, EN 1158 coordination units, DIN 18263-4, ANSI/BHMA A156.10/A156.19, UL325/CUL325, SITAC 0710/97

Available Variants

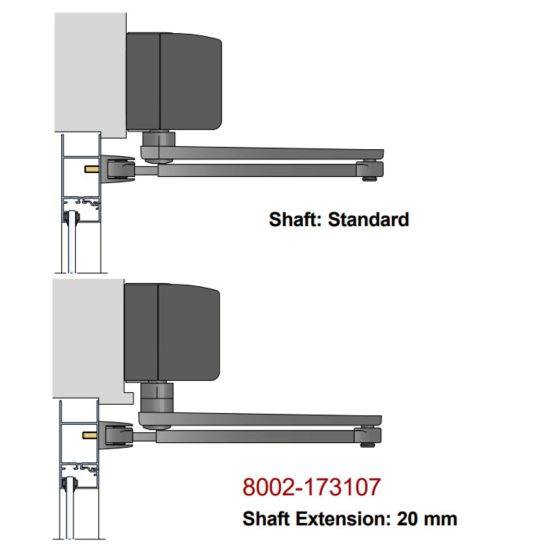

The 8002 series includes coordination units, telescopic arms, shaft extensions, spacer fittings, doorstops, covers, radar and remote activation units, and accessory kits. All variants are designed to provide a complete, reliable solution for automated swing door control across diverse applications.
