#62 Exterior Cylinder Plate

$363.32
$363.32
Tax included. Shipping calculated at checkout.
SKU: L502/62A
$363.32
$363.32

Legge Ergo Lever 62 External Cylinder Plates

The Legge Ergo Lever 62 external cylinder plates combine a rectangular brass plate with an oval cylinder hole and Ergo 62 lever. Available in L502 and L702 models, the range offers multiple finishes and a selected LED option.

Features

  • External plate with oval cylinder hole and Ergo 62 lever.
  • Rectangular plate design.
  • Brass construction.
  • Multiple finishes available.
  • LED option: L702/62LEDS.

L702 Specifications

  • Plate size: 171 x 47 mm.
  • Door thickness: 32–55 mm.
  • Handing: Non-handed.
  • Fixing: Concealed through fixing with screws.
  • Fire rated.
  • AS1428.1 compliant.

Available Variants and Finishes

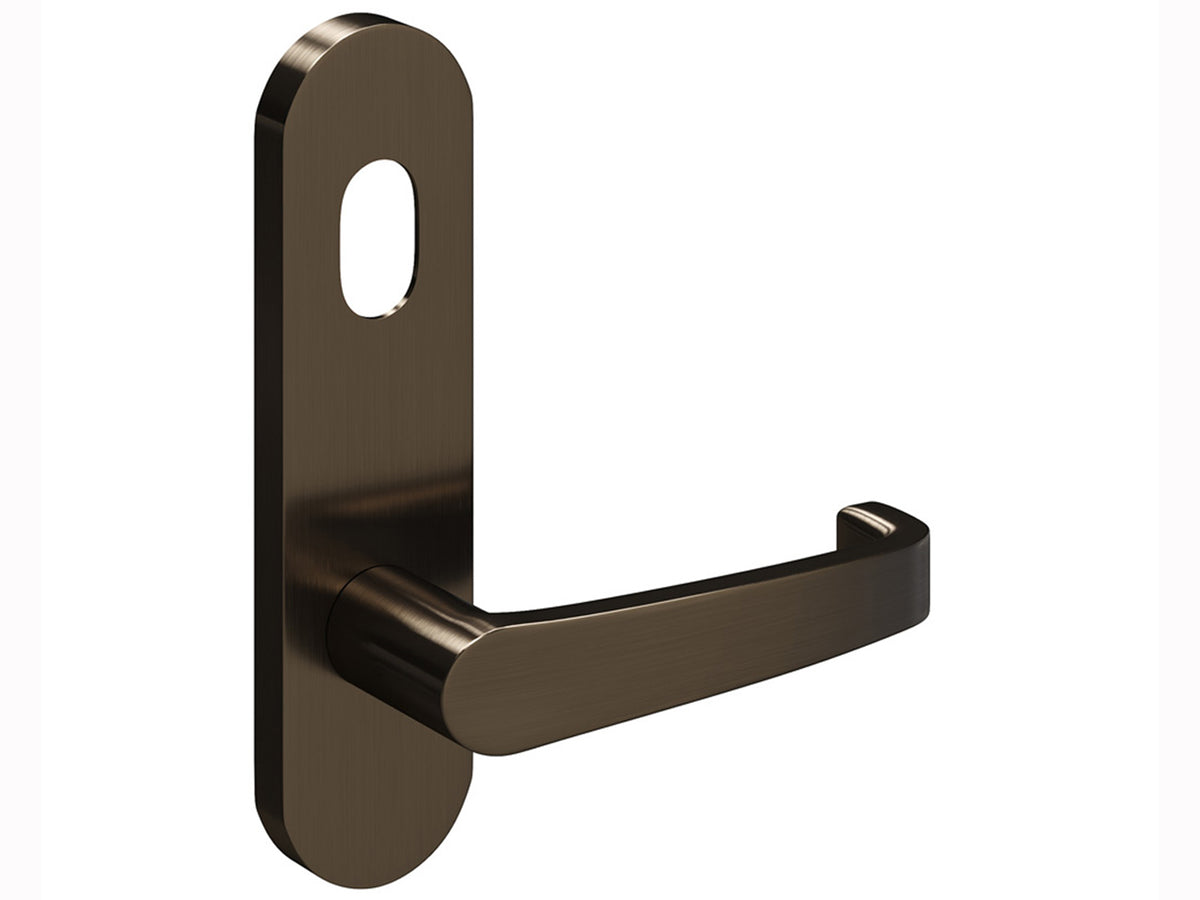

  • L502/62A – External Cylinder Plate – Antique Bronze.
  • L702/62SBCAV – External Cylinder Plate – Antique Satin Brass Chrome.

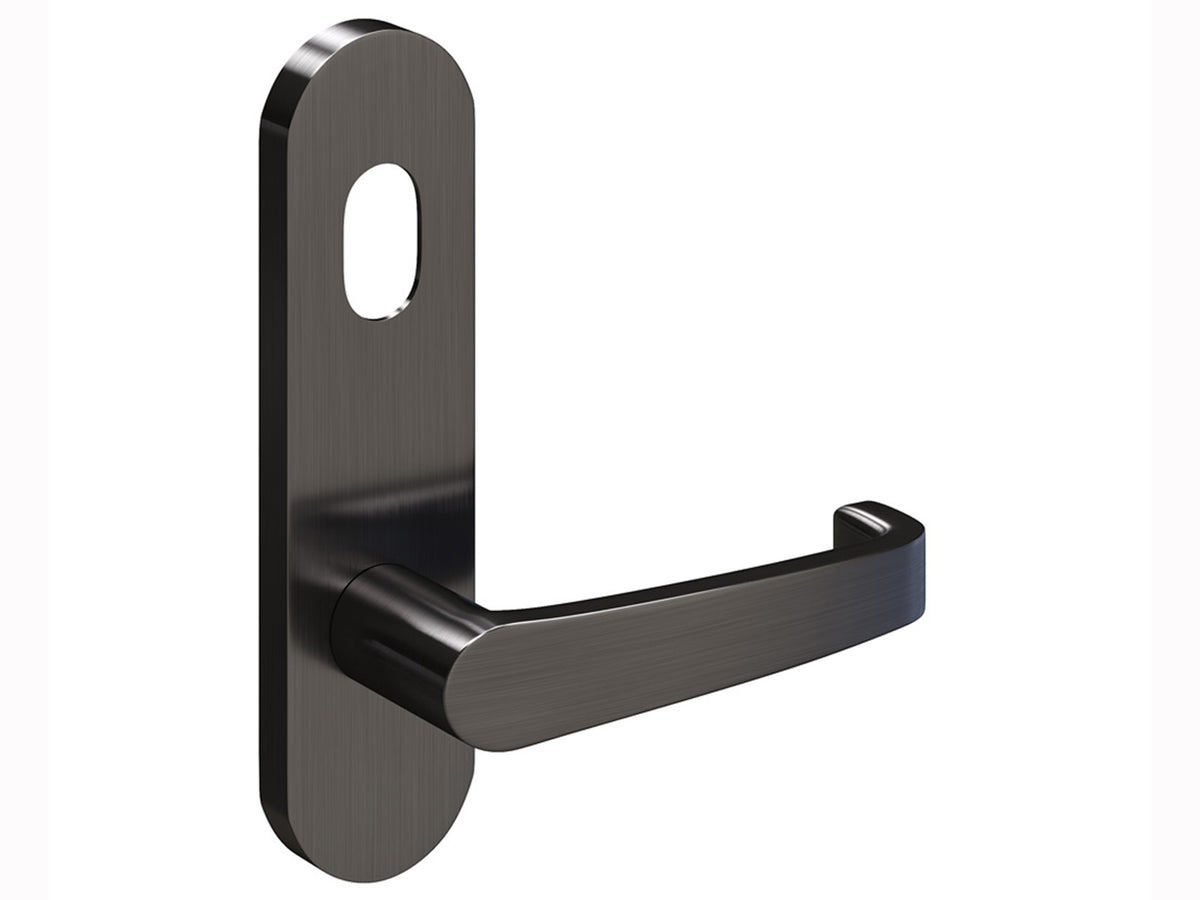

  • L502/62ORB – External Cylinder Plate – Oil Rubbed Bronze.
  • L502/62P – External Cylinder Plate – Polished Brass.
  • L502/62PU – External Cylinder Plate – Polished Brass Unlacquered.
  • L702/62PC – External Cylinder Plate – Powder Coated.
  • L502/62SBC – External Cylinder Plate – Satin Brass Chrome.

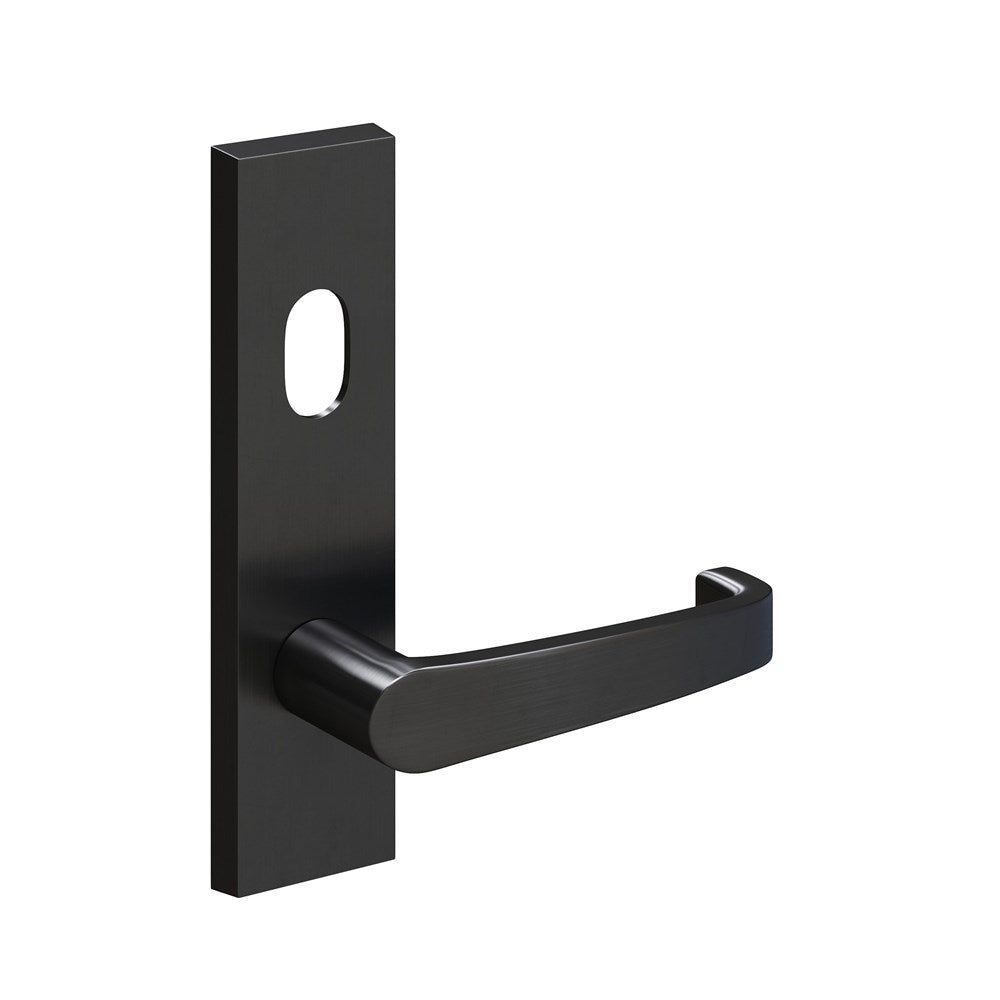

  • L702/62SBC – External Cylinder Plate – Satin Brass Chrome.

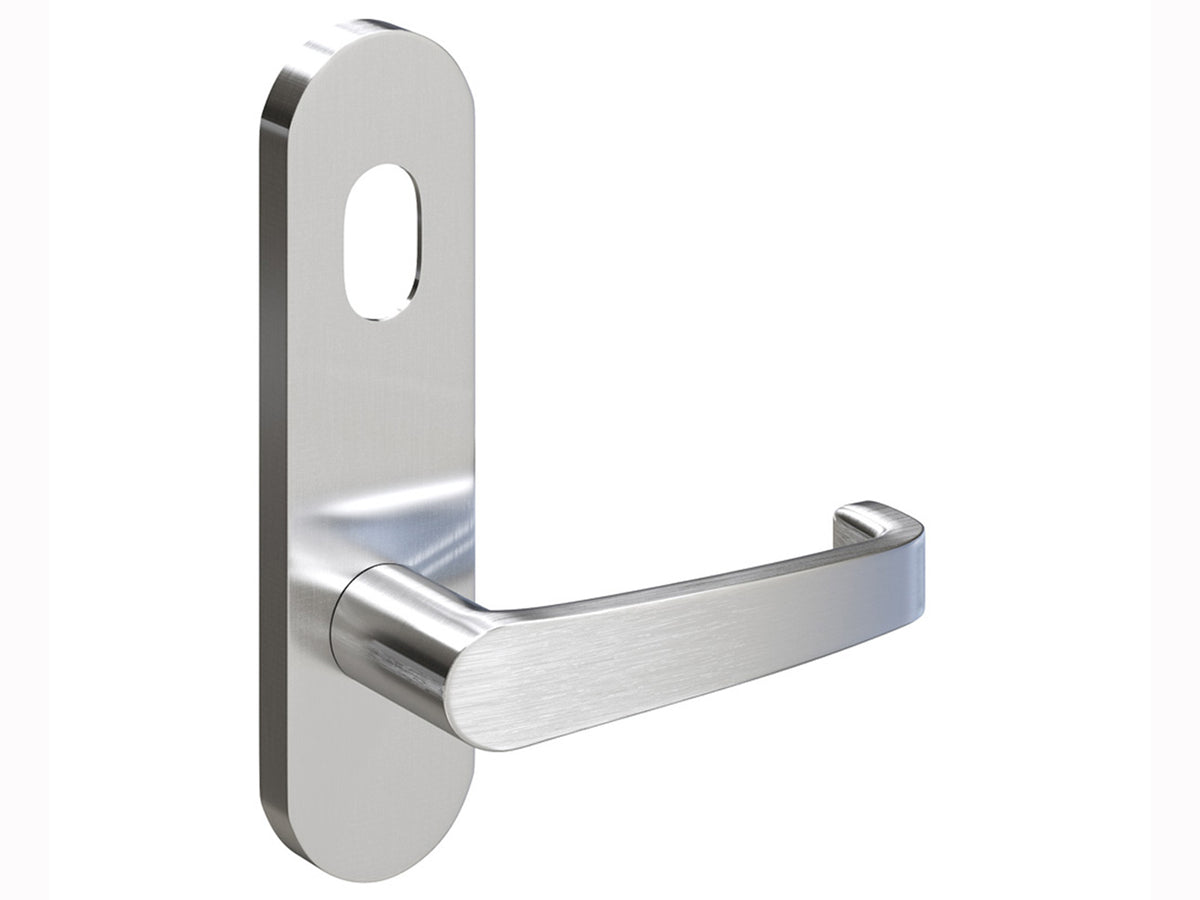

  • L502/62S – External Cylinder Plate – Satin Chrome Plated.

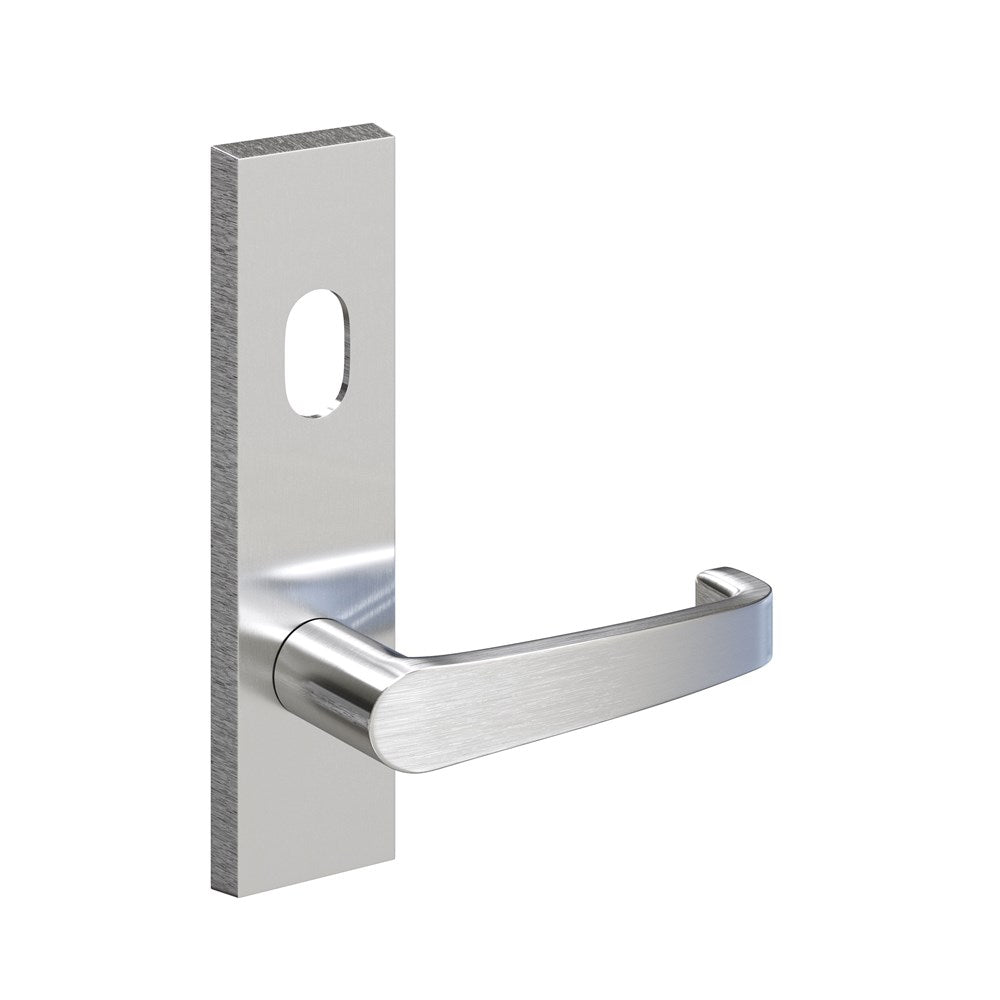

  • L702/62S – External Cylinder Plate – Satin Chrome Plated.
  • L702/62LEDS – External Cylinder Plate with LED – Satin Chrome Plated.
