#57 Door Plate & Turn With Multiple Options

Legge Angelo Lever 57 Door Furniture – Plate & Turn Options

The Legge Angelo Lever 57 door furniture is designed for use with Legge 991MF mortice locks. This selection includes internal and external plates with emergency release, indicator, plain plate, accessible turn and turn bar configurations.

Features

• Angelo Lever 57 design.
• Forged brass construction.
• Compatible with Legge 991MF mortice locks.
• Back-to-back installation, with 75 mm fixing screws supplied with the external handle.
• Satin chrome plated and selected powder coated finishes.

700 Series Specifications

• Plate dimensions: 168 x 48 mm.
• Fixing centres: 158 mm.
• Spindle: 7.6 mm.

Available Variants and Finishes

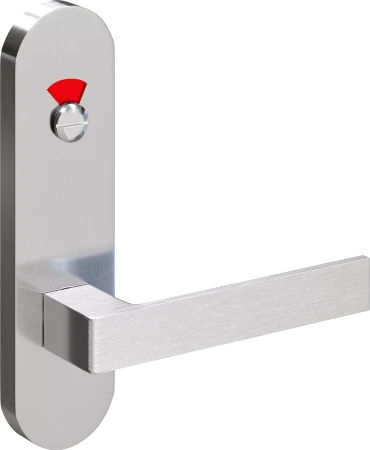

• L504/57INDS – External Emergency Release with Indicator – Satin Chrome Plated.

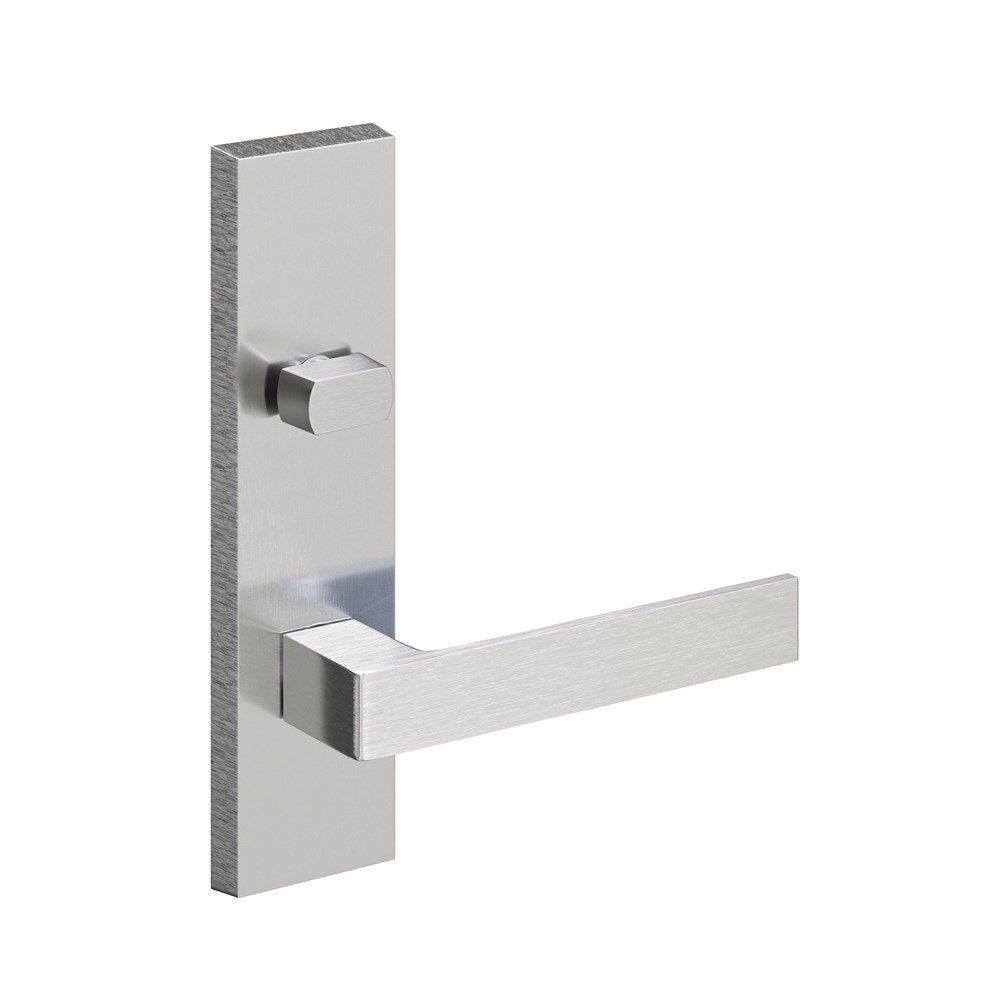

• L705/57S – External Turn Plate – Satin Chrome Plated.
• L5353/57RS – Internal Accessible Turn – RH – Satin Chrome Plated.

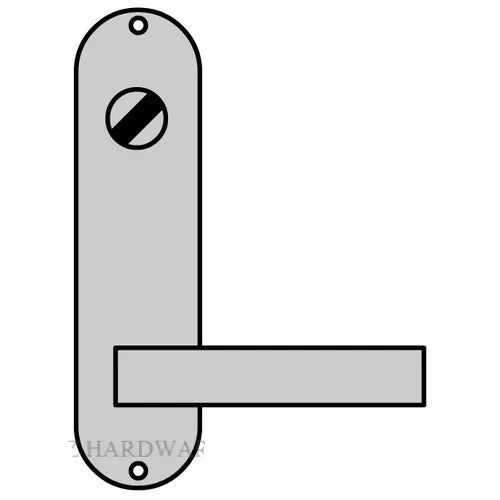

• L513/57S – Internal Emergency Release Plate – Satin Chrome Plated.

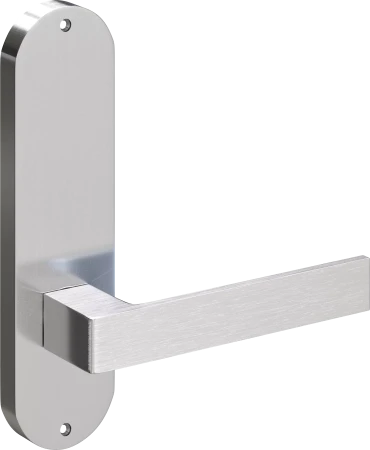

• L512/57S – Internal Plain Plate – Satin Chrome Plated.

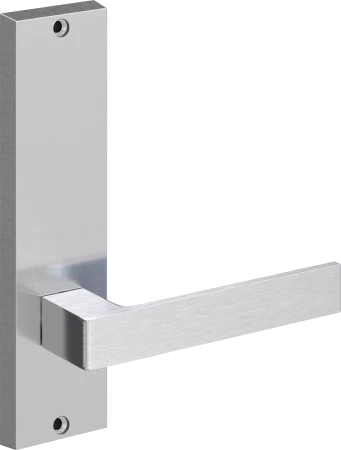

• L712/57S – Internal Plain Plate – Satin Chrome Plated.

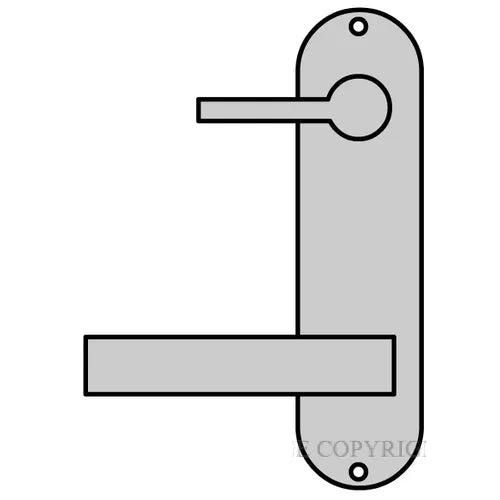

• L554/57LS – Internal Turn Bar – LH – Satin Chrome Plated.

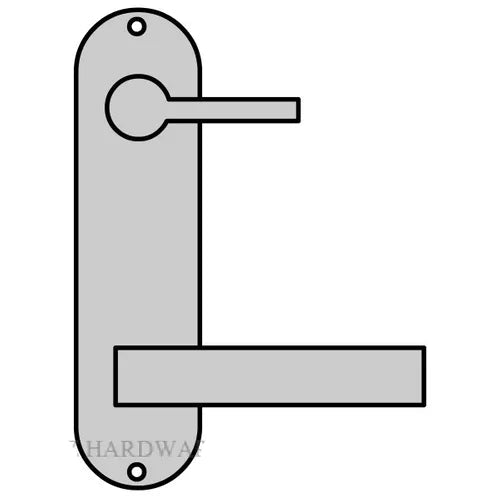

• L554/57RS – Internal Turn Bar – RH – Satin Chrome Plated.
• L714/57PC – Internal Turn Plate – Powder Coated.

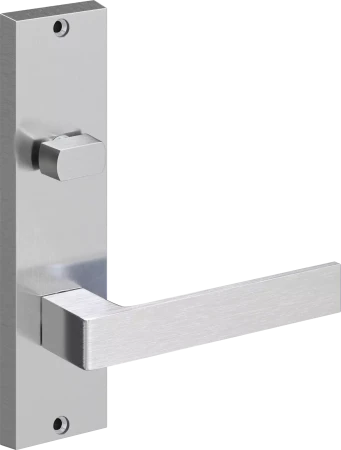

• L714/57S – Internal Turn Plate – Satin Chrome Plated.
