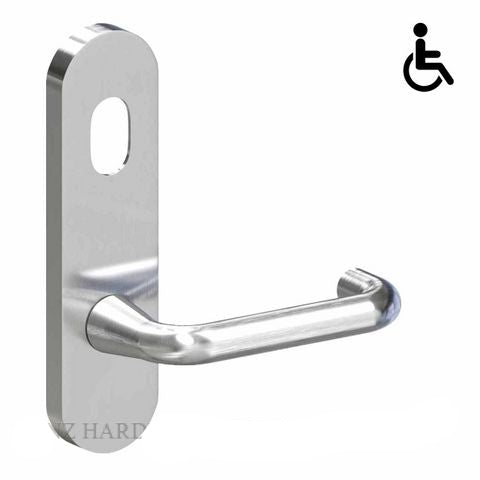

502/29 Anti-Vandal External Lever Plate with Cylinder Hole

The Legge Alpha 29 500 Series Anti-Vandal Furniture is designed for heavy-duty commercial door applications. Constructed with forged brass levers and plates, it provides durable performance for interior and exterior doors in high-use environments.

Features

• Alpha 29 anti-vandal lever design
• Suitable for heavy-duty commercial applications
• Forged brass lever and plate construction
• Heavy-duty spring for positive lever return
• 168mm plate height
• 48mm plate width
• 148mm fixing centres
• Suitable for 32–55mm standard door thickness
• Suitable for 56–75mm doors with extended screws
• 7.6mm spindle
• Supplied with fixings
• Suitable for fire door assemblies when used with compatible fire-rated locks and latches

Available Variant

• Satin Chrome Plated – L502/29SAV
