4980 Square End Plate – 90 Degree Lever Options

The Lockwood 4980 Series square end plate is part of the premium brass door furniture range, designed for use with 3540 Series short backset mortice deadbolts. Paired with the 90-degree Lever 70, it delivers a bold, angular aesthetic suitable for commercial, institutional, and architectural applications.

With a slim profile and clean lines, this plate combines durability with modern design, making it ideal for high-traffic doors while ensuring easy installation and ergonomic operation.

Key Features

• Slim-Line Rectangular Plate: Square-ended design for a modern, architectural look

• Lever 70 (90-Degree): Ergonomic right-angle lever for strong visual impact

• Visible Fixing: Straightforward installation with exposed screws (concealed fixing available on request)

• Non-Handed Configuration: Works on both left- and right-hand doors; lever reversible by removing the stop screw

• Back-to-Back Installation: Plates designed for double-sided doors

• Dimensions: 184mm (H) × 26mm (W) × 11.5mm (D); fixing centres 160mm; cylinder pitch 89.9mm

• Door Thickness Compatibility: Suitable for 32mm–50mm doors, supplied with fixing screws

Available Variants

• Suit 3540 Series – 90° – Lever 70 – 4980/70AZ

• Suit 3540 Series – 90° – Lever 70 – 4980/70BU

• Suit 3540 Series – 90° – Lever 70 – 4980/70ORB

• Suit 3540 Series – 90° – Lever 70 – 4980/70PC

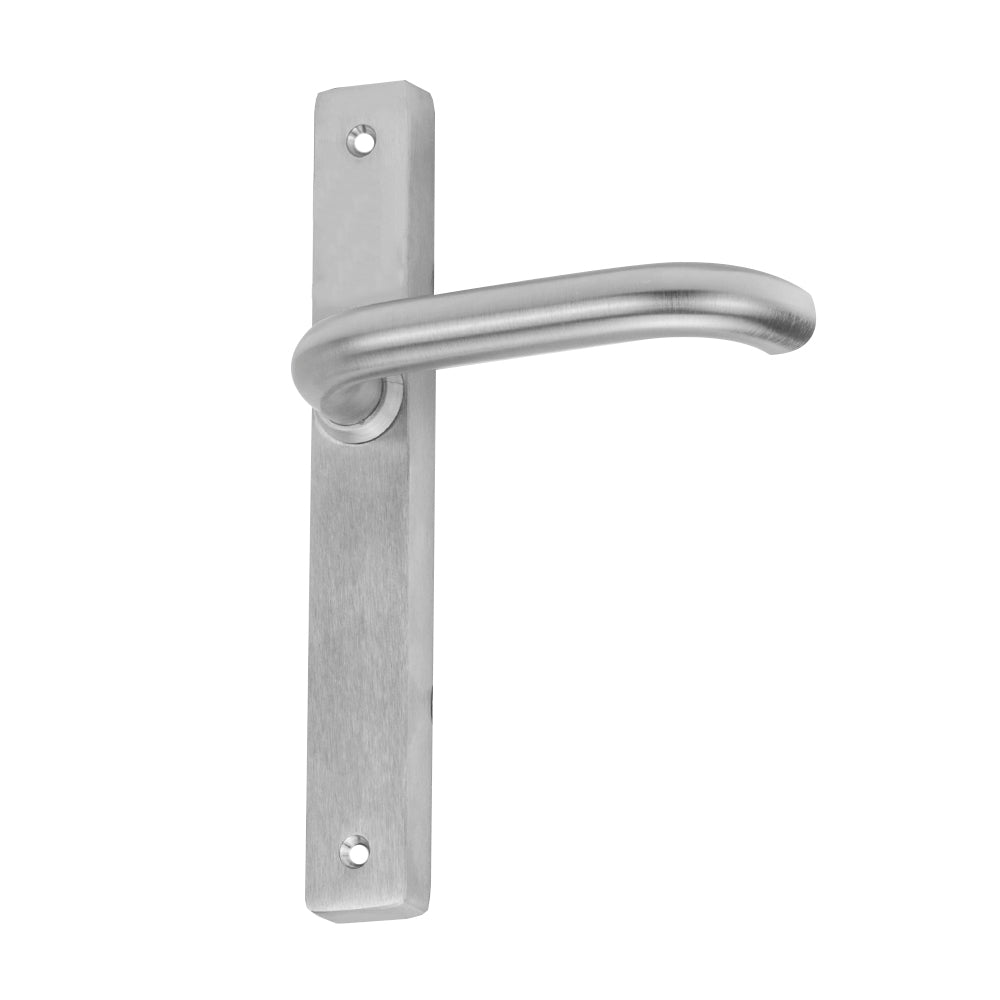

• Suit 3540 Series – 90° – Lever 70 – 4980/70SC

• Suit 3540 Series – 90° – Lever 77 – 4980/77SC

• Suit 3540 Series – 90° – Lever 97 – 4980/97SC
