4811 Series Square End Plates – Cylinder Hole with Lens & Multiple Lever Options

4811 Series Square End Plates – Cylinder Hole with Lens & Lever Options

A robust external square end plate solution with integrated lens indication, designed for commercial and architectural applications where clear lock status visibility and durability are required. Part of Lockwood’s 4811 Series, this range combines a slim rectangular profile with multiple lever options to suit high-traffic environments.

Features

• Square end plate with cylinder hole and integrated lens (cylinder not included)

• Fixed and standard lever options for architectural consistency

• Solid brass construction for strength and longevity

• Concealed fixing supplied

• Compatible with Lockwood Synergy 3580 and Selector 3780 Series mortice locks

• Also suitable for Lockwood 3540 Series short backset mortice deadbolts

• Fits door thicknesses from 32 mm to 50 mm

• Plate dimensions: 185 mm (H) × 26 mm (W) × 11.5 mm (D)

• Cylinder pitch: 89.9 mm

• Fixing centres: 160 mm

Variants

Satin Chrome (SC)

• EXT Square End Plate – Lens – Lever 101 — 4811/101SC

• EXT Square End Plate – Lens – Lever 102 — 4811/102SC

• EXT Square End Plate – Lens – Lever 118 — 4811/118SC

• EXT Square End Plate – Lens – Lever 131 — 4811/131SC

• EXT Square End Plate – Lens – Lever 155 — 4811/155SC

• Square End Plate – LED Lens – Lever 59 — 4811/59SC

• Square End Plate – LED Lens – Lever 70 — 4811/70SC

• Square End Plate – LED Lens – Lever 77 — 4811/77SC

• Square End Plate – LED Lens – Lever 90 — 4811/90SC

Powdercoat (PC)

• EXT Square End Plate – Lens – Lever 102 — 4811/102PC

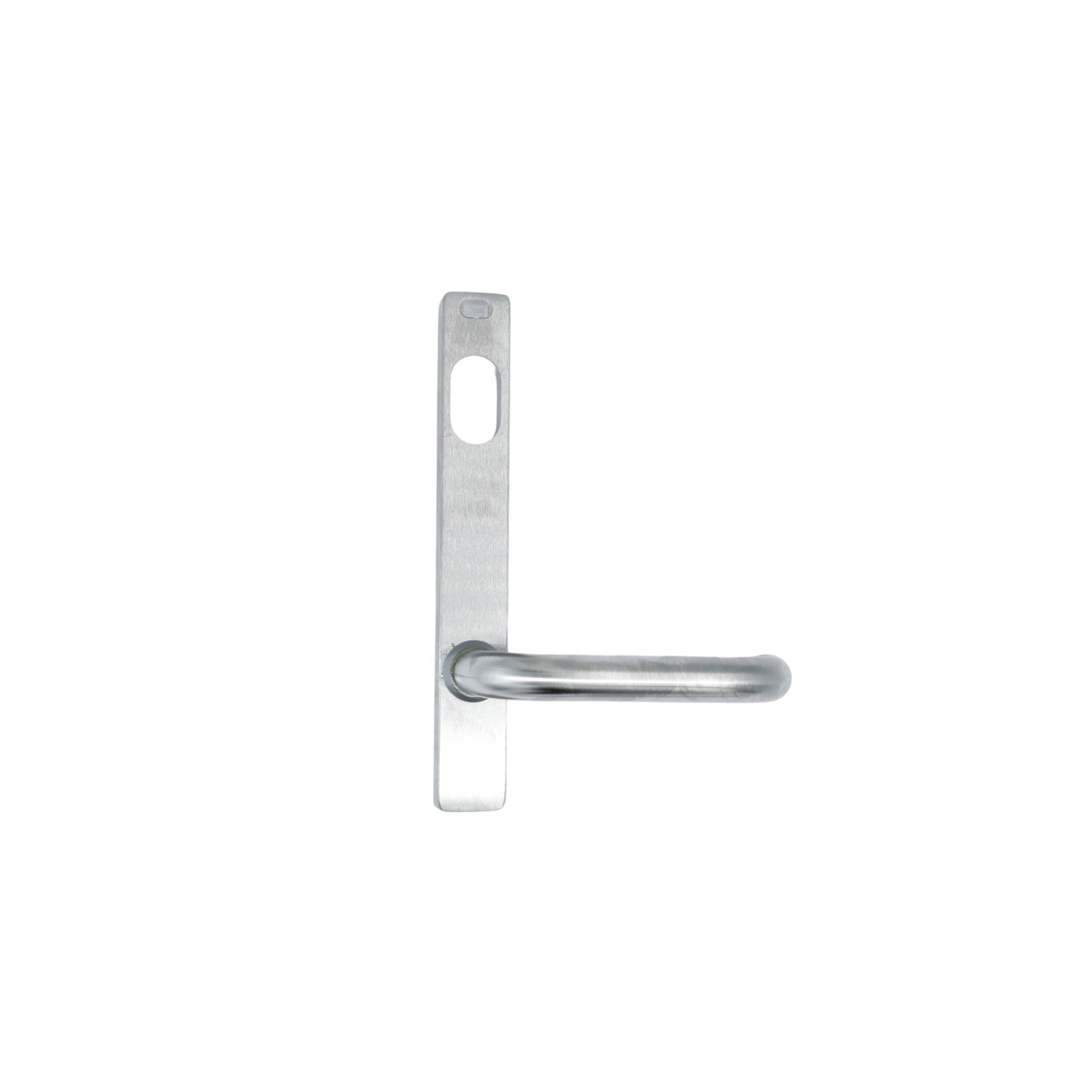

• Square End Plate – LED Lens – Lever 70 — 4811/70PC

• Square End Plate – LED Lens – Lever 59 — 4811/59PC

Antique / Architectural Bronze (AU)

• EXT Square End Plate – Lens – Lever 118 — 4811/118AU

Oil Rubbed Bronze (ORB)

• Square End Plate – LED Lens – Lever 70 — 4811/70ORB

• Square End Plate – LED Lens – Lever 76 — 4811/76ORB
