#29 Narrow Stile Plate

Legge Alpha Lever 29 Door Furniture – Cylinder & Turn Plate Options

The Legge Alpha Lever 29 door furniture selection includes exterior cylinder, interior cylinder hole and interior turn plate options. The supplied 5300 Series furniture is manufactured from forged brass and designed for Legge 995MF mortice locks with 23, 30 or 38 mm backsets.

5300 Series Specifications

• Lever design: Alpha 29.
• Material: Forged brass.
• Plate dimensions: 185 x 25 mm.
• Fixing centres: 159 mm.
• Spindle: 7.6 mm.
• Installation: Back-to-back fixing.
• 75 mm fixing screws supplied with the external handle.
• Compatibility: Legge 995MF mortice locks with 23, 30 or 38 mm backsets.

Available Variants

• L5400/29PC – Exterior Cylinder Plate.

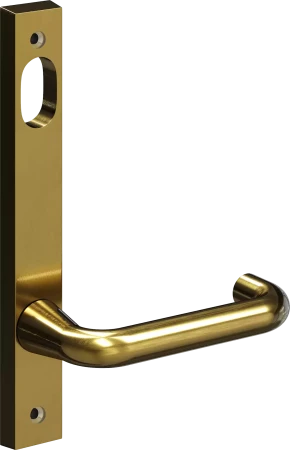

• L5301/29SB – Interior Plate with Cylinder Hole – Satin Brass.
• L5403/29PC – Interior Plate with Turn – Powder Coated.
