224 Exterior Plate /Cylinder Hole / Emergency Turn & Lever

$80.56 - $377.15
$211.84
$211.84
SKU: 22401NA/101SS
$211.84
$211.84

The Lockwood 224 Series Artefact Rectangular Plate Door Furniture is crafted from high-quality stainless steel with clean, square-end plate styling. Concealed-fixed plates feature internal-threaded studs at the top and bottom, while visible-fixed plates include corresponding countersunk holes, installed back-to-back through the door.

The Lockwood Overture lever, with its subtle curves and refined feel, offers a stylish and comfortable grip, enhancing the overall design of the plate furniture.

Application

Designed for use with the Lockwood 3770 Selector and 3570 Synergy Series Mortice Locks.

Features

  • Lever: Lockwood 59 (varies per selected variant)

  • External plate design

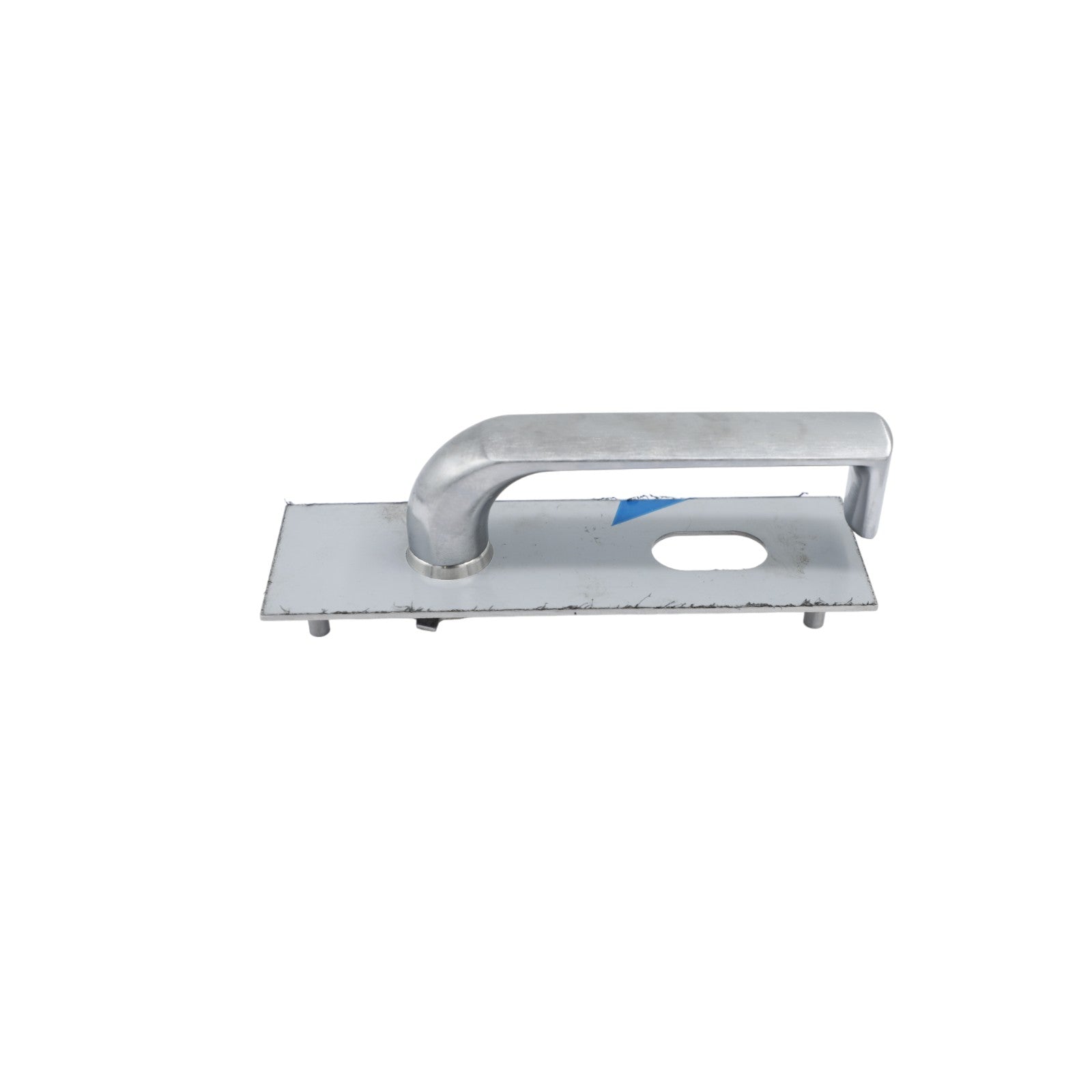

  • Cylinder hole (or emergency turn, depending on variant)

  • Cylinder pitch: 64mm

  • Fixing centres: 148mm

  • Concealed fixings

  • Non-handed

  • Stainless steel construction

  • Suits door thickness 35–45mm

  • For doors 45–55mm thick, specify long fixing screws SP2000-208

  • Supplied in trade pack

Plate Dimensions

  • Height: 162mm

  • Width: 50mm

  • Depth: 2mm

Lever Dimensions

  • Length: 121mm

  • Projection: 57.5mm

  • Finger clearance: 51mm

Available Variants

  • Cylinder Hole – 101 Lever

  • Cylinder Hole – 111 Lever

  • Cylinder Hole – 118 Lever

  • Cylinder Hole – 155 Lever

  • Cylinder Hole – 20 Knob

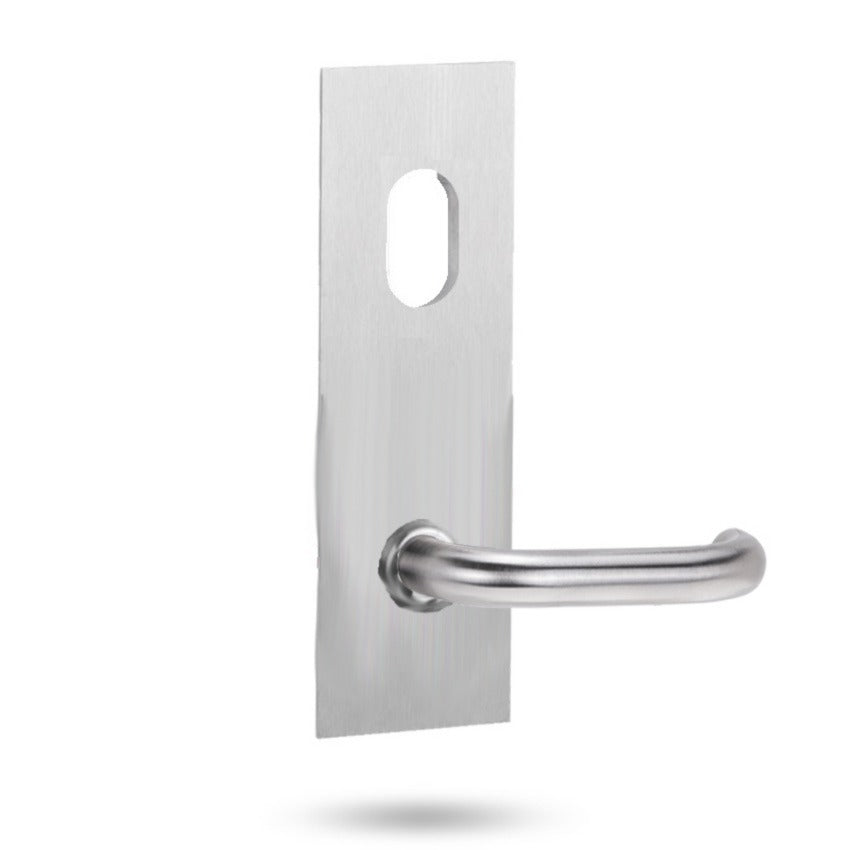

  • Cylinder Hole – 59 Lever

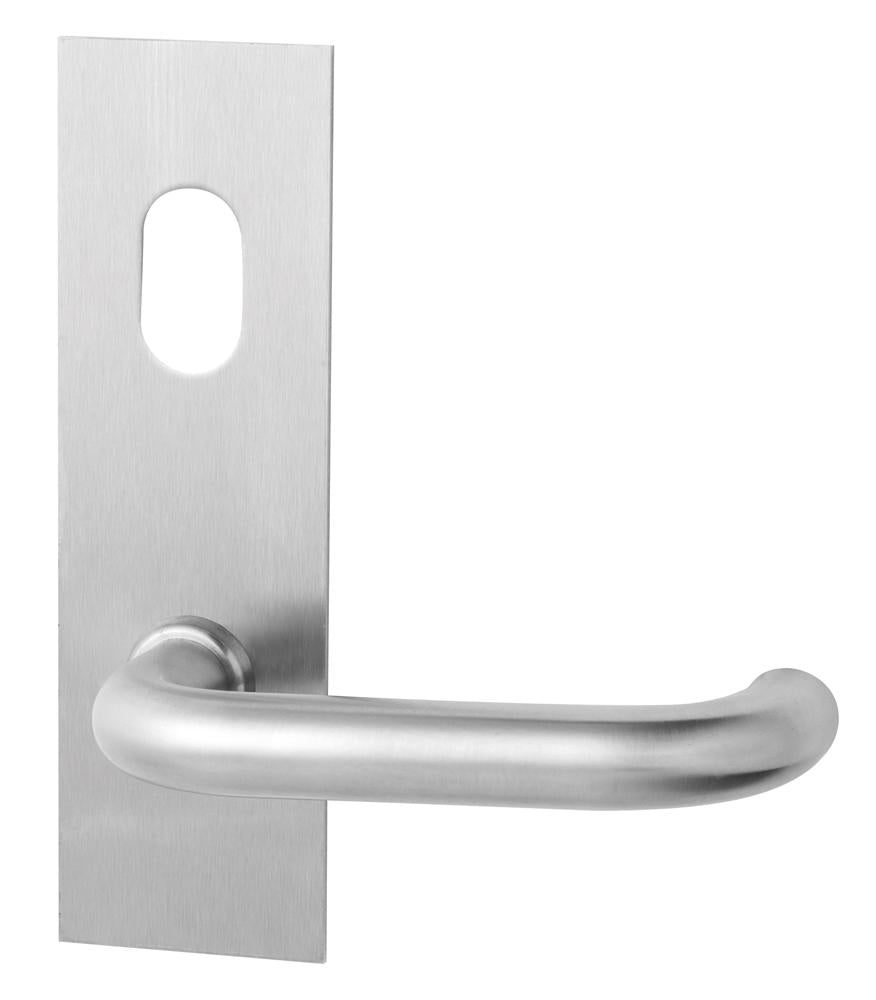

  • Cylinder Hole – 70 Lever

  • Cylinder Hole – 77 Lever

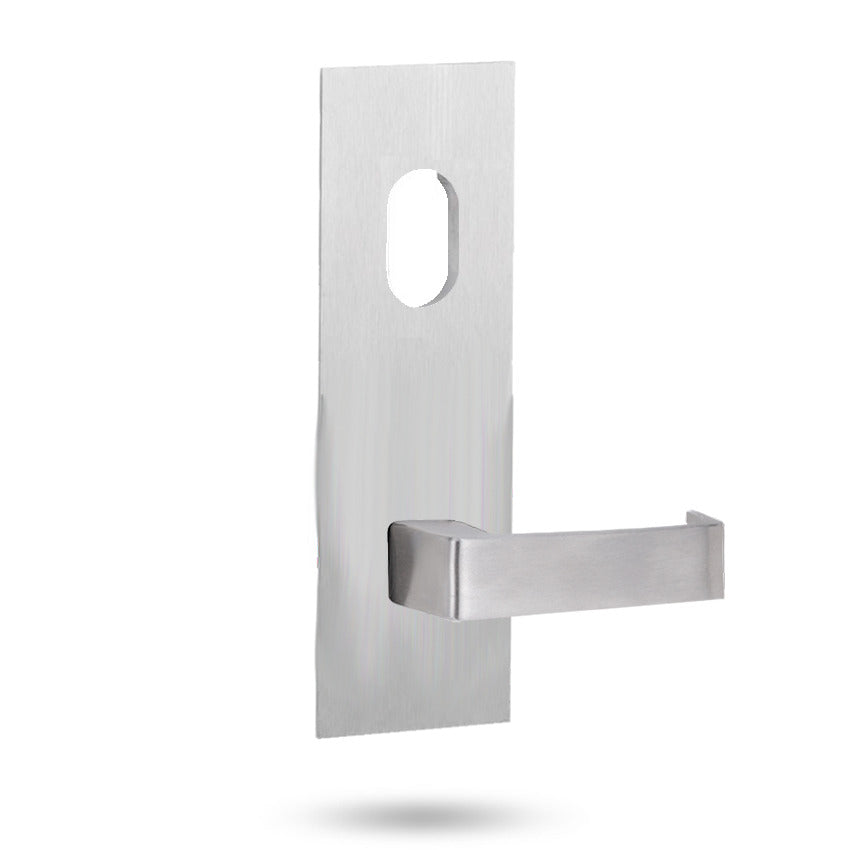

  • Cylinder Hole – 90 Lever

  • Cylinder Hole – 96 Lever

  • Cylinder Hole – 97 Lever

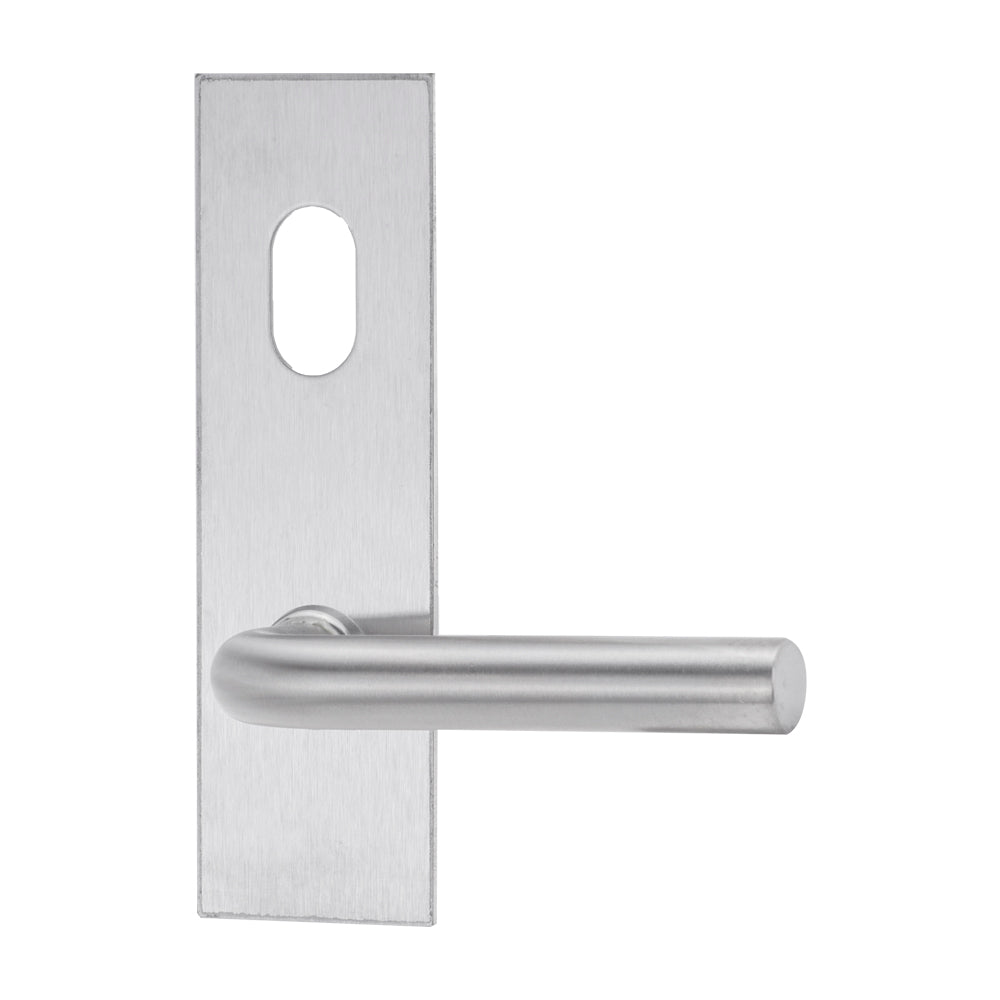

  • Cylinder Hole – 98 Lever

  • Cylinder Hole – 98 Lever – 45° Downward – LH

  • Cylinder Hole – LED – 96 Lever

  • Emergency Turn – 20 Knob

  • Emergency Turn – 70 Lever

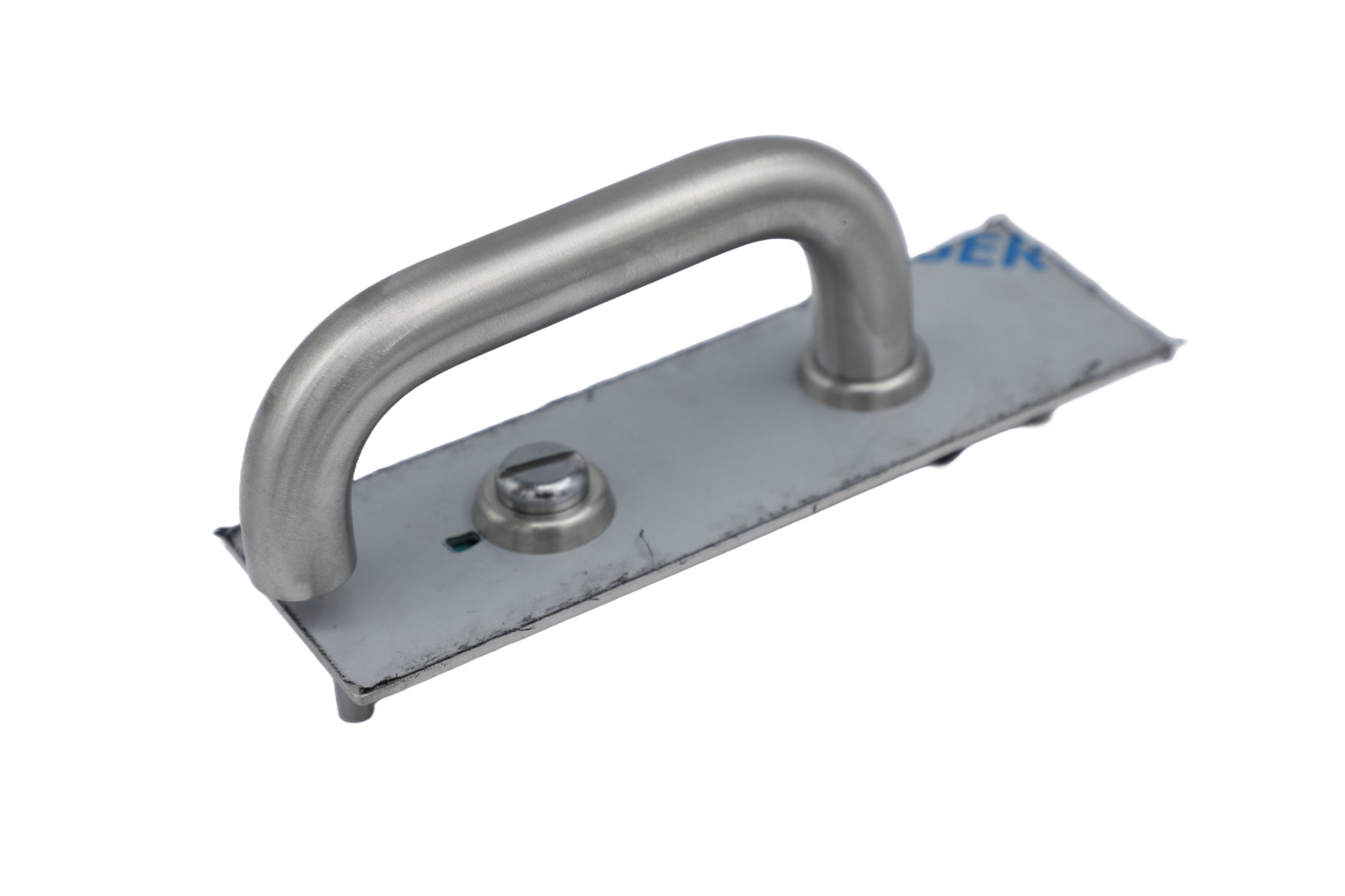

  • Emergency Turn – 96 Lever

  • Guarded Cylinder Hole – 96 Lever

  • LED – 96 Lever

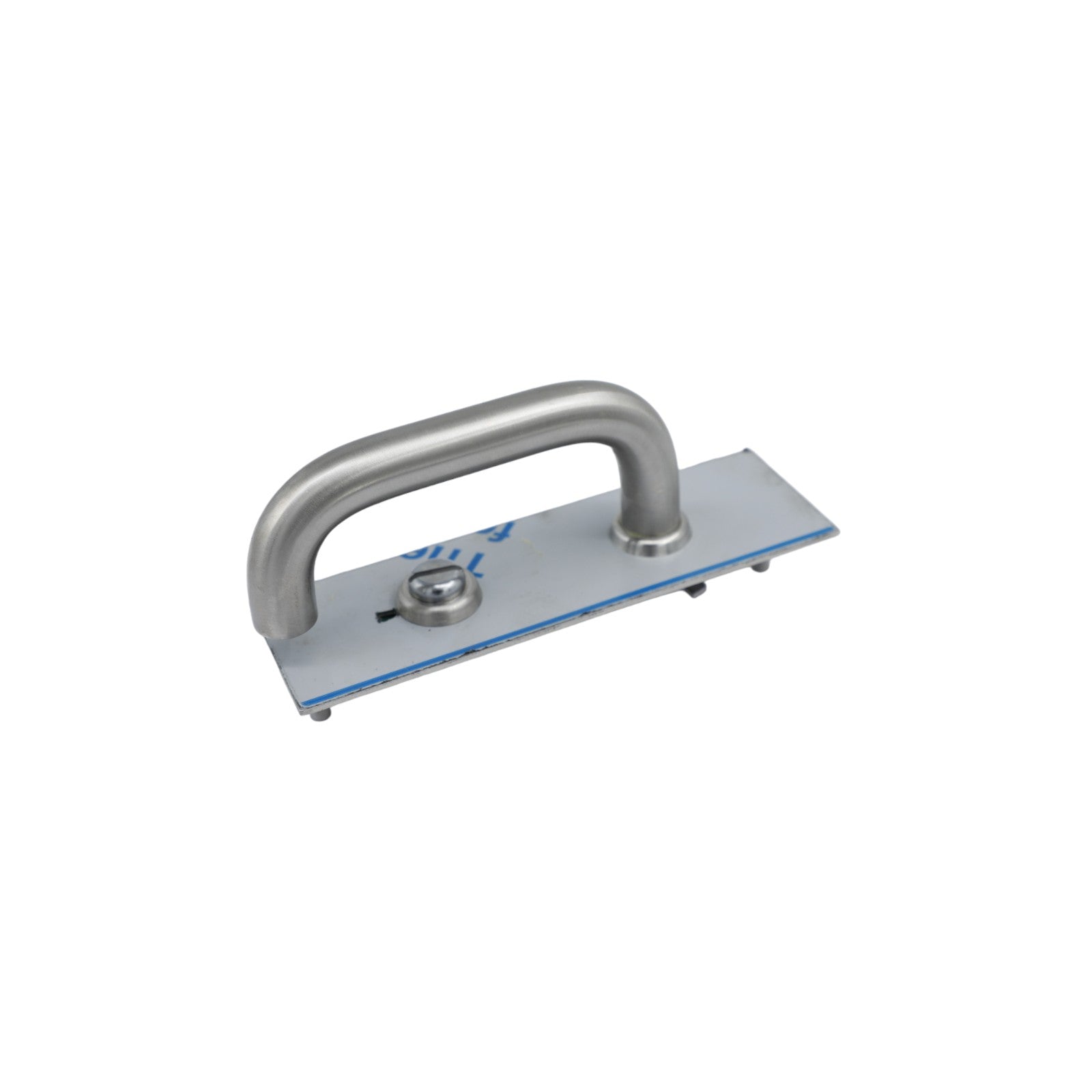

  • P1 – Pull Handle

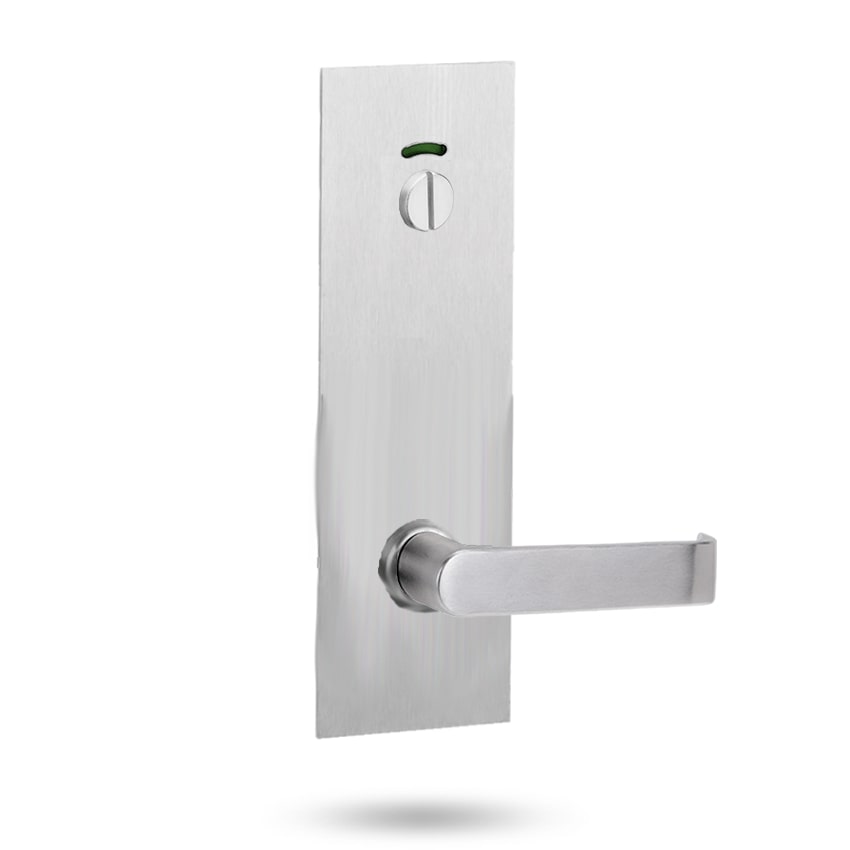

  • Privacy Indicator – Emergency Turn – 59 Lever

  • Privacy Indicator – Emergency Turn – 70 Lever

  • Privacy Indicator – Emergency Turn – 77 Lever

  • Privacy Indicator – Emergency Turn – 77 Lever – Selector

  • Privacy Indicator – Emergency Turn – 90 Lever

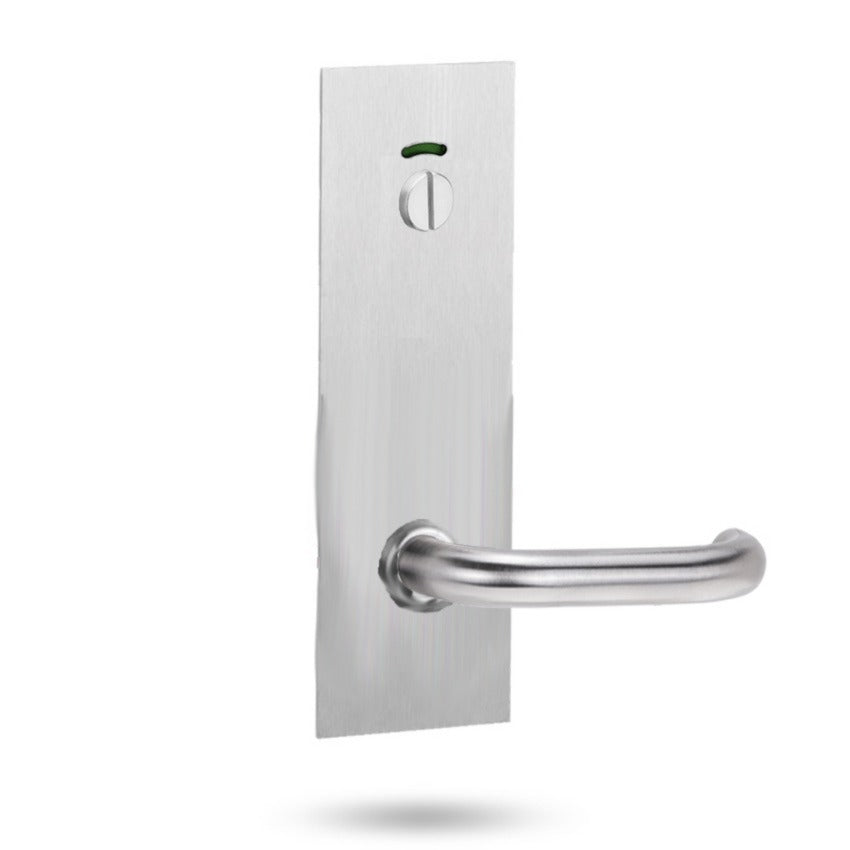

  • Privacy Indicator – Emergency Turn – 96 Lever

  • Privacy Indicator – Emergency Turn – 96 Lever – Selector

  • Privacy Indicator – Emergency Turn – 98 Lever

  • Privacy Indicator Turn – 96 Lever

  • Privacy Indicator Turn – 96 Lever – Selector

  • Turn – 111 Lever

  • Turn – 70 Lever

  • Turn – 96 Lever

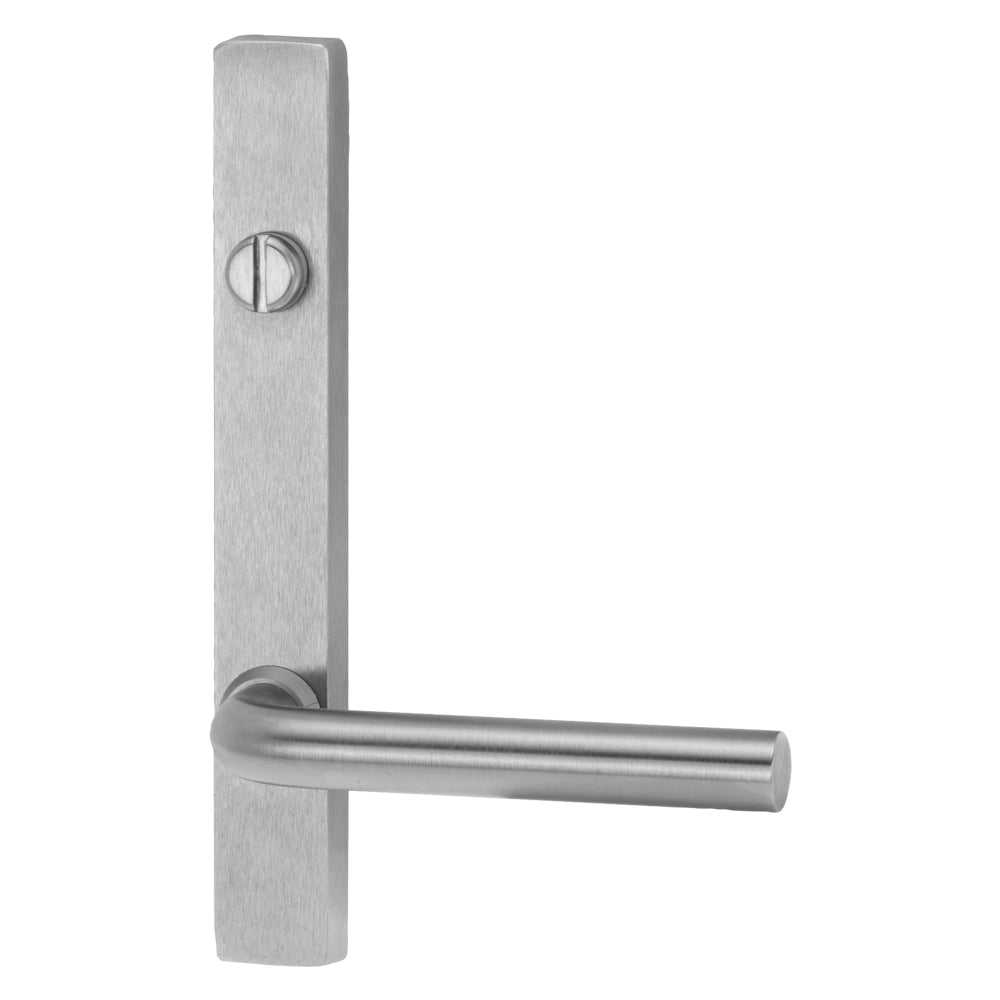

  • Turn – 98 Lever

  • Cylinder Hole – LED – 59 Lever – Interior Plate

  • Cylinder Hole – LED – 96 Lever – Interior Plate

  • Plain Plate – Cylinder

  • Plain Plate – Dual Cylinder

  • Plate – Lever

  • Plate – Lever 155
