2227 Vertical Rod Exit Device Assembly

Von Duprin 2227 Vertical Rod Exit Devices & Accessories

The Von Duprin 2227 range includes reversible vertical rod exit devices for single doors, with standard and fire-rated options in 914 mm and 1220 mm lengths. External rod and latch assembly cover accessories are also available.

Exit Device Features

• Reversible design.
• Field sizable to accommodate different door openings.
• Surface mounting suits doors 19 mm thick and over.
• Through-fix mounting suits doors 44–57 mm thick.
• Suits 111 mm wide stiles with the standard 299F strike.
• 19 mm latch throw with deadlocking.
• Includes a dull black 299F strike and fixing hardware.
• 10-year manufacturer warranty.

1220 mm Device Sizing

The supplied specifications for VDD11367 indicate a minimum door width of 825 mm, based on the standard strike and a 13 mm stop.

Finishes

Exit devices and the external rod are listed in SP28 Aluminium. The latch assembly cover is listed in 689 Aluminium.

Available Variants

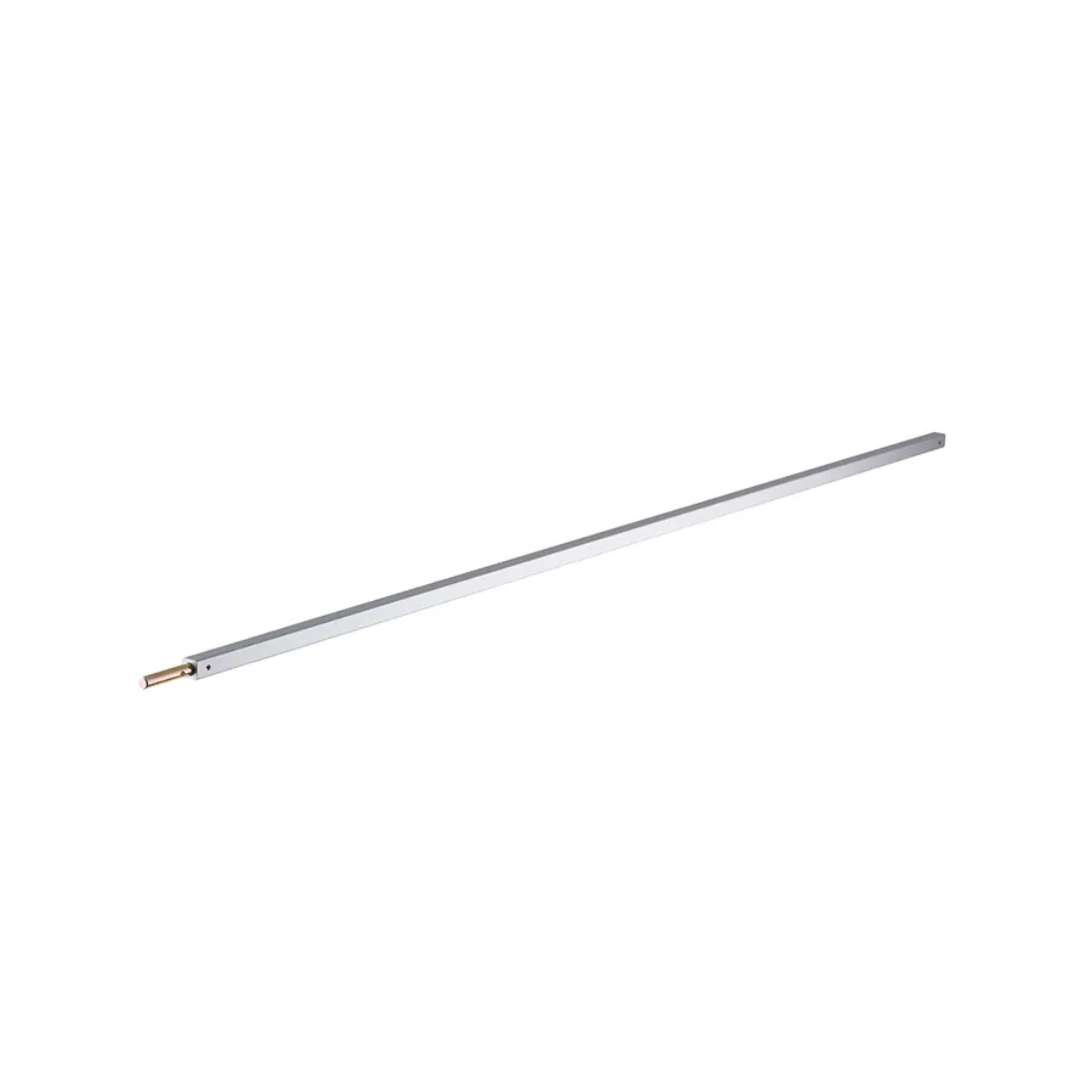

• 2227/27-F External Rod – 914 mm – SP28 – Product Code: VDP26007.
• 2227/9927 Latch Assembly Cover – 689 Aluminium – Product Code: VDP26013.
• 2227EO Vertical Rod Exit Device – 914 mm – SP28 Aluminium – Product Code: VDD11236.

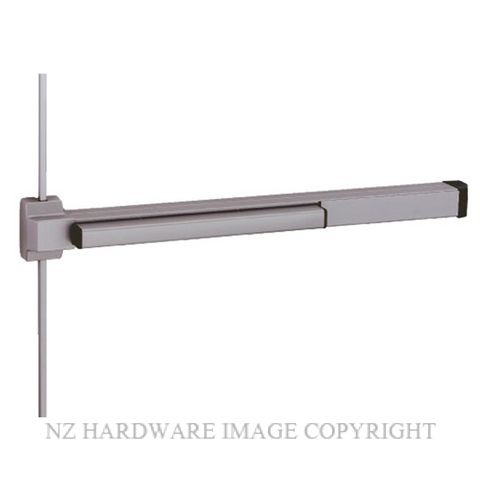

• 2227EO Exit Device – 1220 mm – SP28 Aluminium – Product Code: VDD11504.

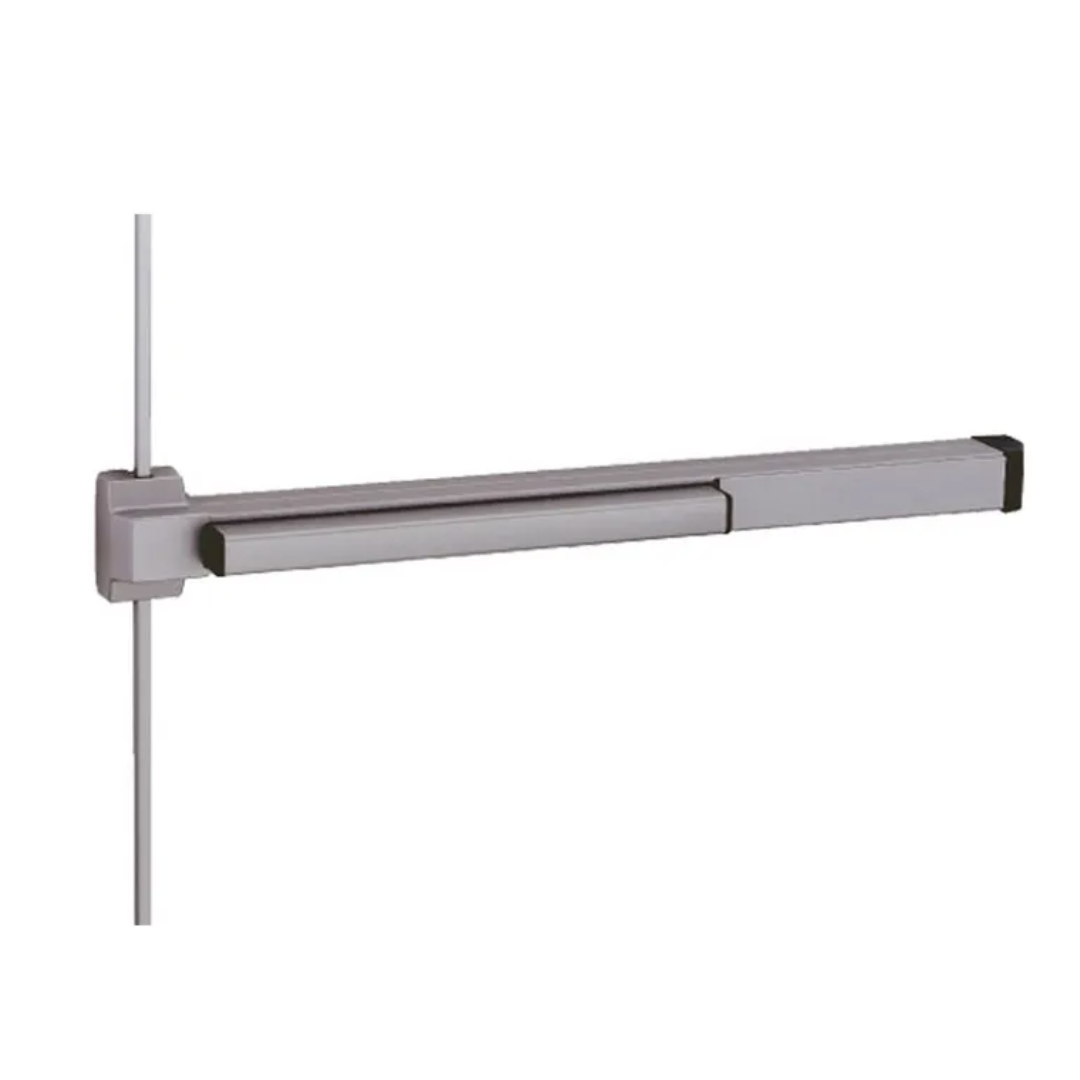

• 2227EO-F Exit Device – 1220 mm – SP28 Aluminium – Product Code: VDD11367.
• 2227EO-F Exit Device – 914 mm – SP28 Aluminium – Product Code: VDD11535.
