219 Interior Plate / Cylinder Hole / Push Outline & Pull Handle Options

$23.59 - $266.17
$90.40
$90.40
SKU: 21907NNAG
$90.40
$90.40

The Lockwood 218 Series Door Furniture is designed for public, commercial, industrial, and institutional buildings, where high-grade and durable fittings are essential. The Push and Pull range provides versatile plate options with engraving available to suit most functional requirements.

Constructed from stainless steel or brass, the 218 Series plate measures 250 x 50 x 2mm with 10mm radius corners. Concealed fixed plates feature studs with internal threads at each corner, while visible fixed plates include matching countersunk holes, installed back-to-back through the door.

Application

Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.

Features

  • Lockwood plate with Pull Handle P2

  • Internal fitting

  • Visible fixing (screws not supplied)

  • No cylinder or turn (unless variant specifies)

  • Non-handed

  • Fire rated up to 2 hours

  • Supplied in trade pack

Plate Dimensions

  • Height: 250mm

  • Width: 50mm

  • Depth: 2mm

  • Cylinder pitch: 64mm

Pull Handle Dimensions

  • Length: 170mm

  • Diameter: 17.5mm

  • Projection: 57mm

  • Finger clearance: 40mm

  • Centres: 152mm

Materials

  • Aluminium / Brass / Stainless Steel

Door Thickness

  • 35 to 45mm standard

  • For 45 to 55mm doors, specify long fixing screws SP2000-208

  • Minimum 40mm for flush pulls back-to-back

Available Variants

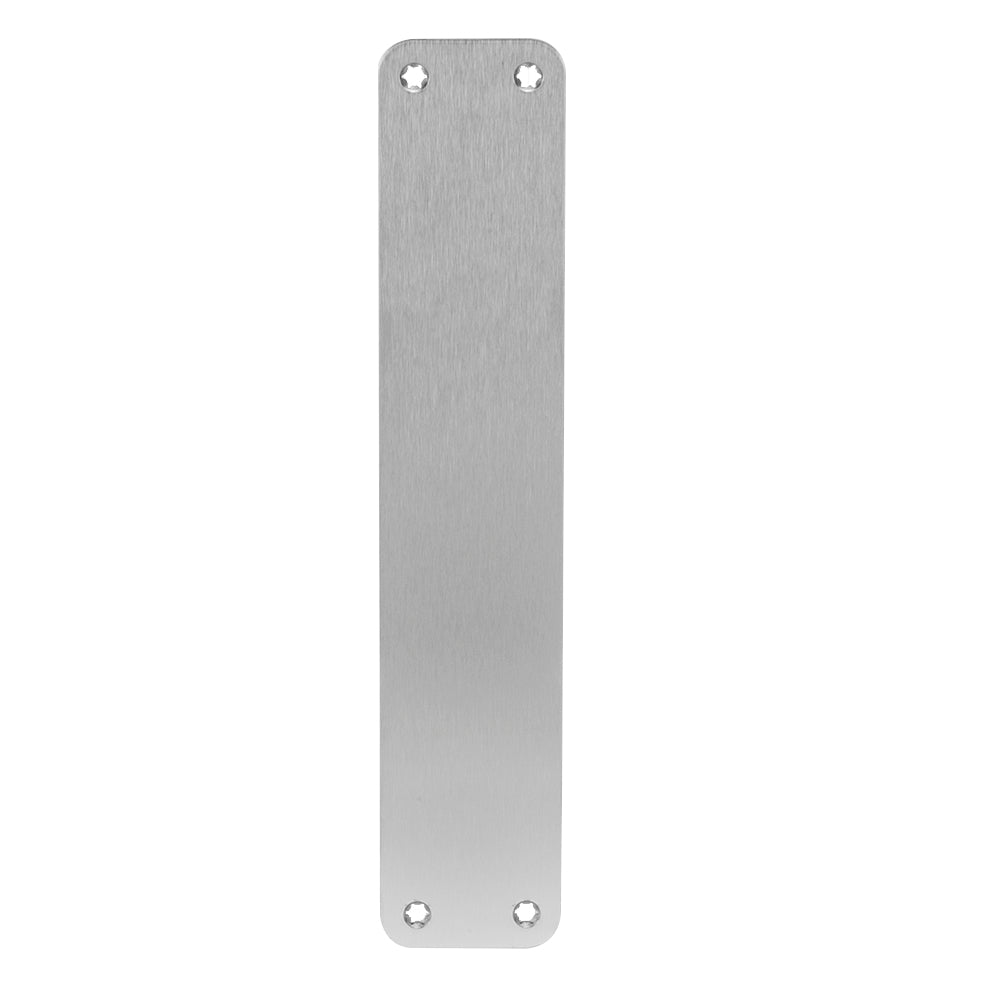

Plate

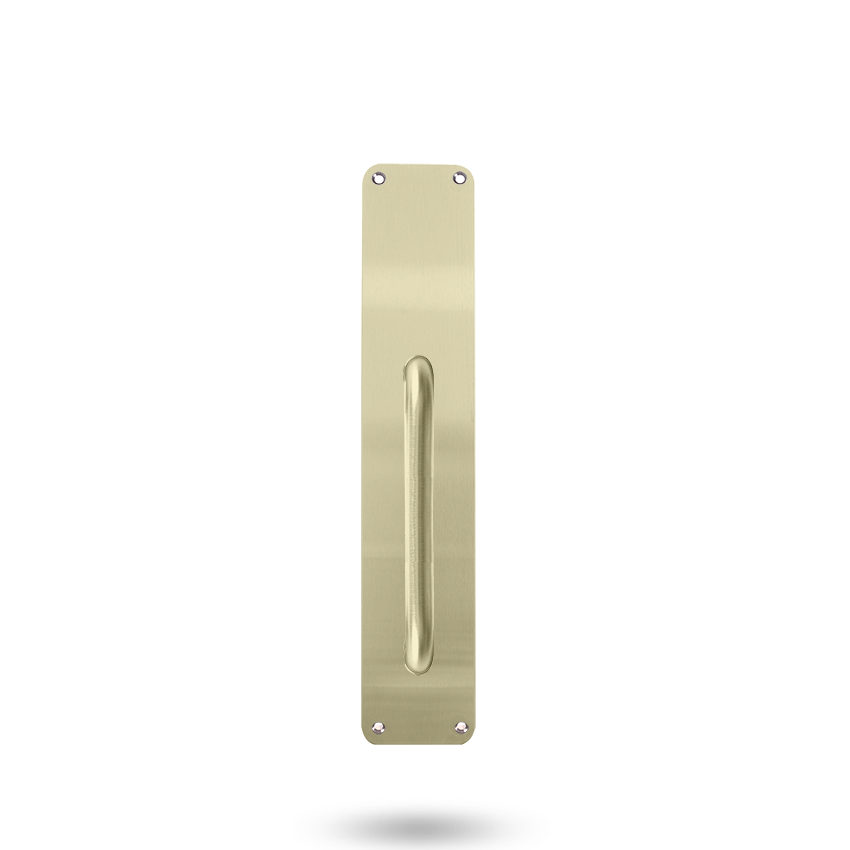

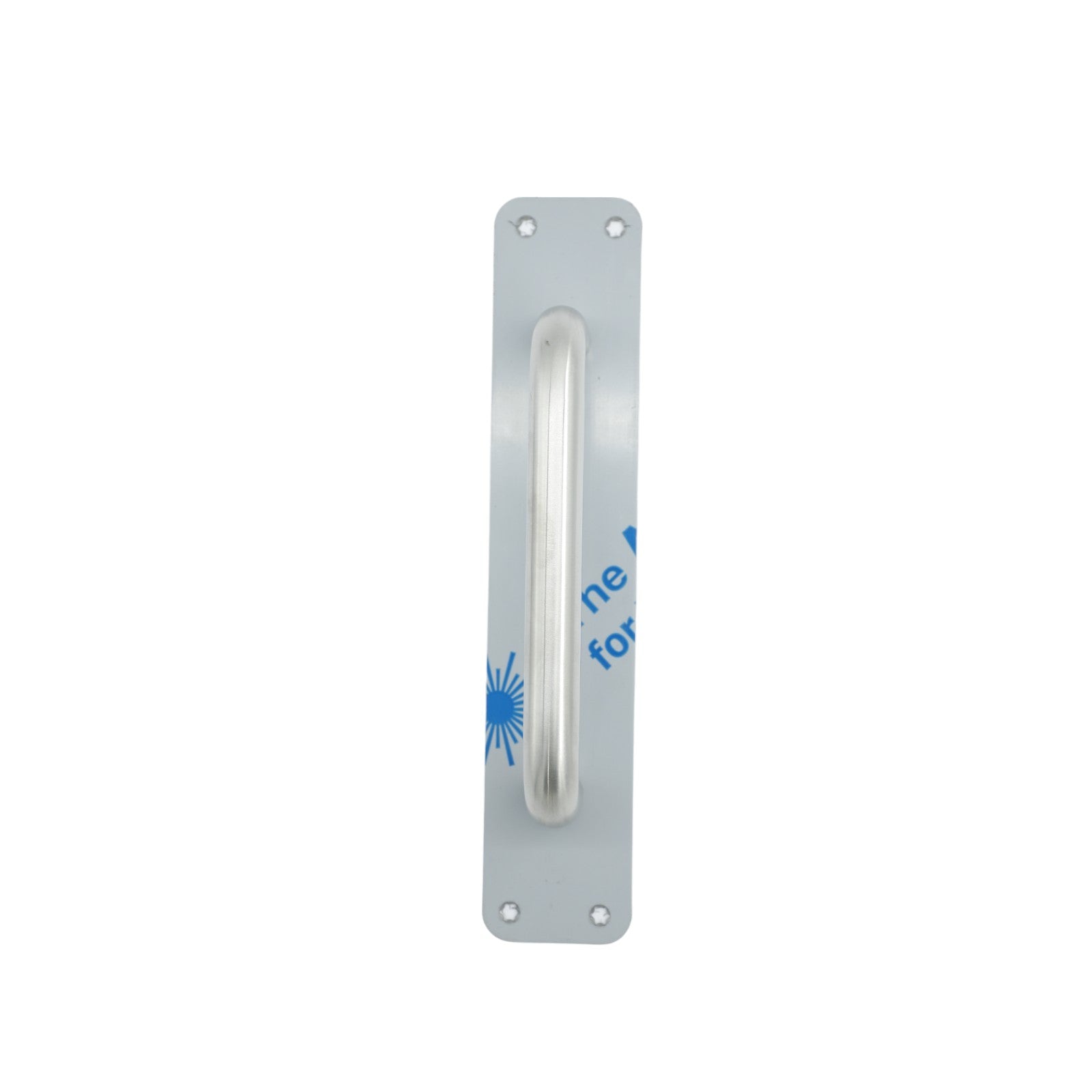

  • Plate – P2 Pull Handle

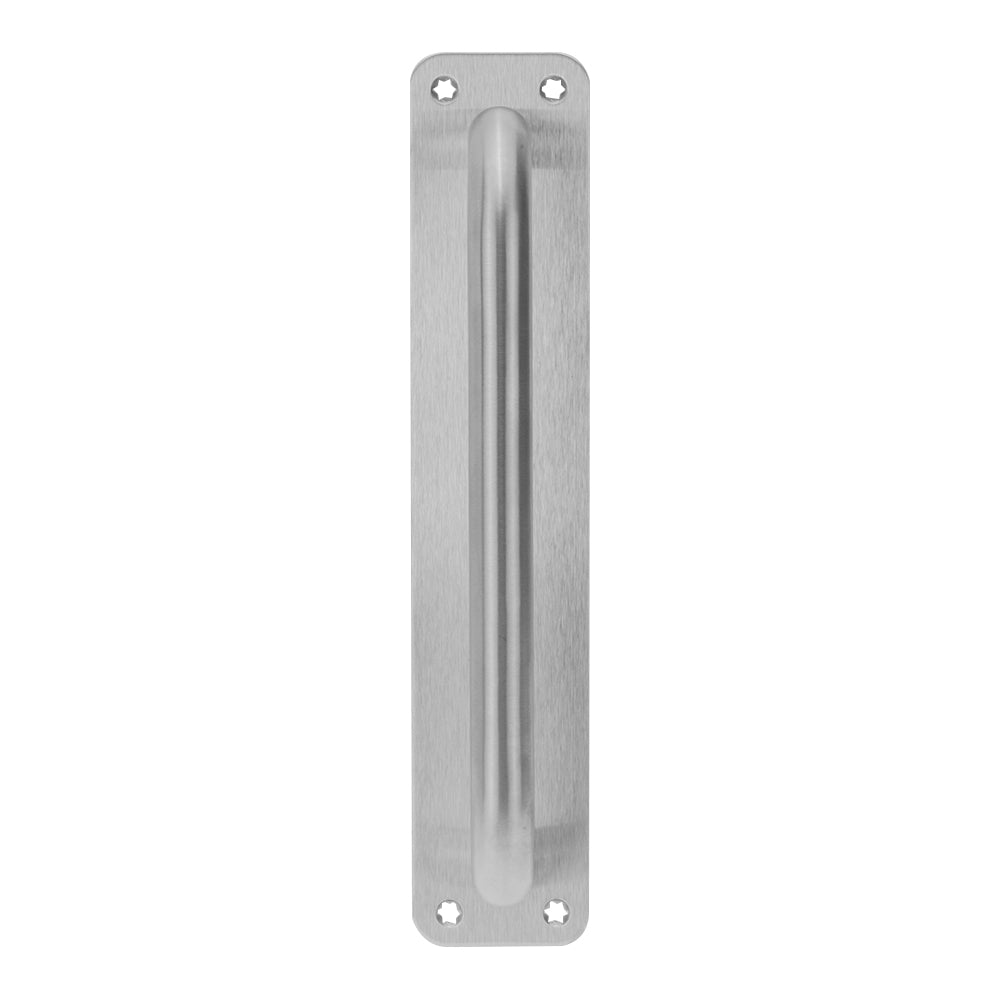

  • Plate – P3 Pull Handle

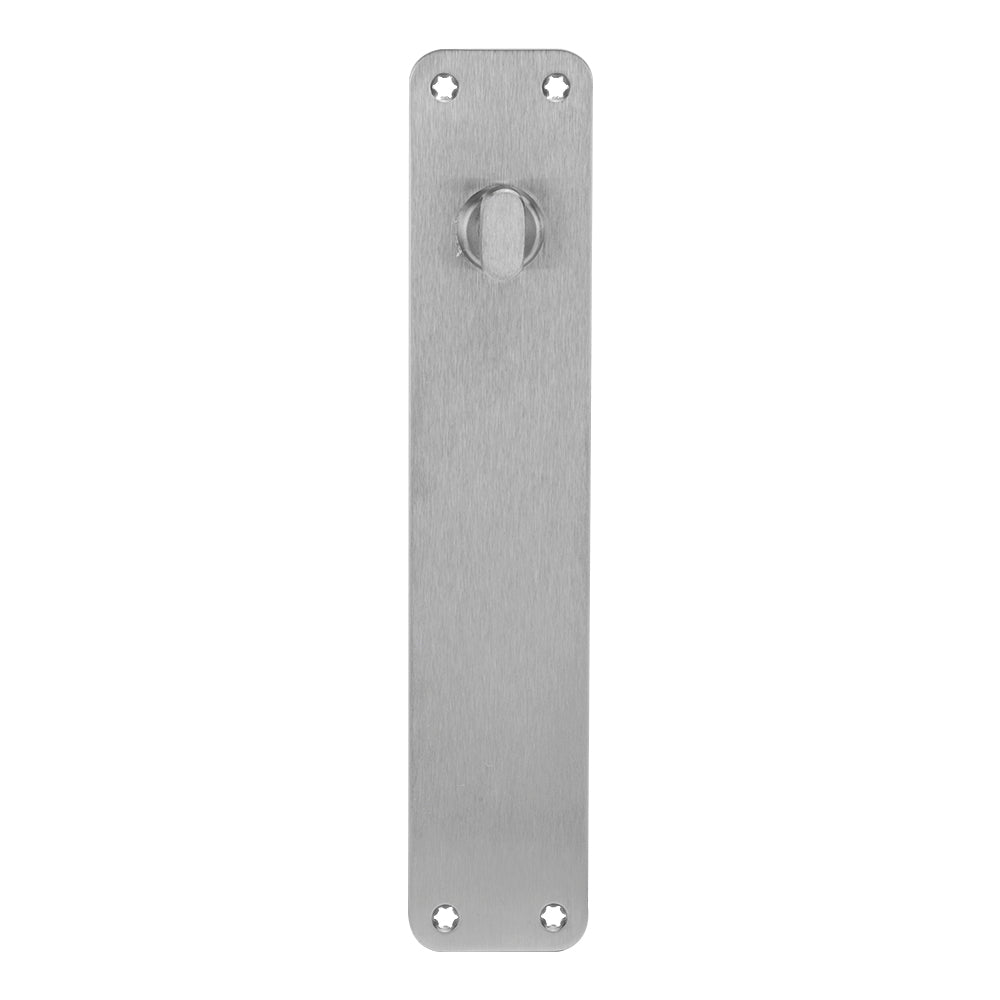

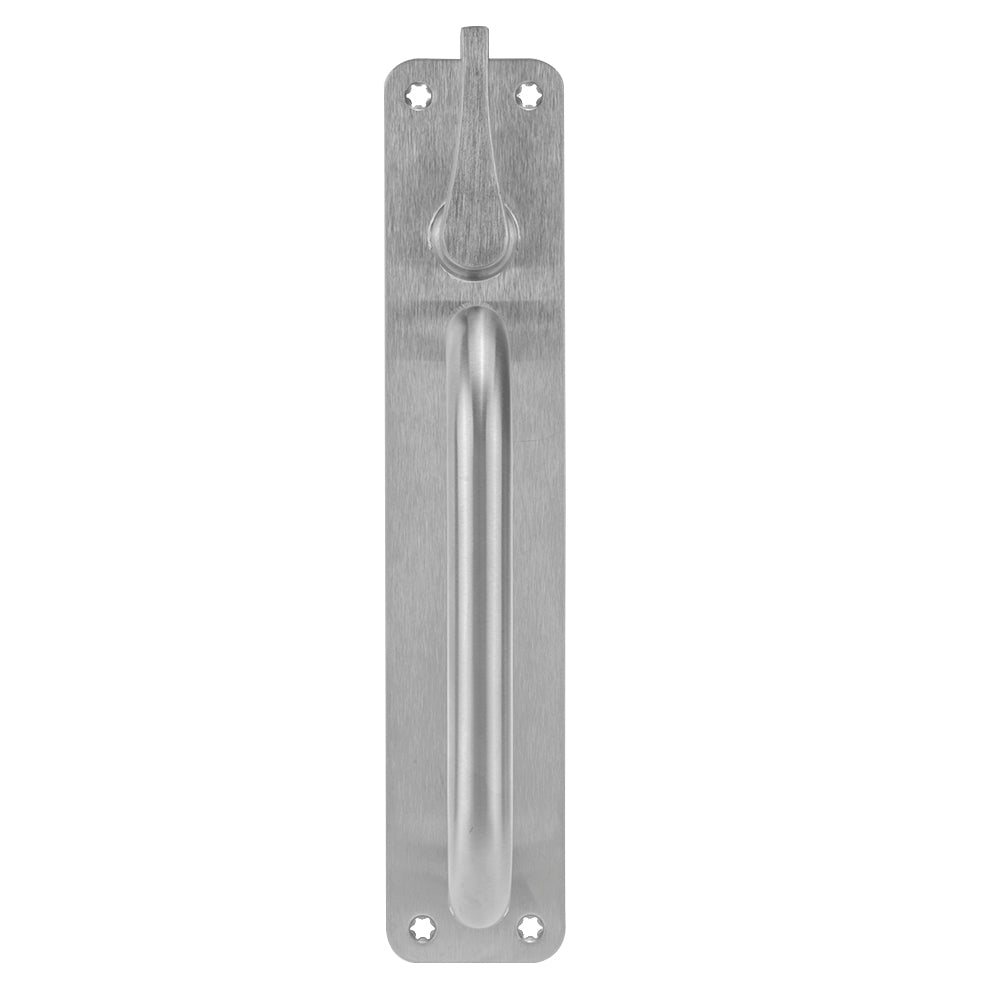

Turn

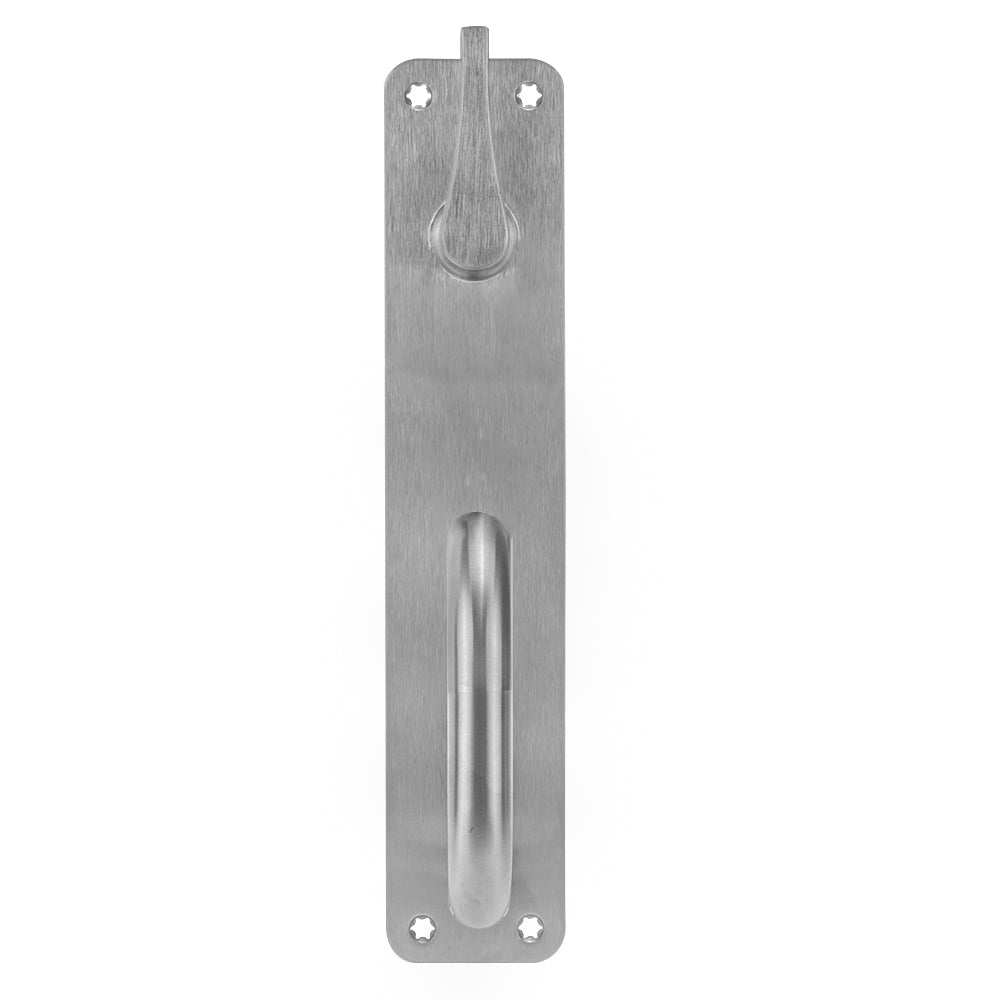

  • Turn – P1 Pull Handle

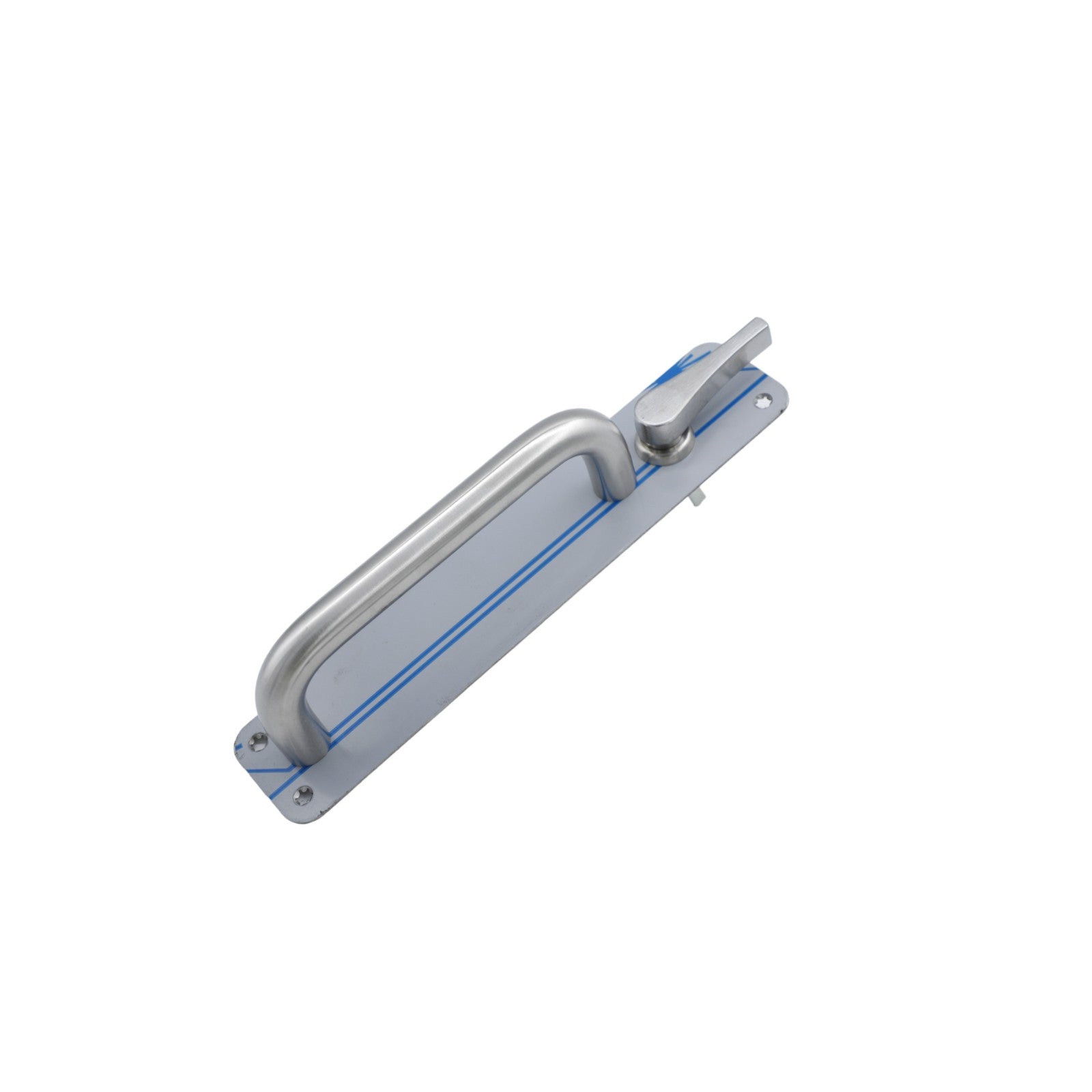

  • Turn – P2 Pull Handle

Disabled Turn Only

  • Disabled Turn – P1 Pull Handle – LH

  • Disabled Turn – P1 Pull Handle – RH

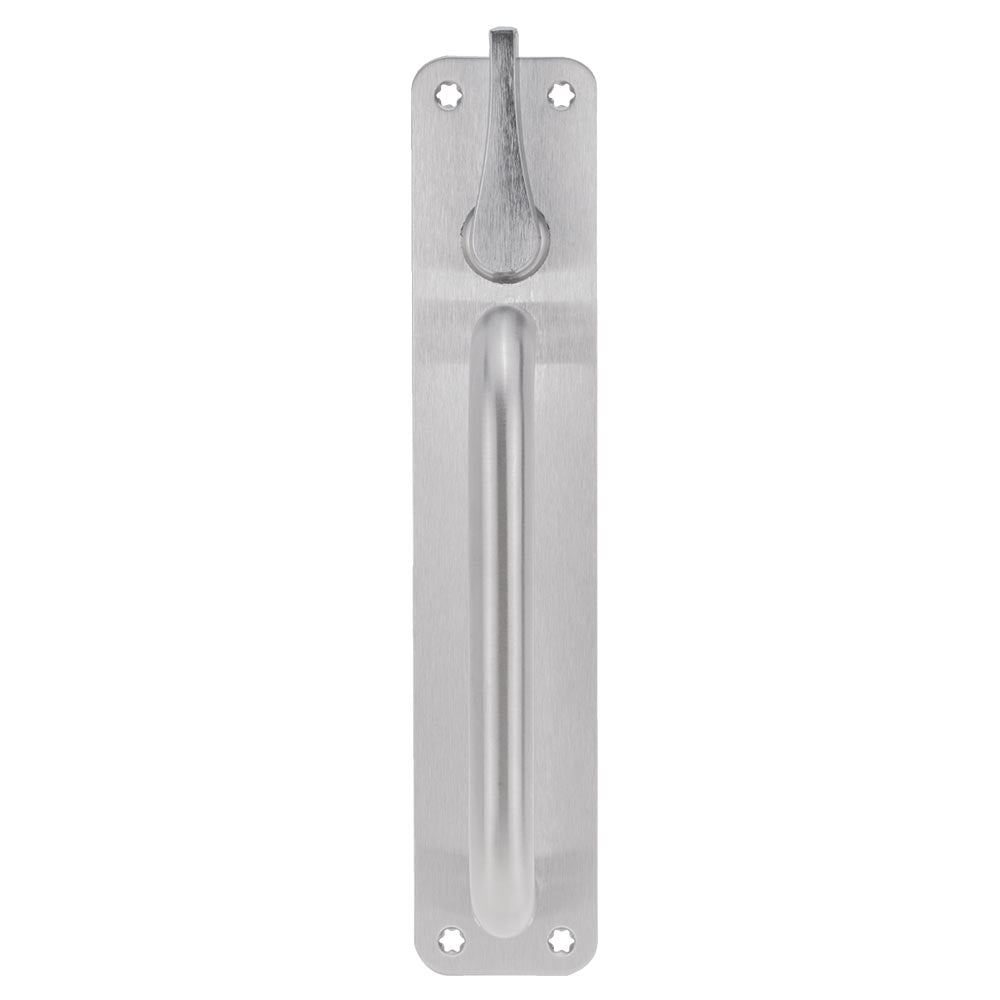

  • Disabled Turn – P2 Pull Handle – LH

  • Disabled Turn – P2 Pull Handle – RH

  • Disabled Turn – P2 Pull Handle – RH – Pentagon

  • Disabled Turn – P2 Pull Handle – Pull Outline – LH

  • Disabled Turn – P2 Pull Handle – Pull Outline – RH

  • Disabled Turn – P2 Pull Handle – Pull Full Infill – LH

  • Disabled Turn – P2 Pull Handle – Pull Full Infill – RH

  • Disabled Turn – Pentagon – LH

Emergency & Offset

  • Emerg Turn – P1 Pull Handle

  • Offset – P1 Pull Handle

  • Offset – P2 Pull Handle

Pull Options

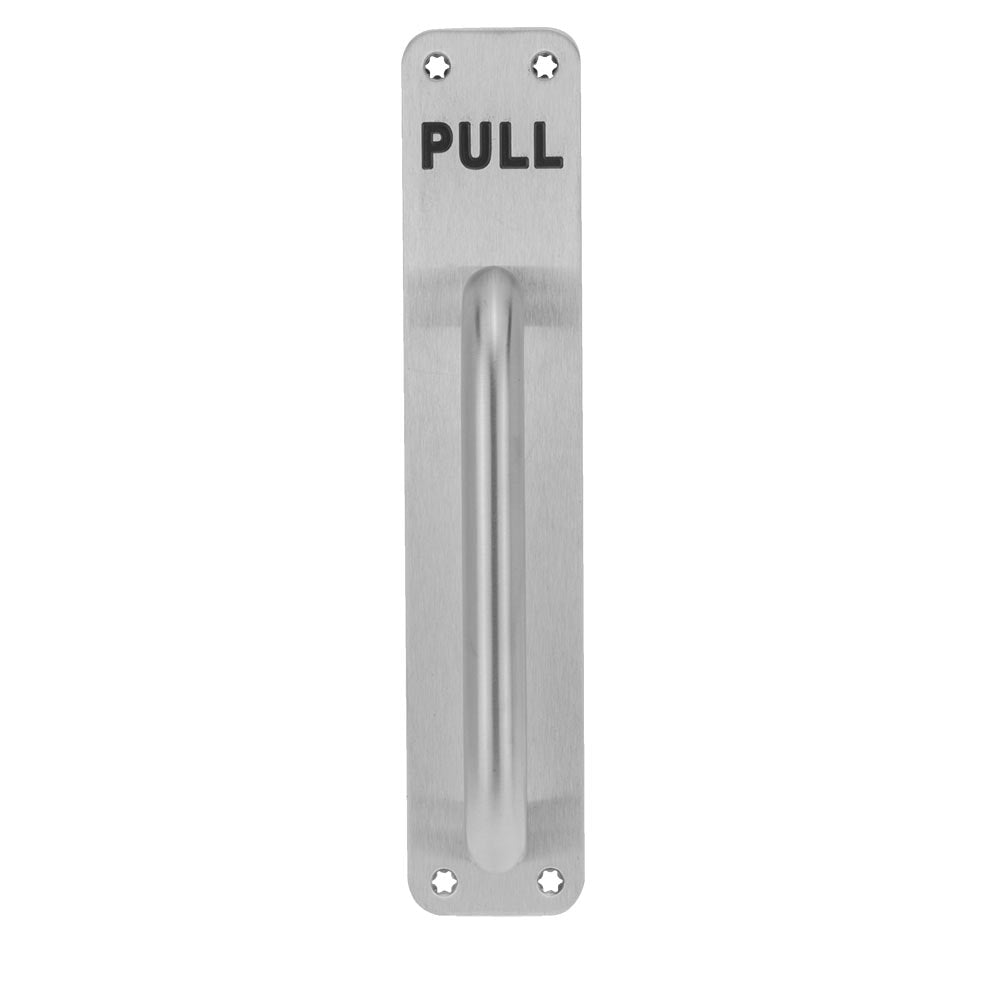

  • Pull Outline – P2 Pull Handle

  • Pull Infill – P2 Pull Handle

  • Pull Infill – P2 Push Handle

Push Outline

  • Push Outline

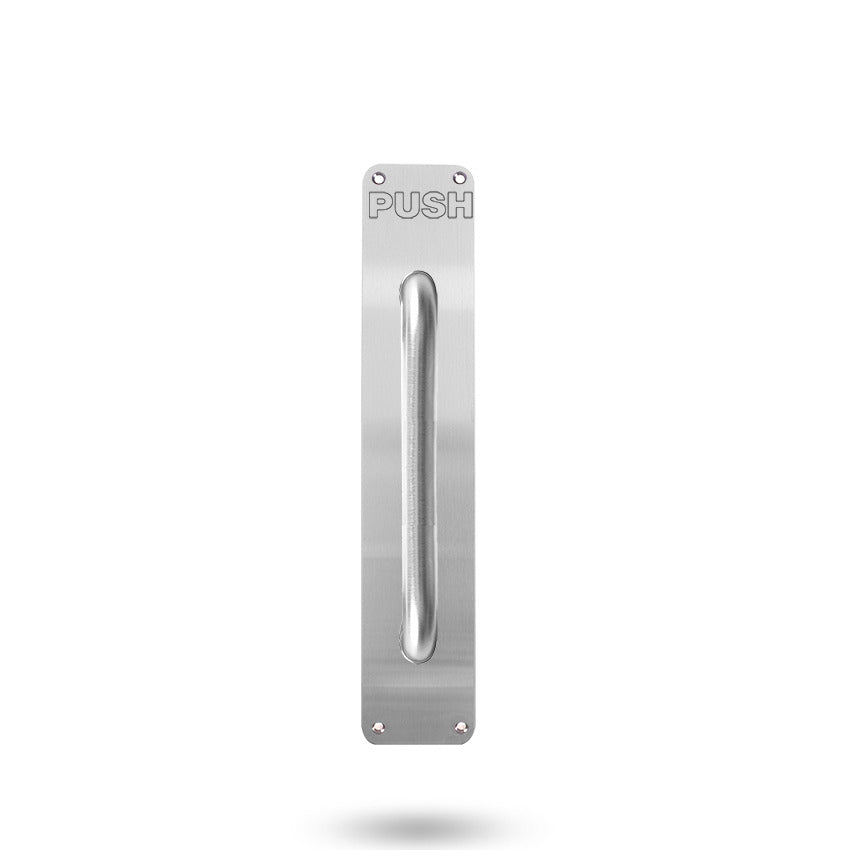

  • Push Outline – P2 Pull Handle

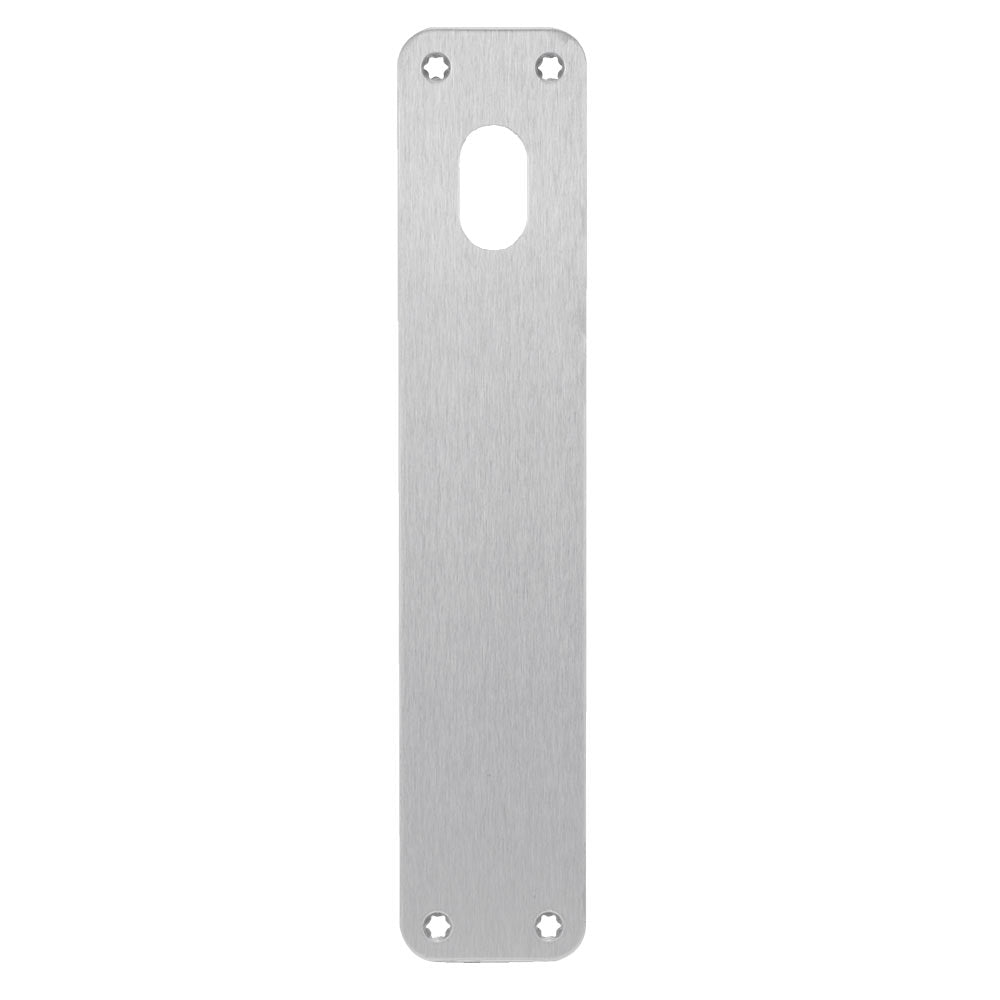

Cylinder Hole

  • Cylinder Hole – P2 Pull Handle

  • Push Outline – Cylinder Hole
