216 Exterior Plate – Pull / Push Options & Privacy Turn

$60.03 - $268.96
$162.35
$162.35
SKU: 21624GN/P1SS
$162.35
$162.35

The Lockwood Artefact range in Aluminium, Brass, and Stainless Steel provides architects and specifiers with a comprehensive selection of slimline door furniture plates. Designed for public, commercial, industrial, and institutional buildings, these plates deliver high-quality, durable fittings. The Push and Pull range offers multiple functional options with engraving available to suit most requirements.

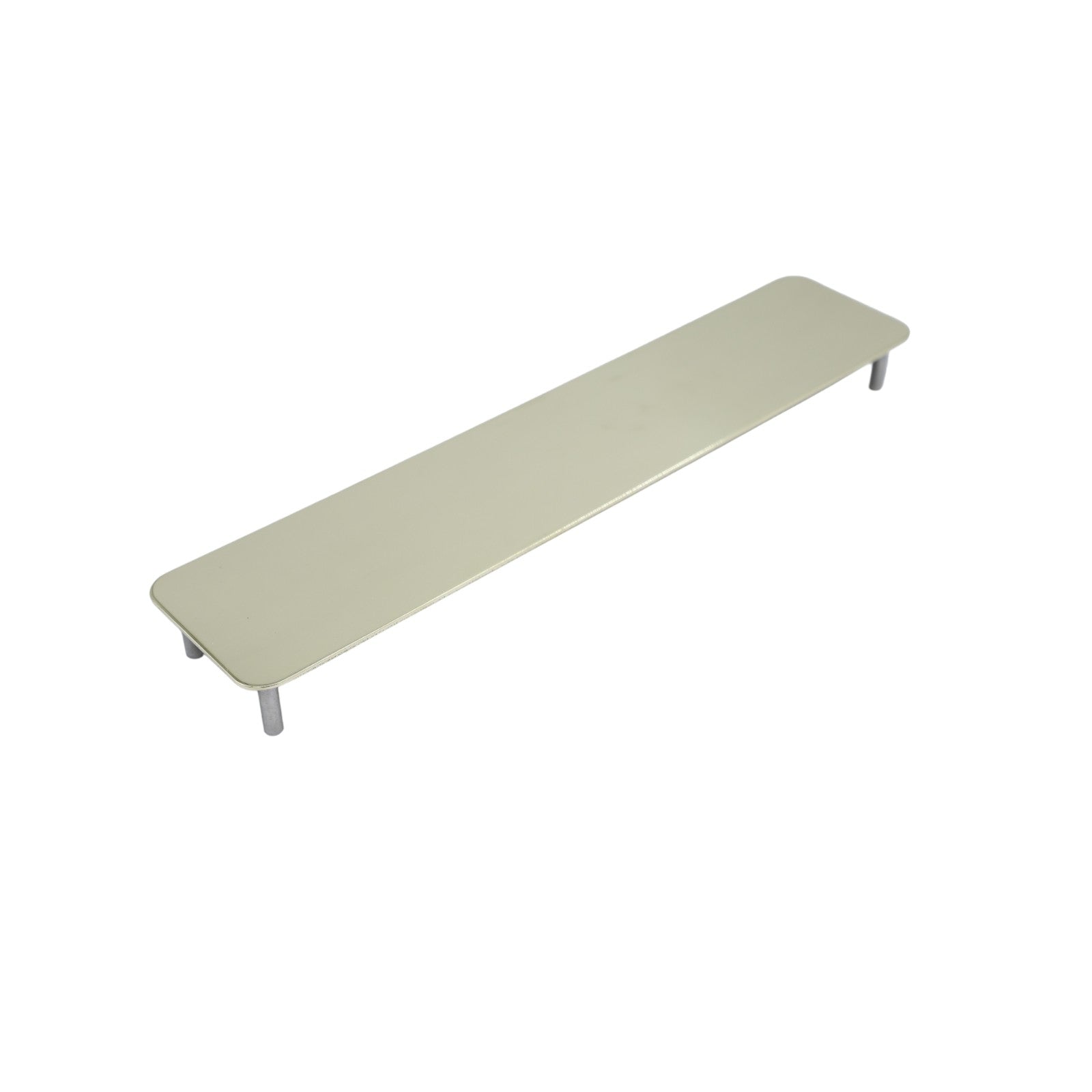

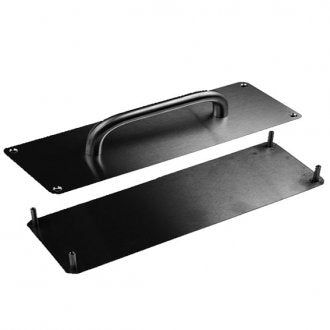

The 216 Series Door Furniture features a 300 x 65 x 2mm stainless steel or brass plate with 10mm radius corners. Concealed fixed plates include studs with internal threads at each corner, while visible plates have matching countersunk holes for secure back-to-back installation through the door.

Application

Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.

Features

  • External plate with P2 Pull Handle

  • Pull handle only

  • Concealed fixing

  • Engraved Pull Outline

  • Non-handed

  • 10mm radius corners

  • Stainless Steel and Brass construction

  • Fire rated up to 2 hours

  • Supplied in trade pack

Plate Dimensions

  • Length: 300mm

  • Width: 65mm

  • Thickness: 2mm

Pull Handle Dimensions

  • Diameter: 17.5mm

  • Finger Clearance: 40mm

  • Fixing Centres: 152mm

Door Thickness

  • 35 to 45mm standard

  • For doors 45 to 55mm thick, specify long fixing screws SP2000-208

  • Minimum 40mm for flush pulls back-to-back

Available Variants

  • Pull Outline – P1 Pull Handle

  • Pull Outline – P2 Pull Handle

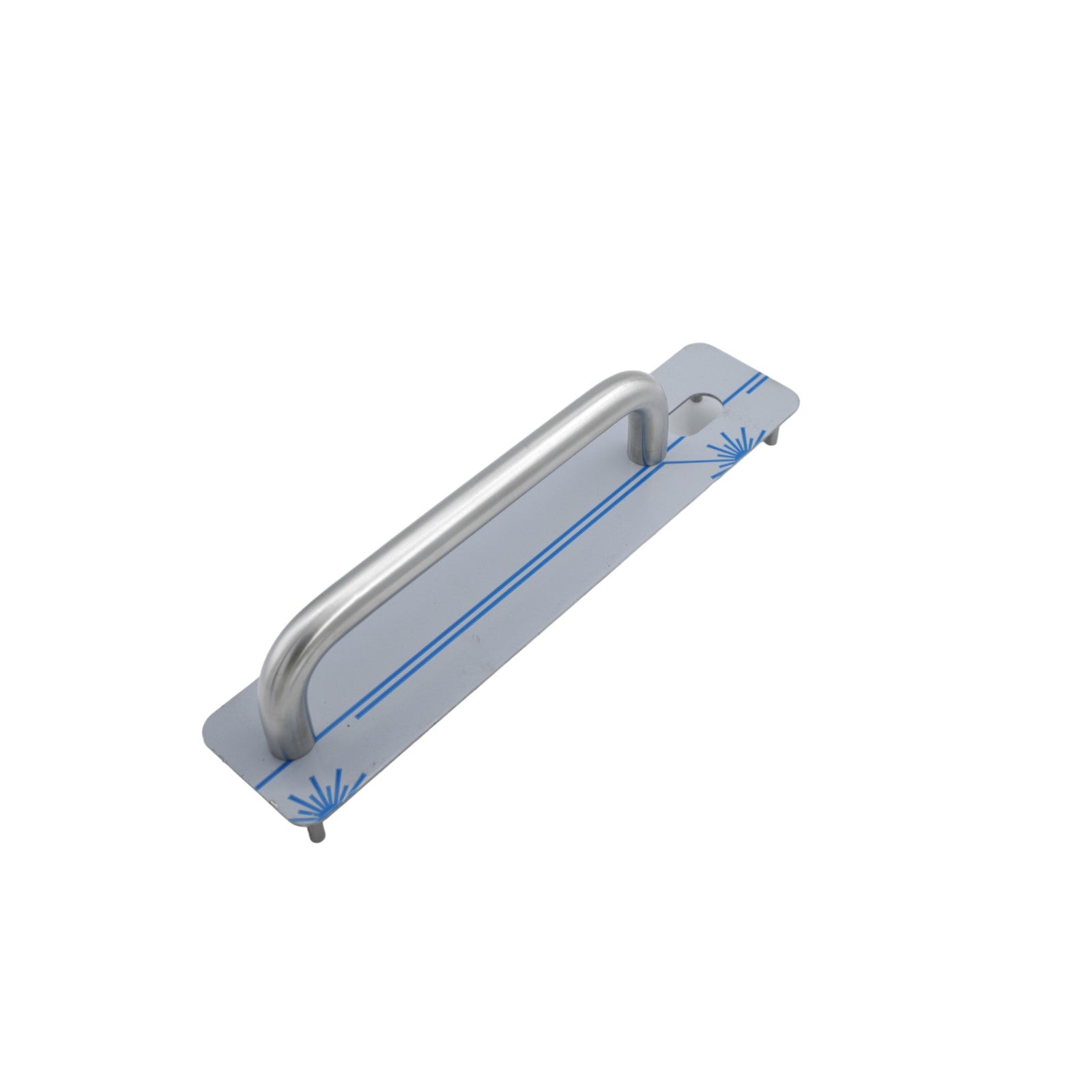

  • Pull Outline – P3 Pull Handle

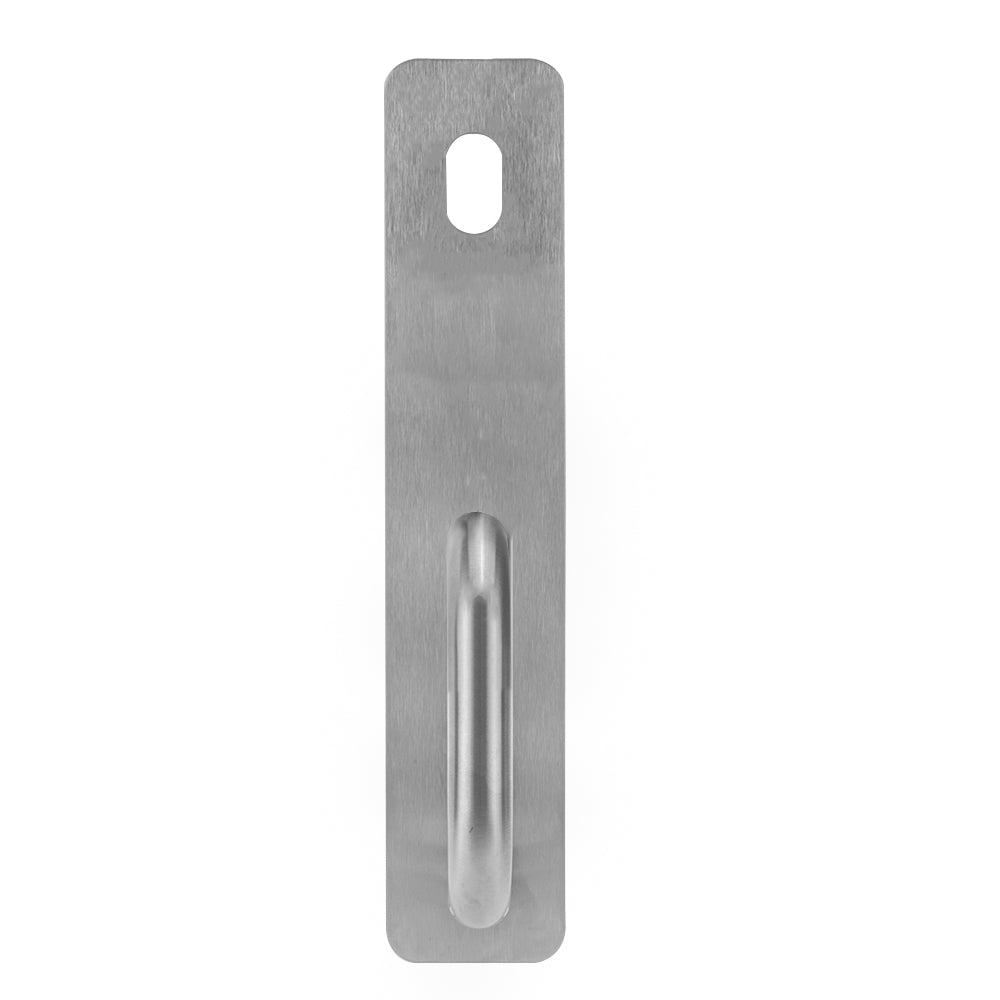

  • Pull Outline – Cylinder Hole – P1 Pull Handle

  • Push Full Infill – P3 Pull Handle

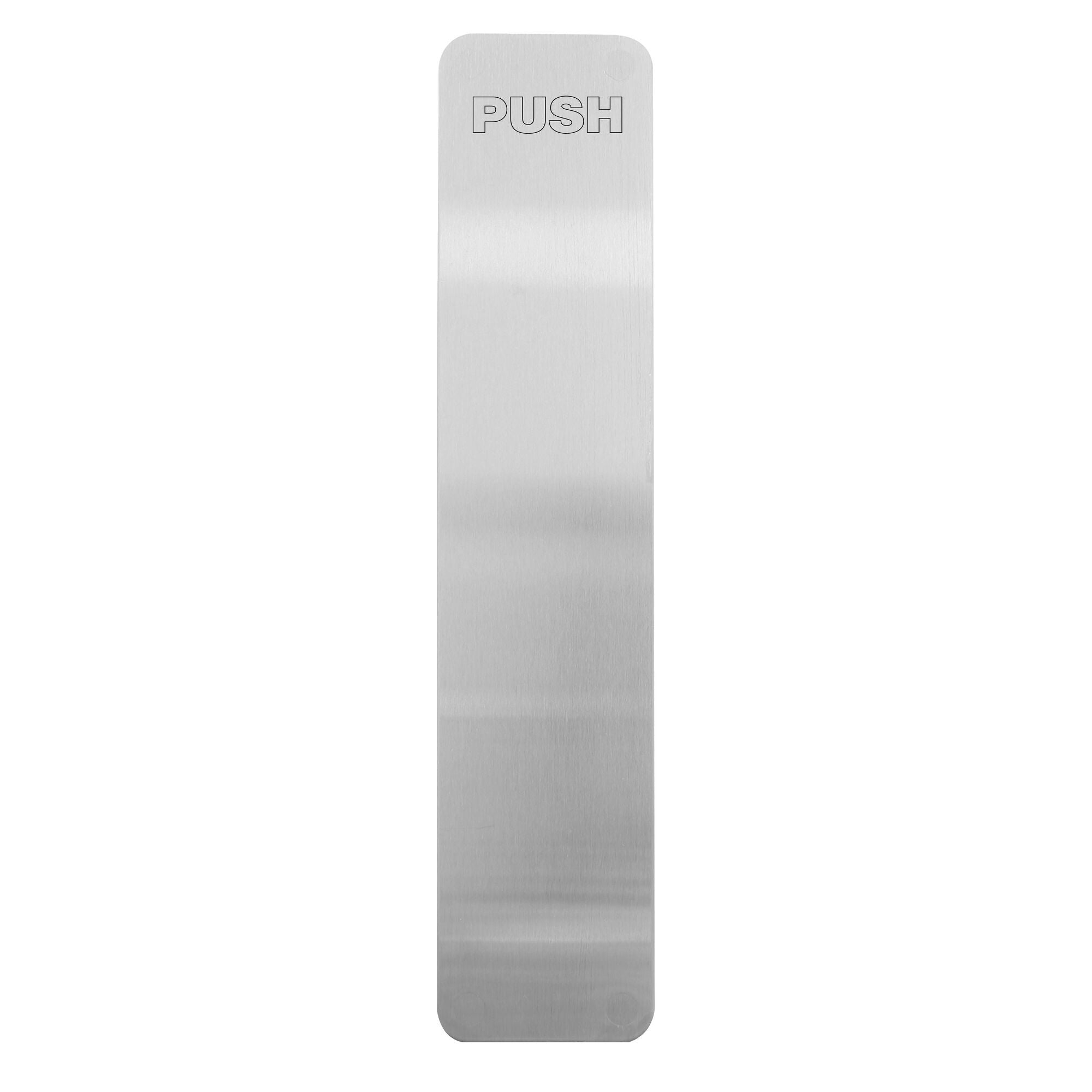

  • Push Outline

  • Push Outline – P2 Pull Handle

  • Push Outline – Privacy Emergency Turn

  • Cylinder Hole + Push Text Outline

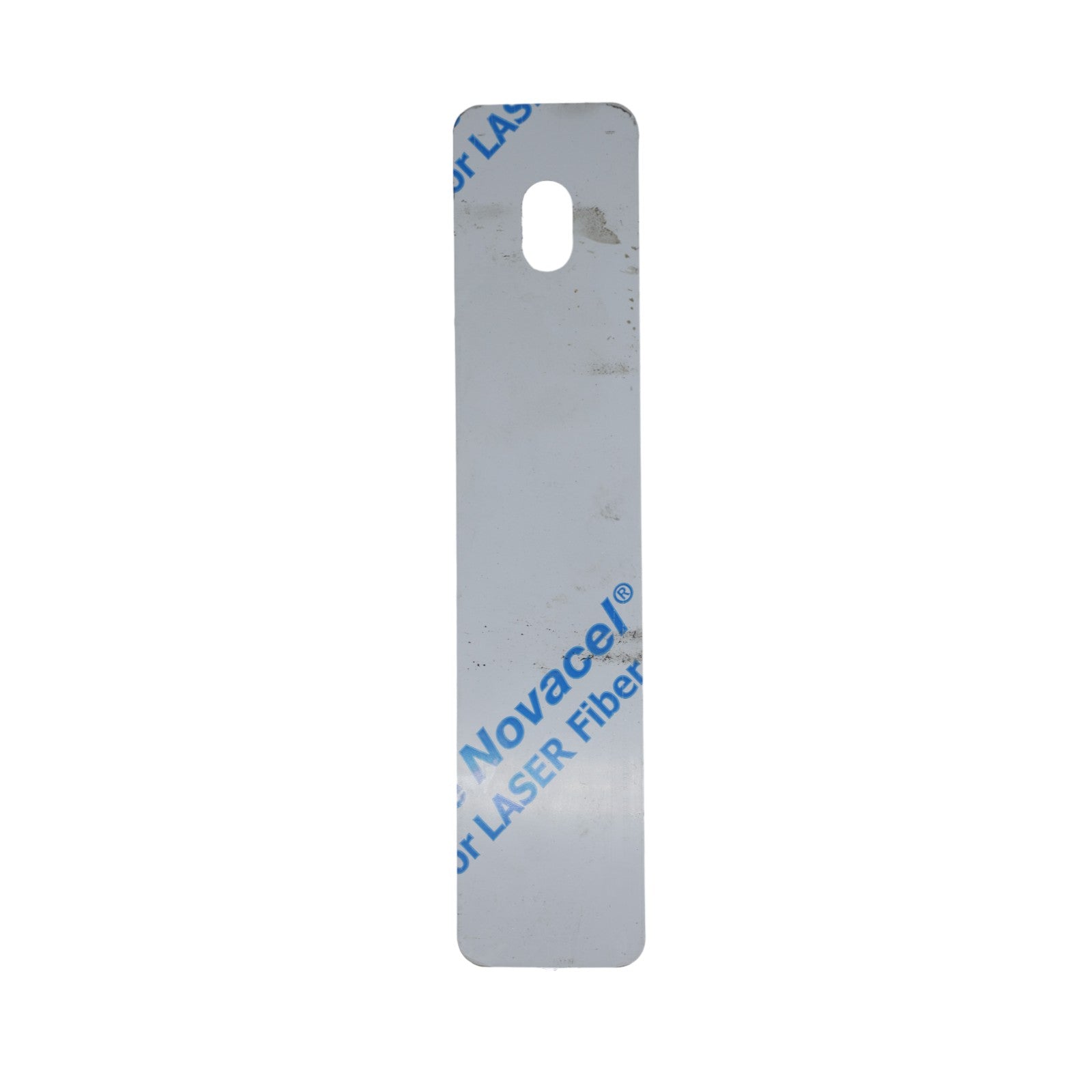

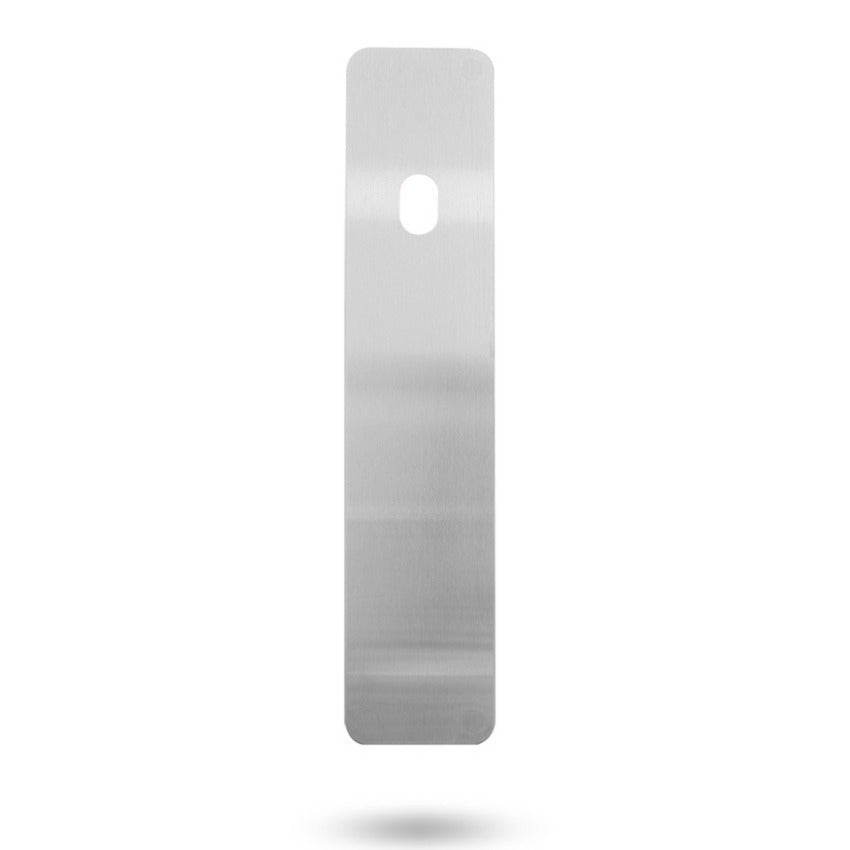

  • Cylinder Hole

  • Cylinder Hole – P1 Pull Handle

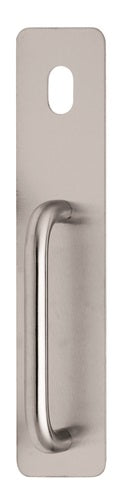

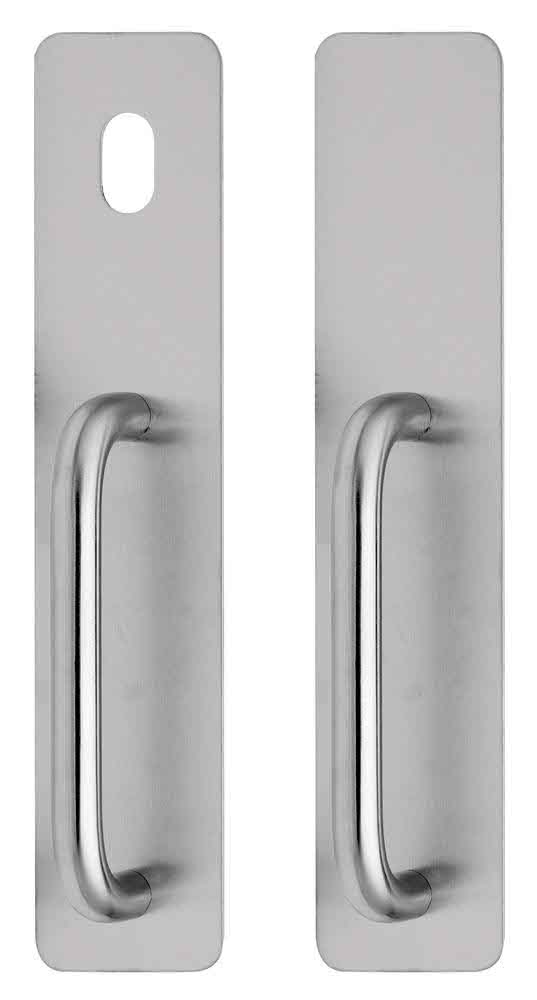

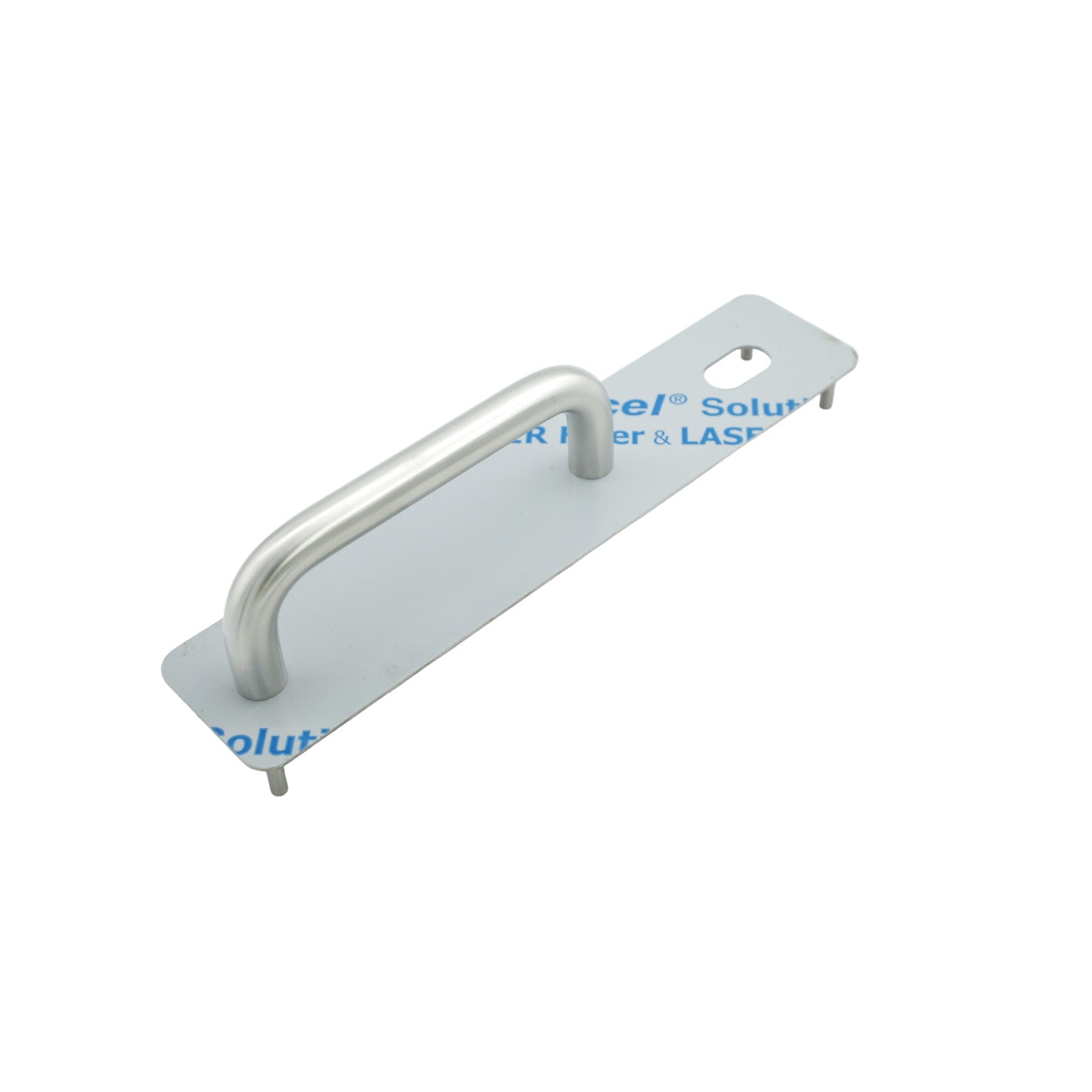

  • Cylinder Hole – P2 Pull Handle

  • Cylinder Hole – P3 Pull Handle

  • Offset – P2 Pull Handle

  • Privacy Indicator – Emergency Turn – P2 Pull Handle

  • Privacy Indicator – Emergency Turn – P3 Pull Handle

  • Privacy Indicator Turn – P2 Pull Handle

  • Privacy Indicator – Emergency Turn

  • Turn

  • Turn – P2 Pull Handle

  • Push Pull Full Set – Concealed Fix – PK=10

  • Unisex Symbol
