216 Ext Plate / Privacy Indicator / Emergency Turn / Corporate Engraving

$67.84 - $333.73
Tax included. Shipping calculated at checkout.
$297.36
$297.36
SKU: 21613QNSS
$297.36
$297.36

The Lockwood Artefact range in Aluminium, Brass, and Stainless Steel offers architects and specifiers a complete selection of slimline door furniture plates. Designed for public, commercial, industrial, and institutional buildings, these plates provide high-grade, durable fittings. The Push and Pull range offers multiple functional options with engraving available to suit diverse requirements.

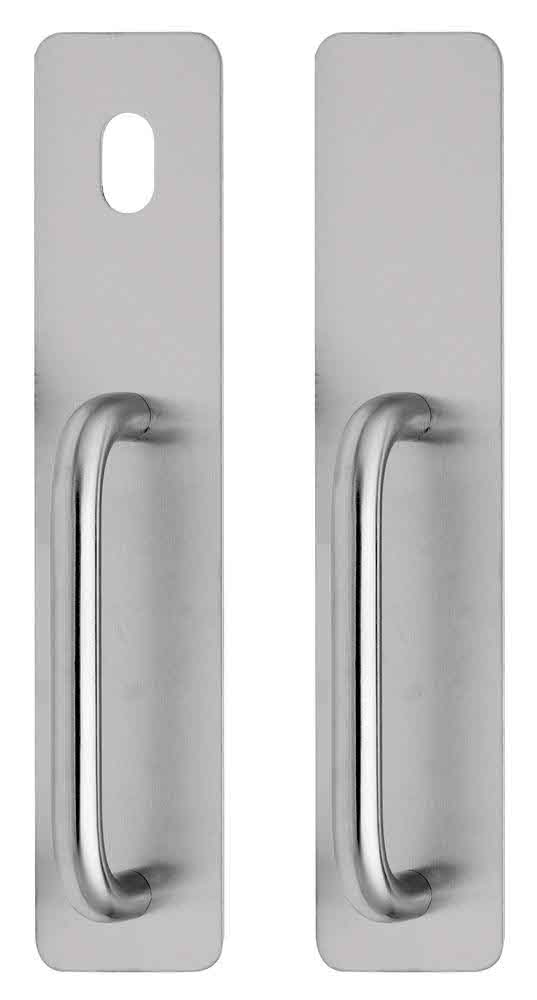

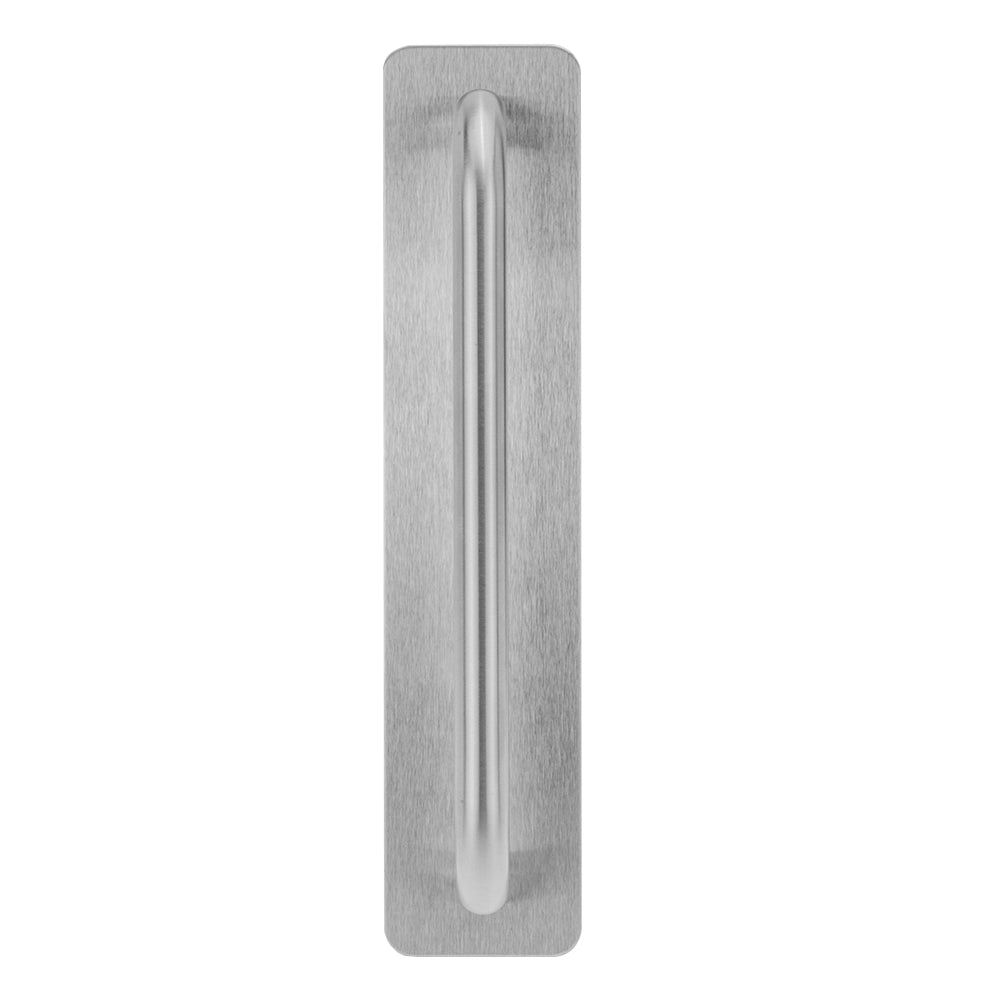

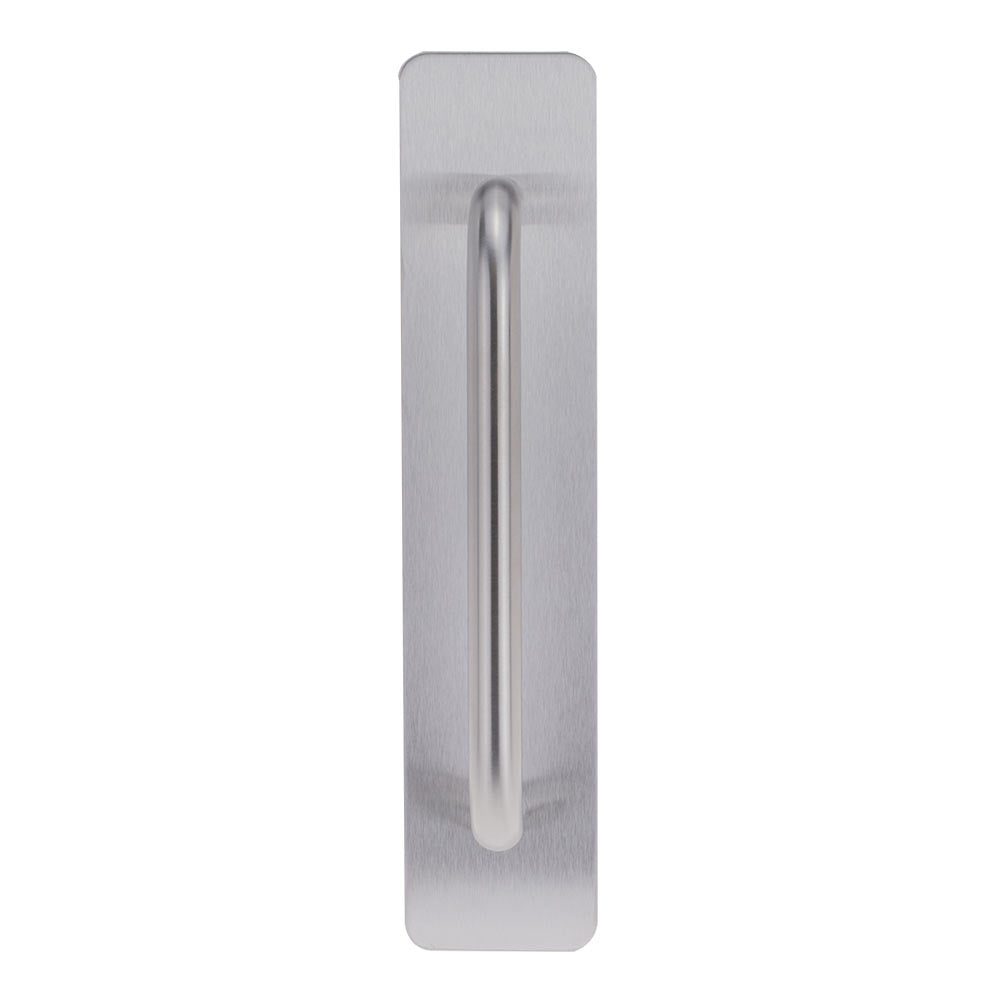

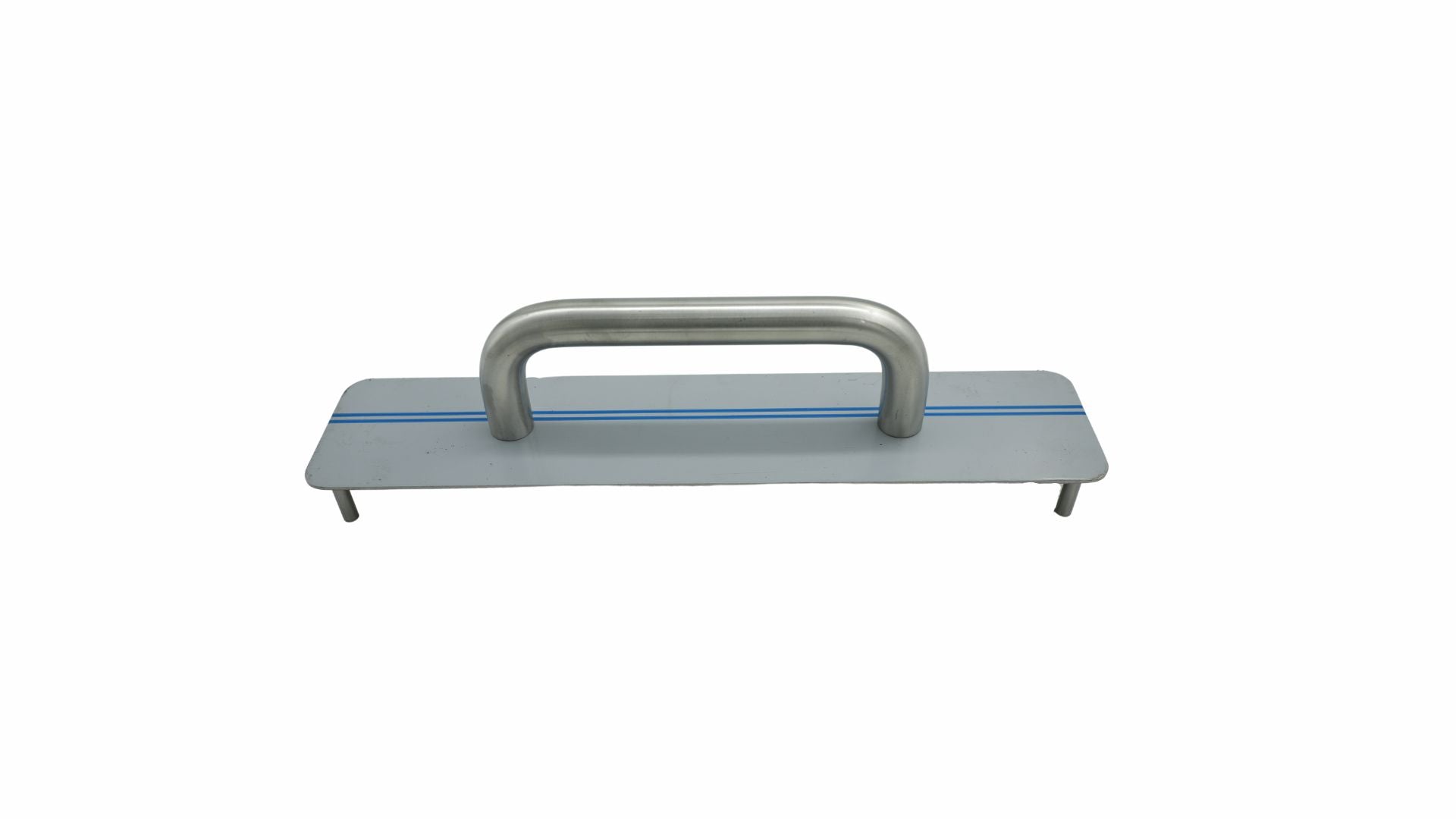

The 216 Series Door Furniture features a 300 x 65 x 2mm stainless steel or brass plate with 10mm radius corners. Concealed fixed plates have studs with internal threads at each corner, while visible plates include countersunk holes for secure back-to-back installation through the door.

Application

Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.

Features

  • External plate with P3 Pull Handle

  • Pull handle only

  • Concealed fixing

  • Non-handed

  • No engraving (corporate engraving available on selected variants)

  • 10mm radius corners

  • Stainless Steel and Brass construction

  • Fire rated up to 2 hours

  • Supplied in trade pack

Plate Dimensions

  • Length: 300mm

  • Width: 65mm

  • Thickness: 2mm

Pull Handle Dimensions

  • Diameter: 17.5mm

  • Finger Clearance: 40mm

  • Fixing Centres: 203mm

Door Thickness

  • 35 to 45mm standard

  • For doors 45 to 55mm thick, specify long fixing screws SP2000-208

  • Minimum 40mm for flush pulls back-to-back

Available Variants

  • EXT PLATE – PRIV INDICATOR EMERG TURN – CORPORATE ENGRAVING

  • EXT PLATE – PULL OUTLINE – PRIV IND EMERG TURN – P2 PULL HANDLE

  • EXT PLATE – PUSH OUTLINE – PRIV IND EMERG TURN – P1 PULL HANDLE

  • EXT PLATE – PUSH OUTLINE – PRIV IND EMERG TURN – P2 PULL HANDLE

  • EXTERIOR PLATE

  • EXTERIOR PLATE – 38 PULL HANDLE

  • EXTERIOR PLATE – P1 PULL HANDLE

  • EXTERIOR PLATE – P2 PULL HANDLE

  • EXTERIOR PLATE – P3 PULL HANDLE

  • EXTERIOR PLATE – P3 PULL HANDLE – MISC TEXT

  • EXTERIOR PLATE – P4 PULL HANDLE

  • EXTERIOR PLATE – DISABLED SYMBOL OUTLINE

  • EXTERIOR PLATE – ENGRAVED CORPORATE ENGRAVING

  • EXTERIOR PLATE – ENGRAVED FEMALE SYMBOL FULL INFILL

  • EXTERIOR PLATE – ENGRAVED MALE SYMBOL FULL INFILL

  • EXTERIOR PLATE – FEMALE SYMBOL OUTLINE

  • EXTERIOR PLATE – FEMALE TEXT OUTLINE

  • EXTERIOR PLATE – MALE SYMBOL OUTLINE

  • EXTERIOR PLATE – MALE TEXT OUTLINE

  • EXTERIOR PLATE – PULL OUTLINE

  • EXT PLATE – DIS OUTLINE – PRIV IND EMERG TURN – P2 PULL HANDLE

  • EXT PLATE – DISABLED SYMBOL OUTLINE – PRIV INDICATOR EMERG TURN

  • EXT PLATE – FEMALE SYMBOL OUTLINE – PRIV INDICATOR EMERG TURN

  • EXTERIOR PLATE – P2 PULL HANDLE – PUSH FULL INFILL SAME

  • EXTERIOR PLATE – EMERG TURN

  • EXTERIOR PLATE – ENGRAVED TEXT PUSH FULL INFILL

  • EXTERIOR PLAIN PLATE

  • EXTERIOR PLATE – MALE TEXT OUTLINE
