203 Series Plates – Full Infill, Standard, Cyl Hole & Handle Variants

$105.86 - $446.89
$287.95
$287.95
SKU: 20305WN/77LSS
$287.95
$287.95

The Lockwood Artefact range in Aluminium, Brass, and Stainless Steel offers architects and specifiers a complete selection of slimline door furniture plates. Suitable for public, commercial, industrial, and institutional buildings, these plates deliver high-grade, durable fittings. The Artefact range provides multiple functional options, with engraving available to suit most requirements.

The 202 Series Door Furniture features a 162mm square plate with 10mm radius corners. Concealed fixed plates include studs with internal threads at each corner, while visible plates feature countersunk holes for secure back-to-back installation through the door.

Application

Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks, as well as latch and Push & Pull doors.

Features

  • Internal plate only

  • Visible fixings at four points (screws not included)

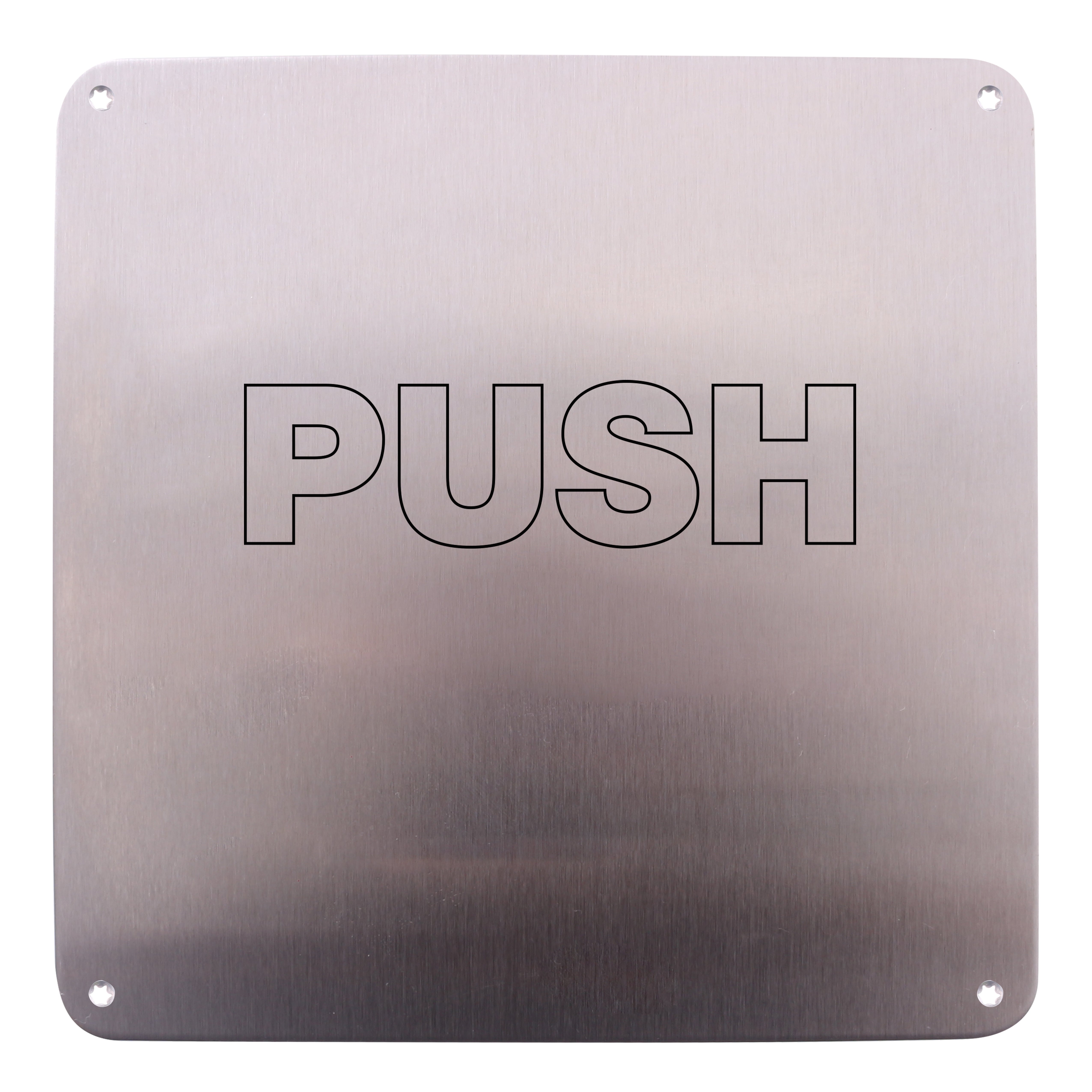

  • Push symbol included

  • Non-handed

  • Fire rated up to 2 hours

  • Supplied in trade pack

Plate Dimensions

  • 162mm x 162mm x 2mm

  • Cylinder pitch: 64mm

Materials

  • Aluminium / Brass / Stainless Steel

Door Thickness

  • 35 to 45mm standard

  • For doors 45 to 55mm thick, specify long fixing screws SP2000-208

  • Minimum 40mm for flush pulls back-to-back

Available Variants

Cylinder Hole / Lever Variants

  • Cylinder Hole – 77 Lever – LH

  • Full Infill – Cylinder Hole – 77 Lever – RH

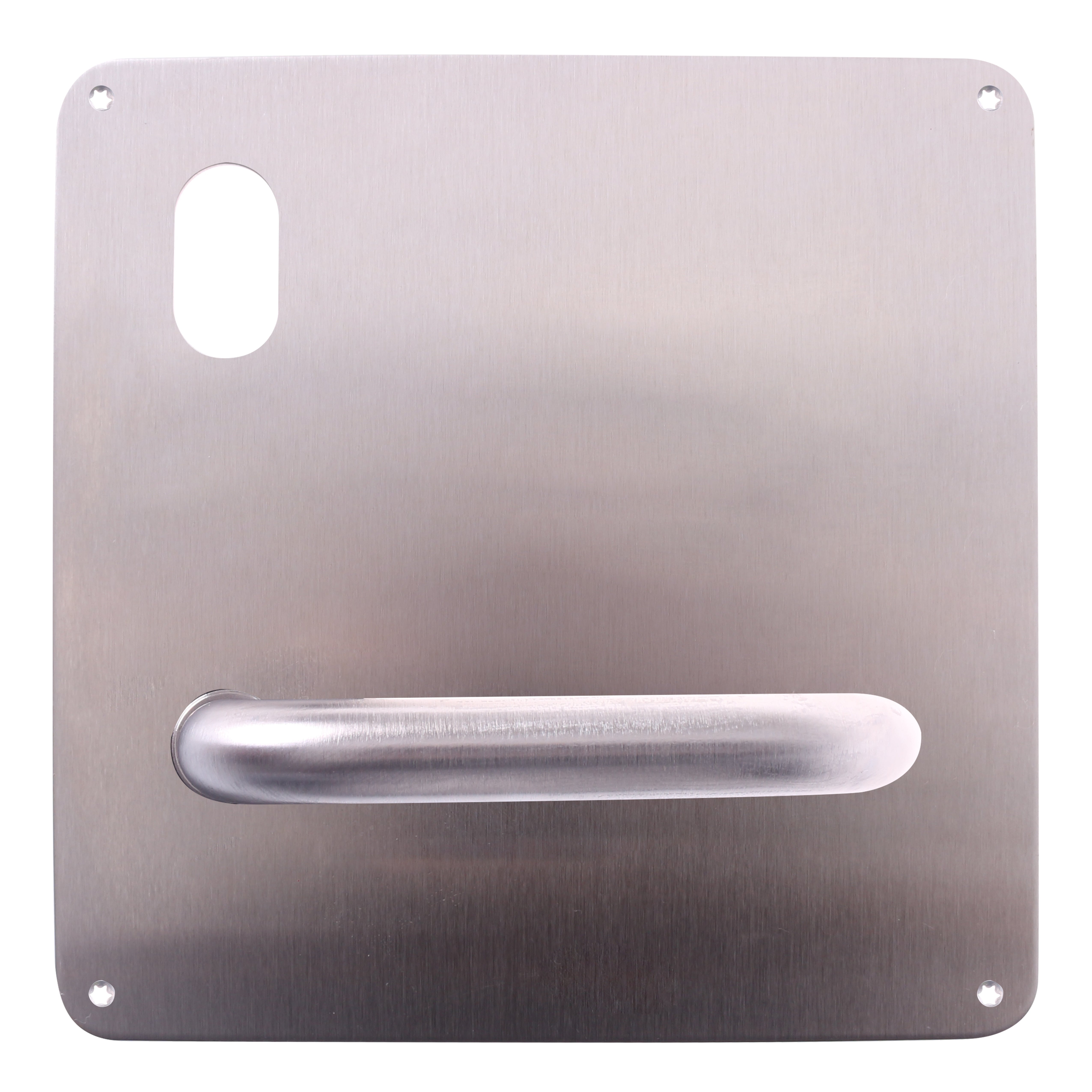

  • Misc Eng – Cylinder Hole – 96 Lever – LH

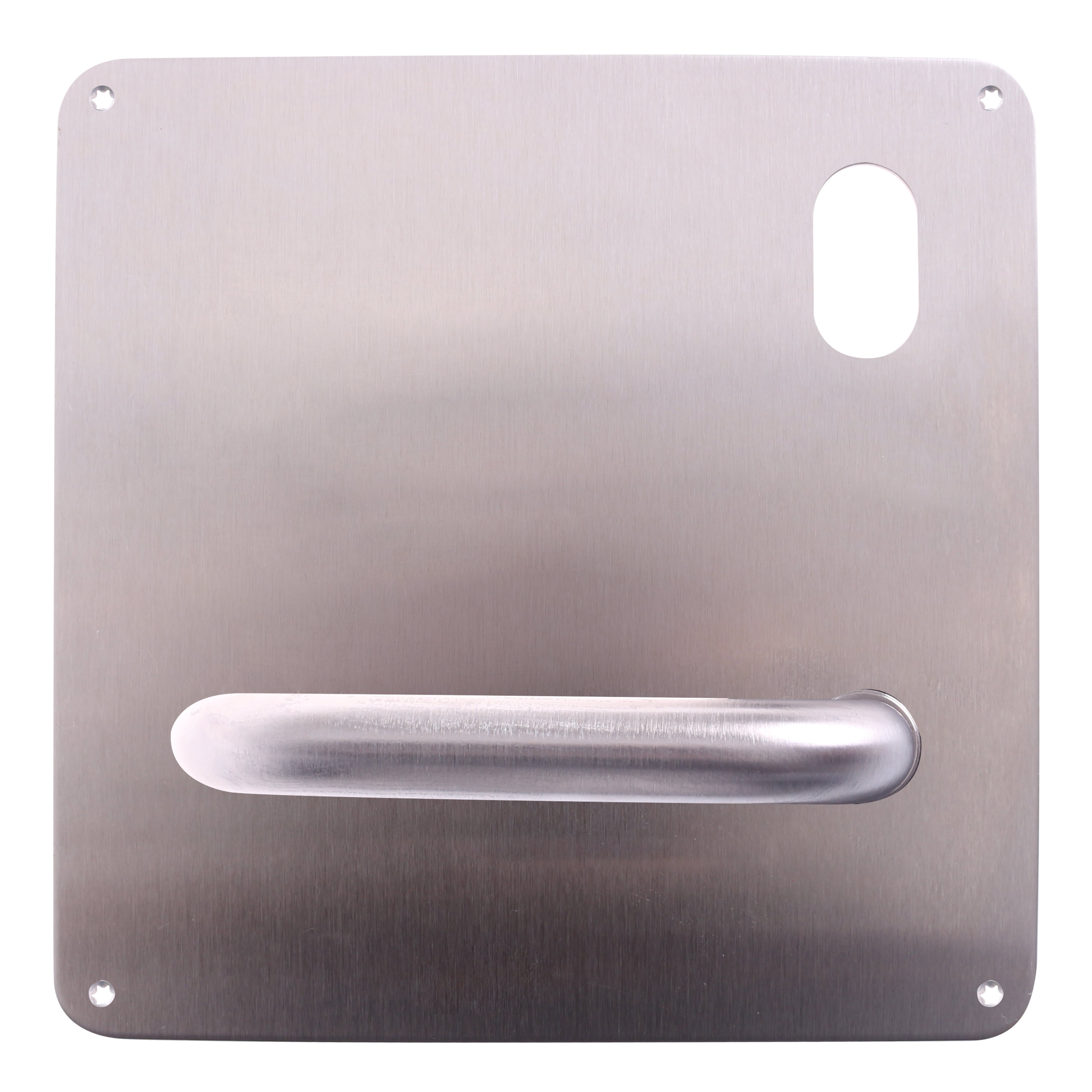

  • Misc Eng – Cylinder Hole – 96 Lever – RH

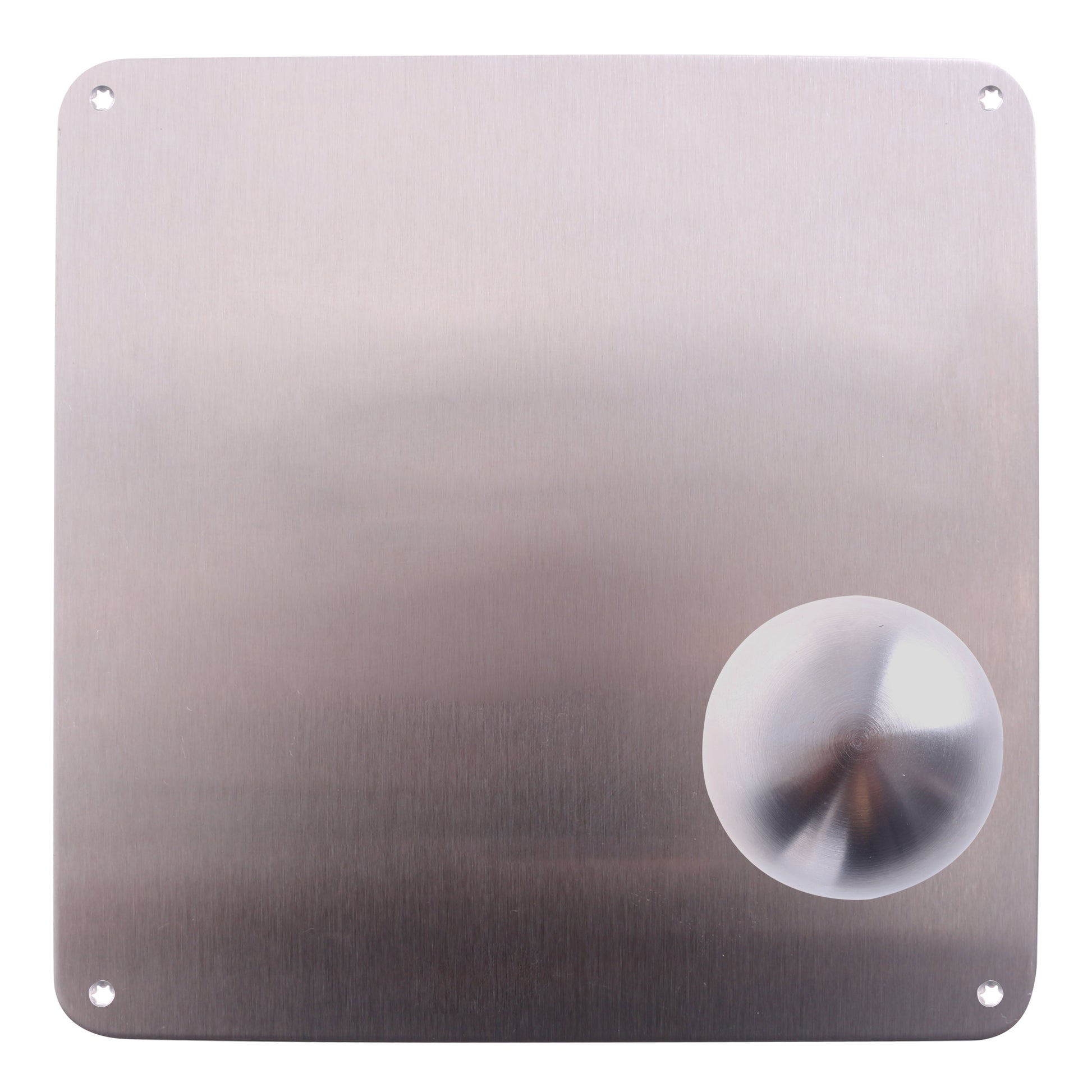

Fixed Knob Variants

  • Fixed 20 Knob – LH

  • Fixed 20 Knob – RH

  • 20 Knob – LH

  • 20 Knob – RH

Disabled Access / Selector Variants

  • Dis ACC Turn – 102 Lever – LH

  • Dis ACC Turn – 102 Lever – RH

  • Dis ACC Turn – 111 Lever Selector – LH

  • Dis ACC Turn – 112 Lever Selector – RH

  • Dis ACC Turn – 118 Lever – LH

  • Dis ACC Turn – 118 Lever – RH

  • Dis ACC Turn – 118 Lever Selector – LH

  • Dis ACC Turn – 118 Lever Selector – RH

  • Dis ACC Turn – 142 Lever – LH

  • Dis ACC Turn – 142 Lever – RH

  • Dis ACC Turn – 70 Lever Selector – LH

  • Dis ACC Turn – 70 Lever Selector – RH

  • Dis ACC Turn – 90 Lever Selector – LH

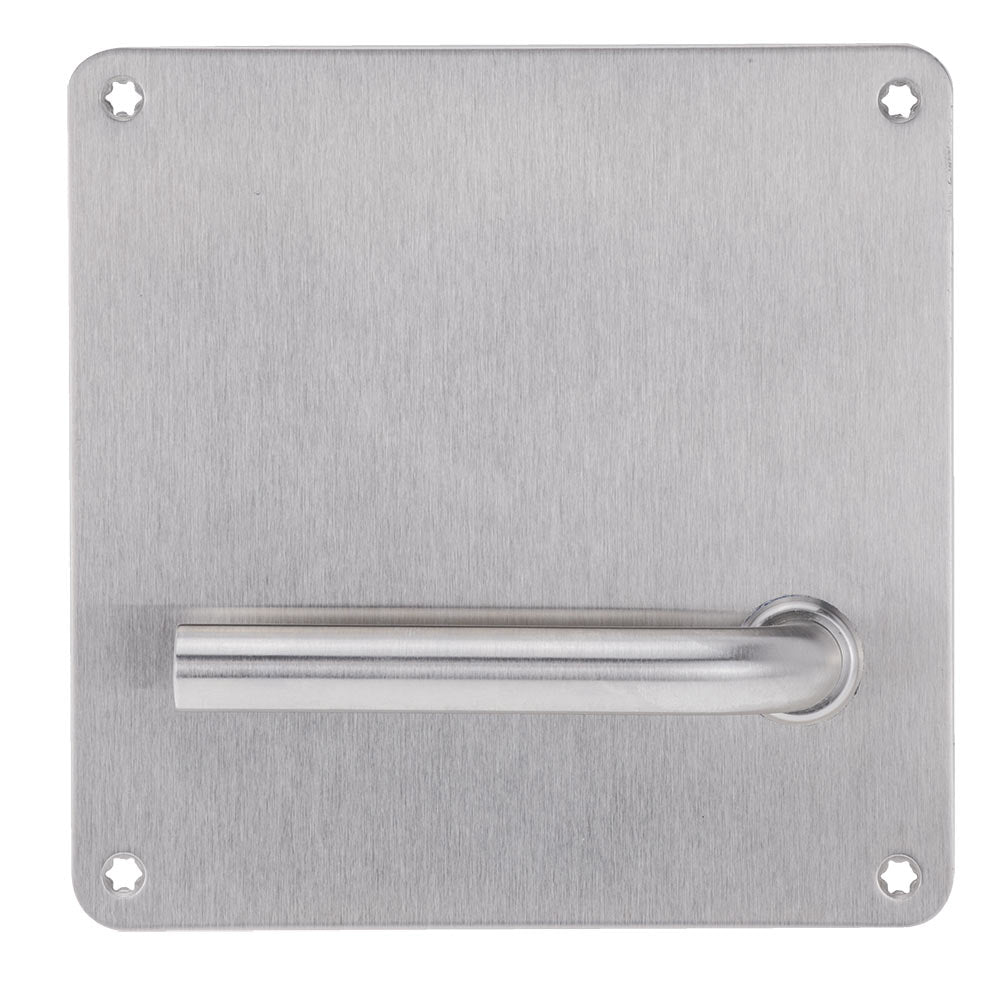

Standard Lever Variants

  • 102 Lever – LH / RH

  • 111 Lever – LH / RH

  • 112 Lever – LH / RH

  • 118 Lever – LH / RH

  • 142 Lever – LH / RH

  • 77 Lever – LH / RH

  • 144 Lever – LH / RH

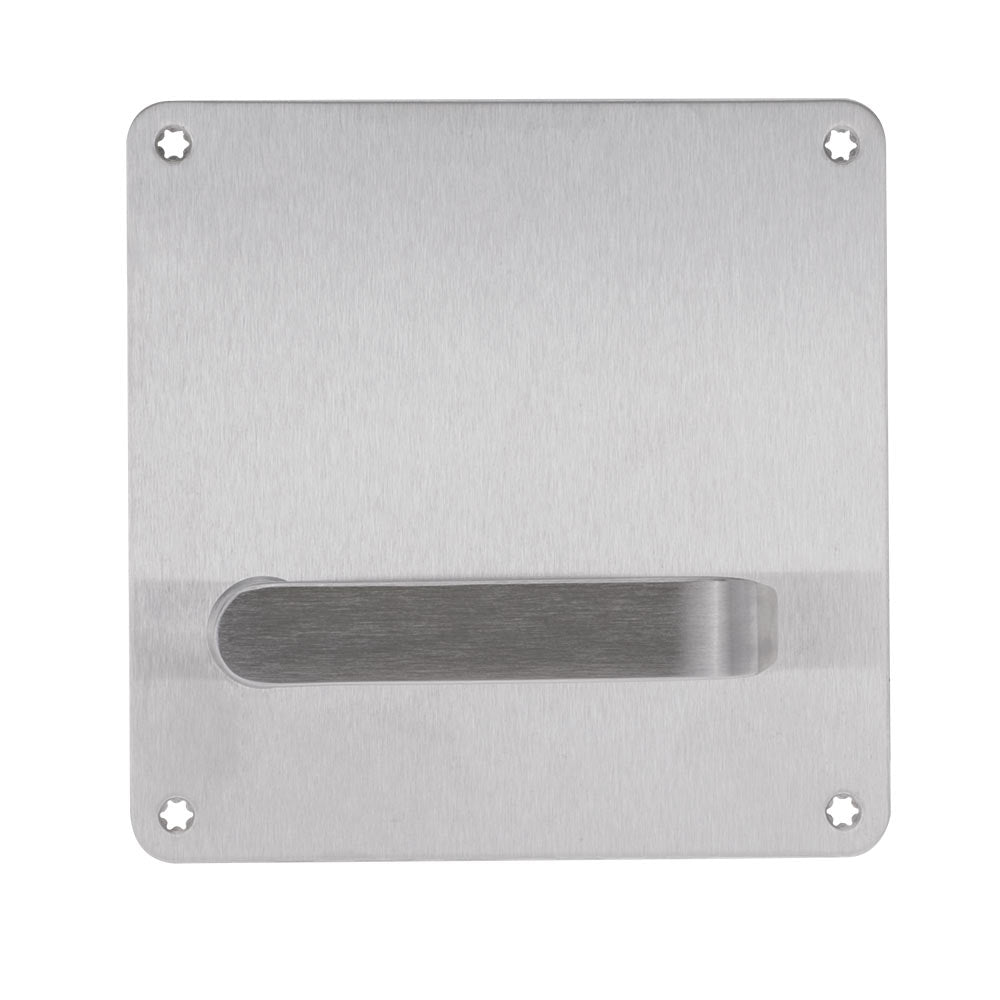

  • 59 Lever – LH / RH

  • 70 Lever – LH / RH

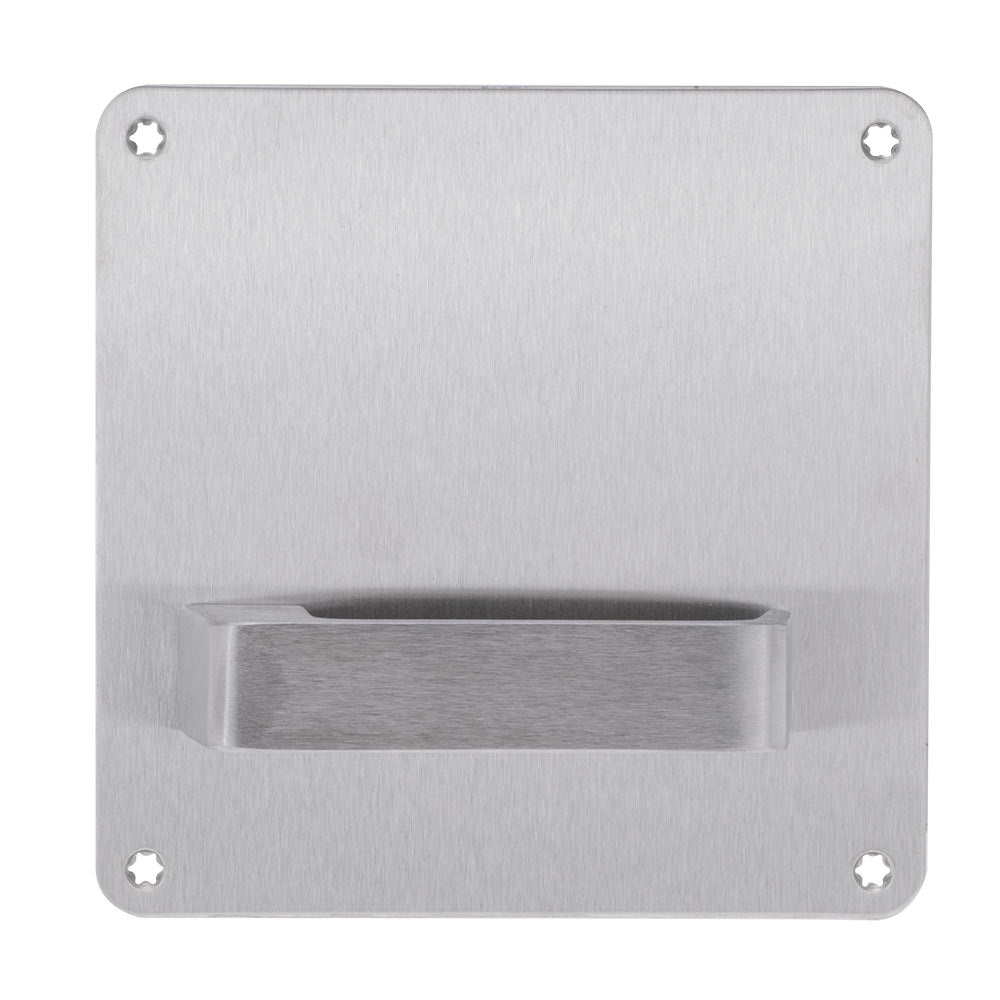

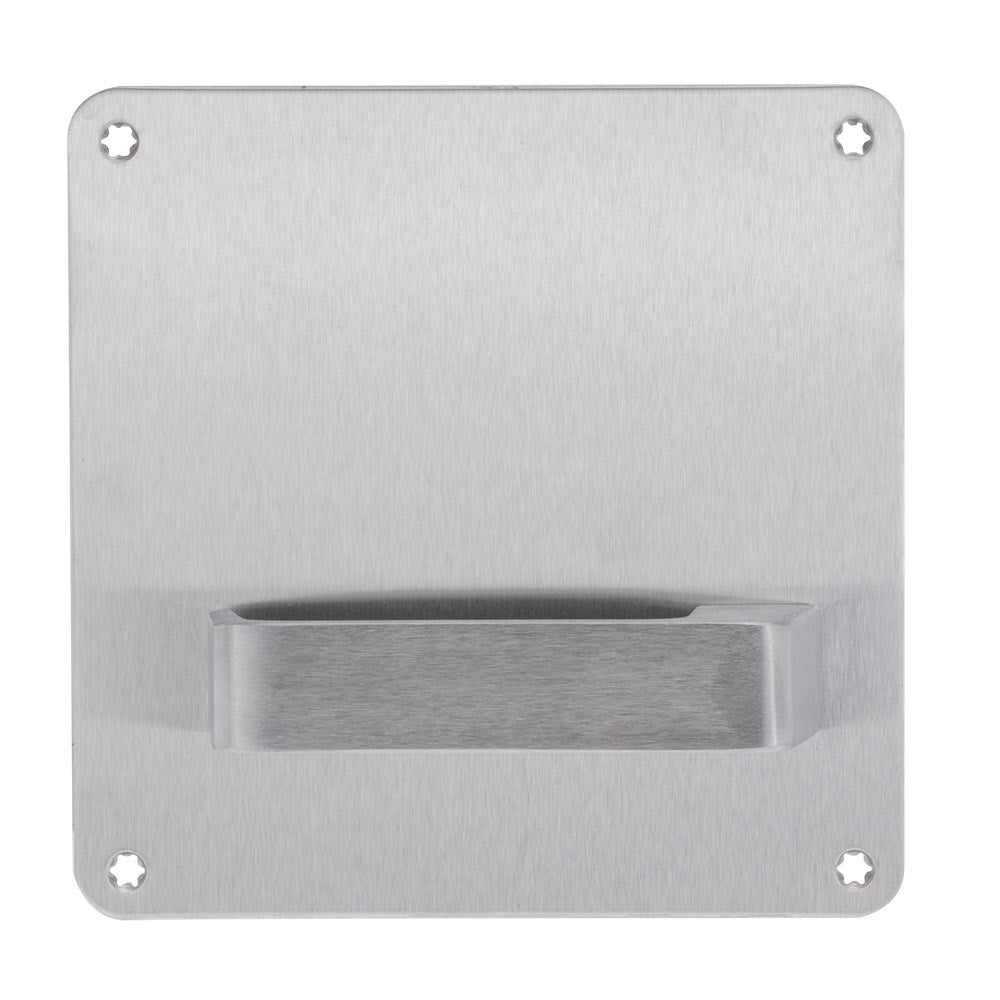

  • 90 Lever – LH / RH

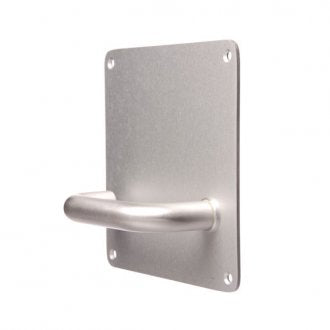

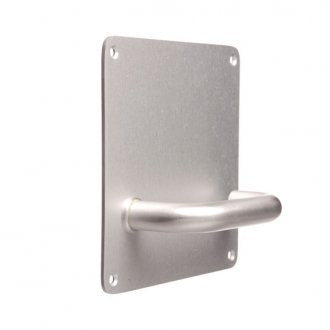

  • 96 Lever – LH / RH

  • 96 Lever – RH Misc Text

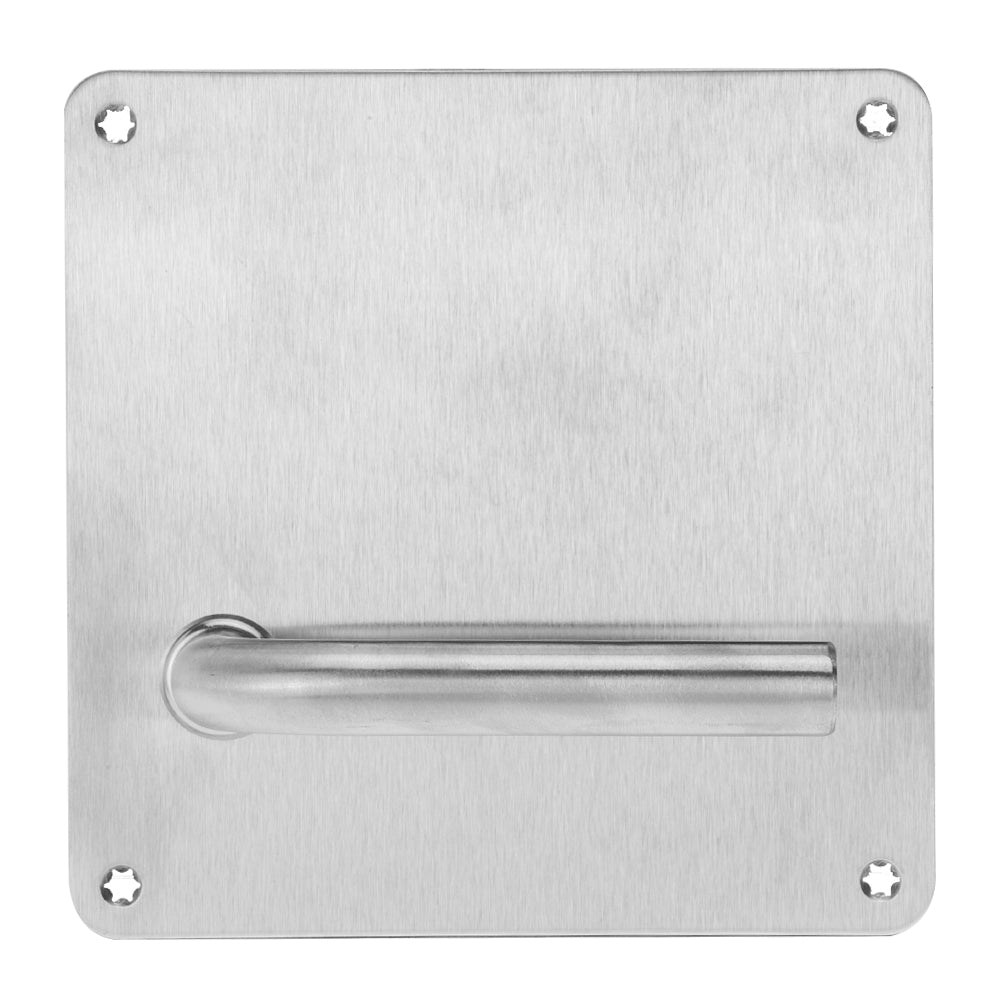

  • 98 Lever – LH

Pull / Push Handle Variants

  • Pull Full Infill – P1 Pull Handle – LH / RH

  • Pull Full Infill – P1 Push Handle – LH

  • Push Full Infill – P1 Pull Handle – RH

  • Pull Outline – P1 Pull Handle – LH / RH

Other Plate / Misc Variants

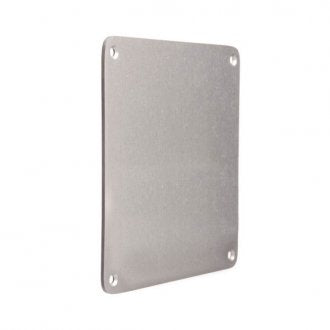

  • Interior Plate

  • Female Symbol Outline

  • Push Full Inline (blank)

  • Push Outline (blank)

  • Pull Outline (blank)

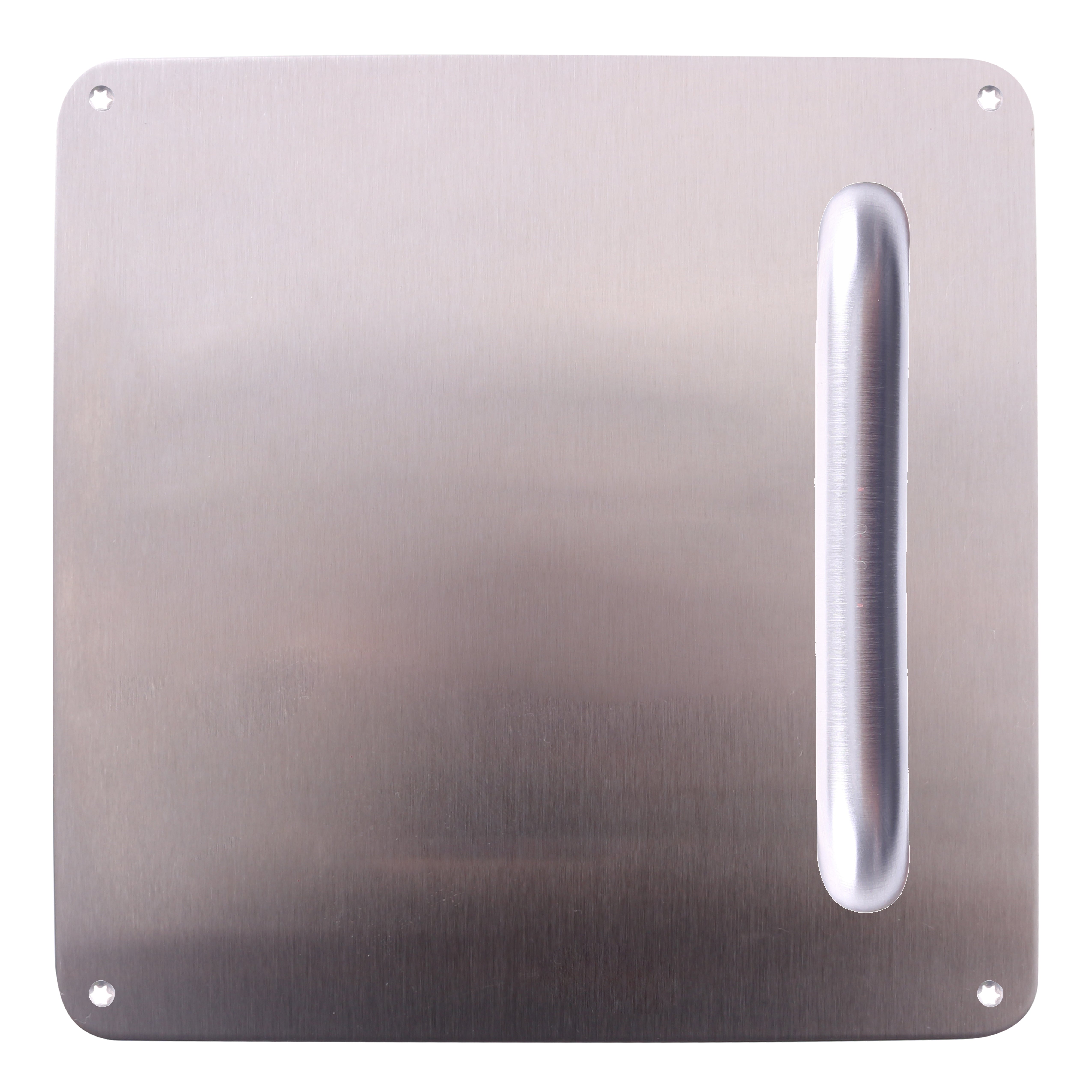

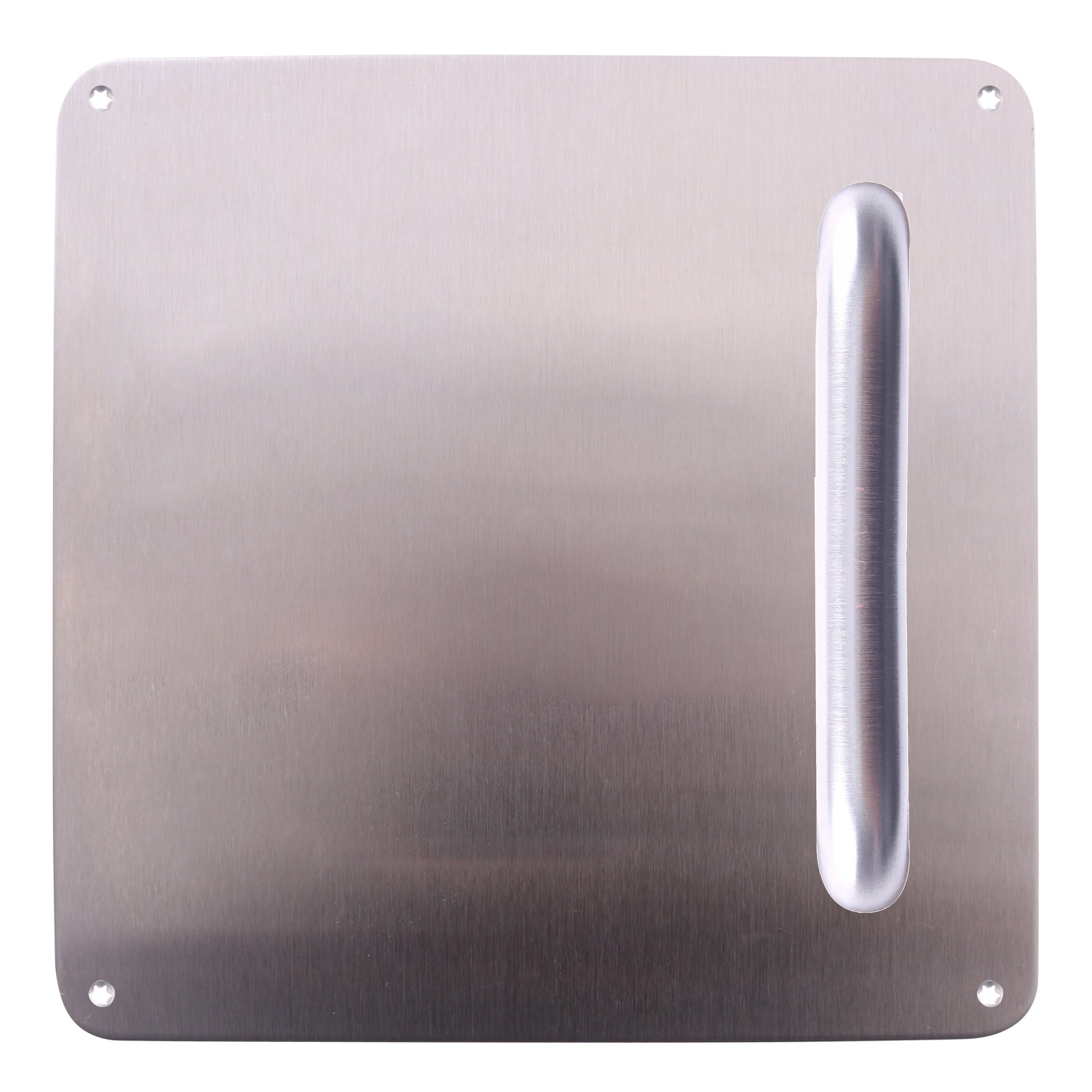

  • 75 Pull Handle
