203 Interior Plate – Multi-Function (Cylinder / Turn / Led / Handles / Levers)

The distinguished Artefact range in Aluminium, Brass, and Stainless Steel offers architects and specifiers a complete range of slimline, durable door furniture plates. Designed for public, commercial, industrial, and institutional buildings, this plate provides high-grade, long-lasting fittings with multiple functional options and available engraving.

The 203 Interior Plate is 162mm square with 10mm radius corners. Concealed plates include studs with internal threads in each corner, while visible plates have corresponding countersunk holes and are fixed back-to-back through the door.

Application

Compatible with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks, latches, and push/pull doors.

Features

• Internal plate with 96 lever

• Visible fixings (screws not included) at 4 points

• Disability turn snib

• Right-handed configuration

• Fire-rated up to 2 hours

• Supplied in trade pack

Plate Dimensions

• Plate: 162mm × 162mm × 2mm

• Cylinder pitch: 64mm

Materials

• Aluminium / Brass / Stainless Steel

Door Thickness

• Standard: 35–45mm

• For 45–55mm doors, specify long fixing screws SP2000-208

• For flush pulls back-to-back, minimum door thickness: 40mm

Cylinder Hole Variants

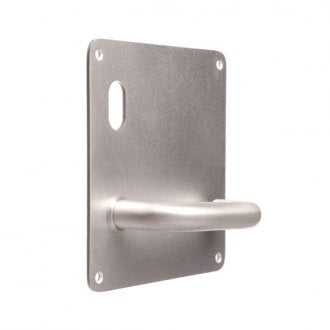

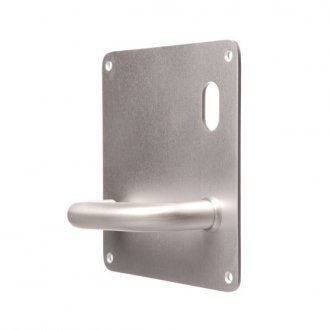

• Cylinder Hole – 96 Lever – RH — 20301NA/96RNT

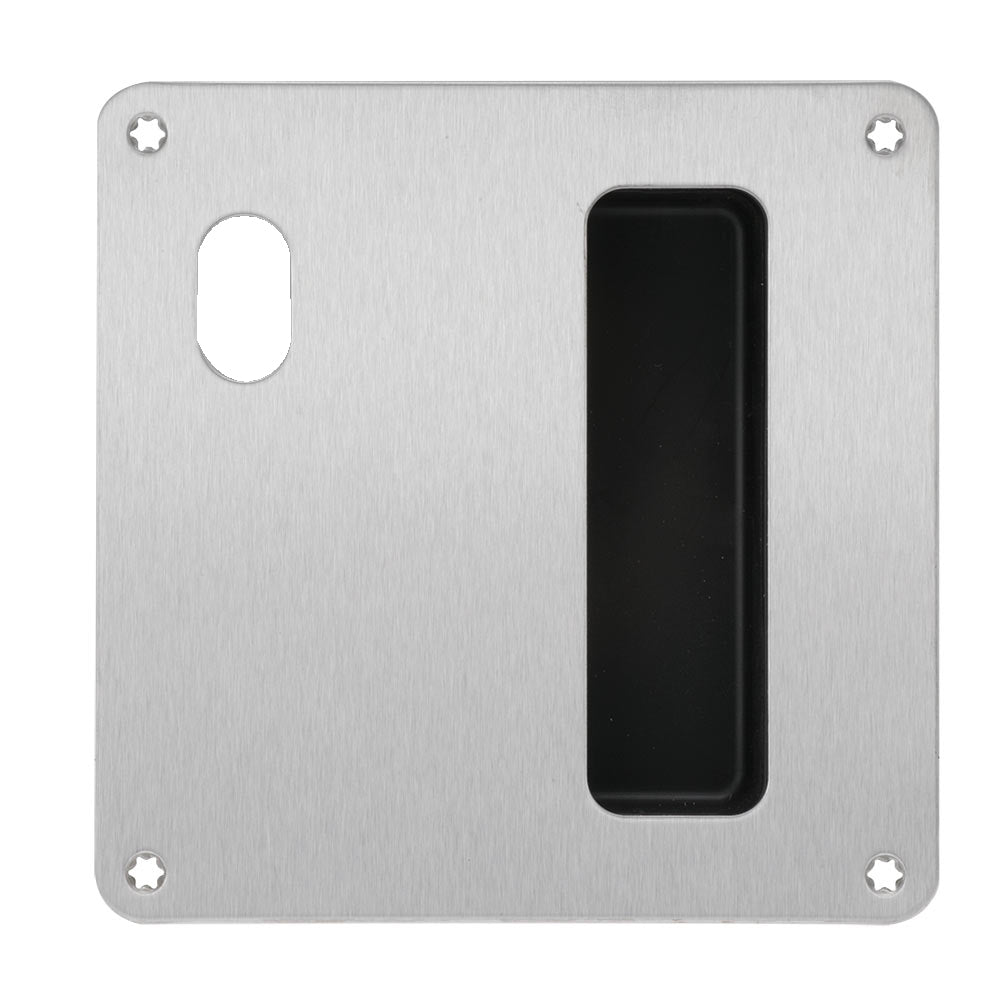

• Cylinder Hole – Flush Pull – LH — 20232NARNT

• Cylinder Hole – LED – 96 Lever – LH — 20320NA/96LNT

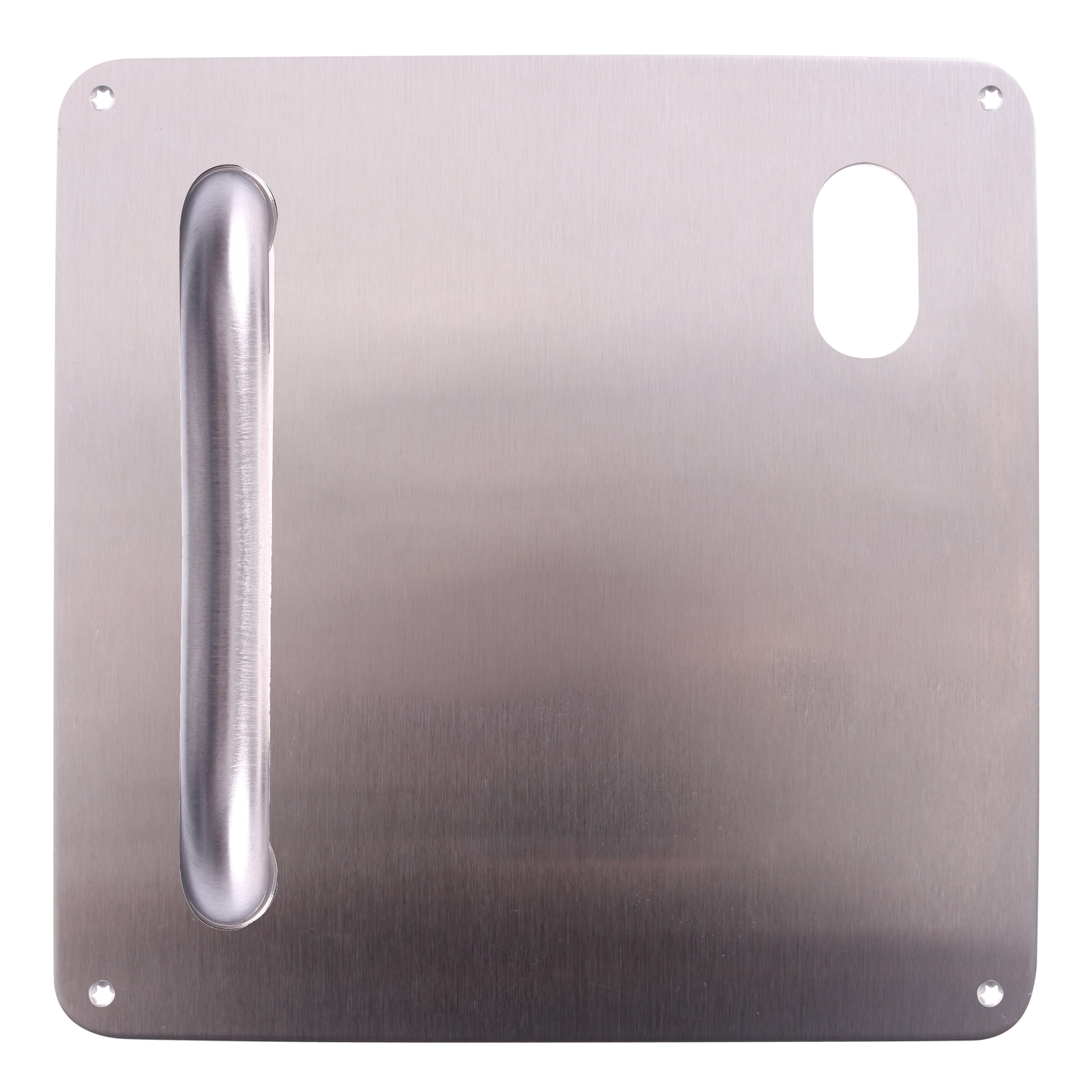

• Cylinder Hole – P1 Pull Handle – RH — 20325NA/P1RNT

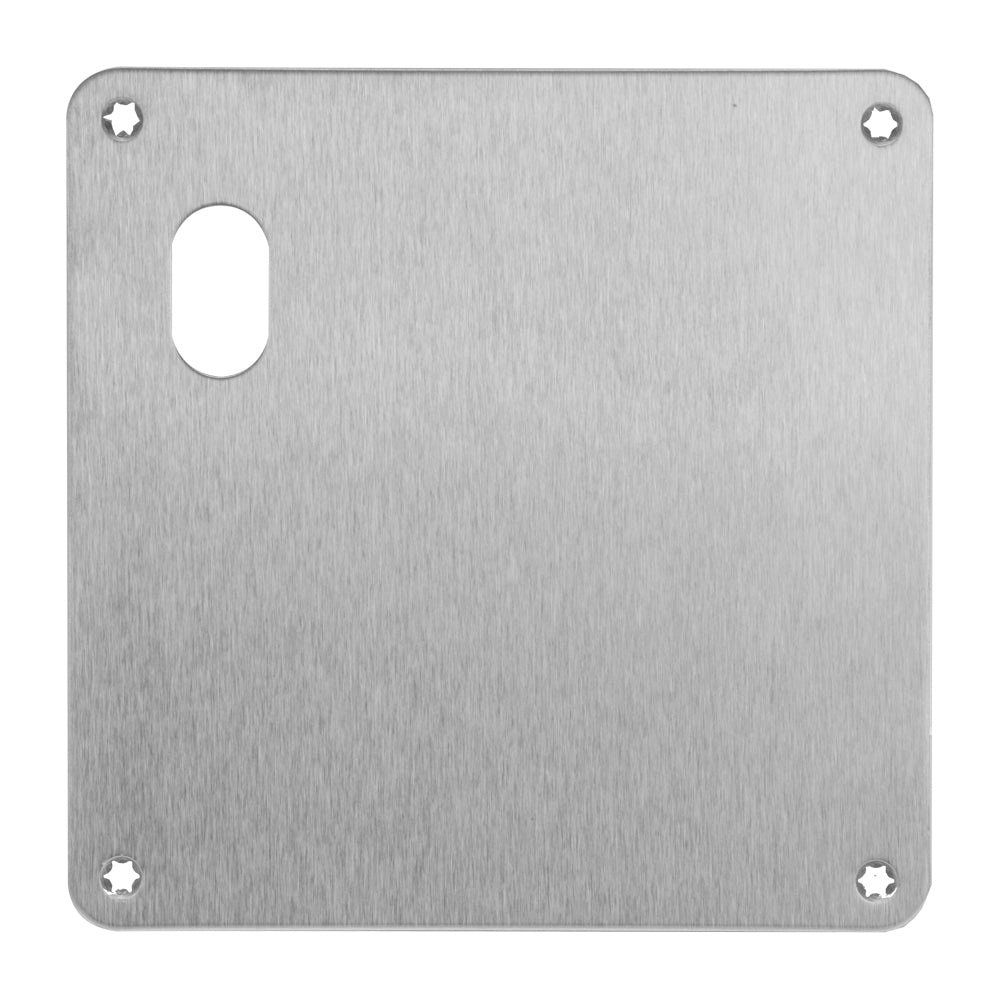

• Cylinder Hole – LH — 20300NALNT

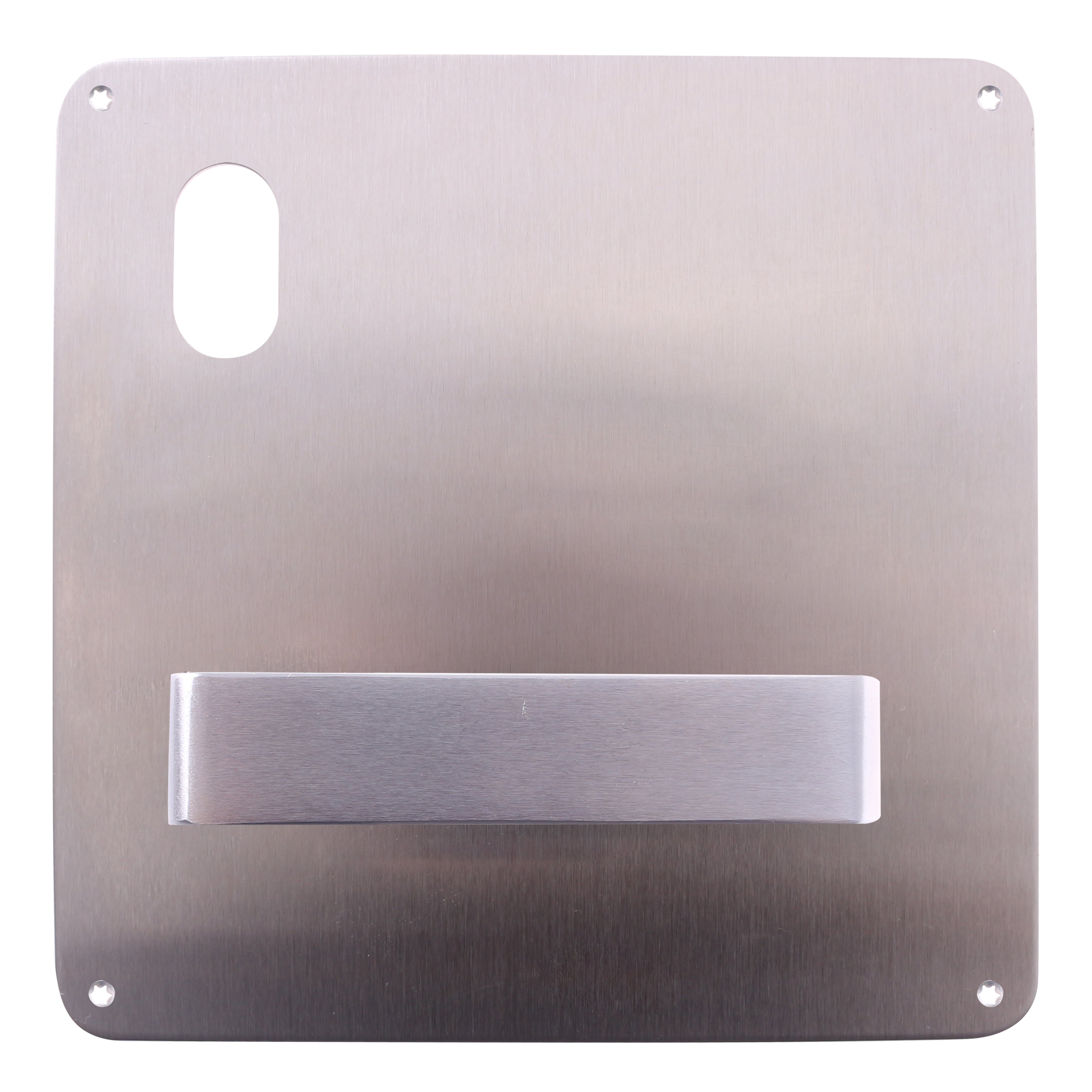

• Cylinder Hole – 90 Lever – LH — 20301NA/90LSS

• Cylinder Hole – 96 Lever – RH — 20301NA/96RPS

• Cylinder Hole – Fixed 96 Lever – RH — 20308NA/96RSS

• Cylinder Hole – Fixed 98 Lever – LH — 20308NA/98LSS

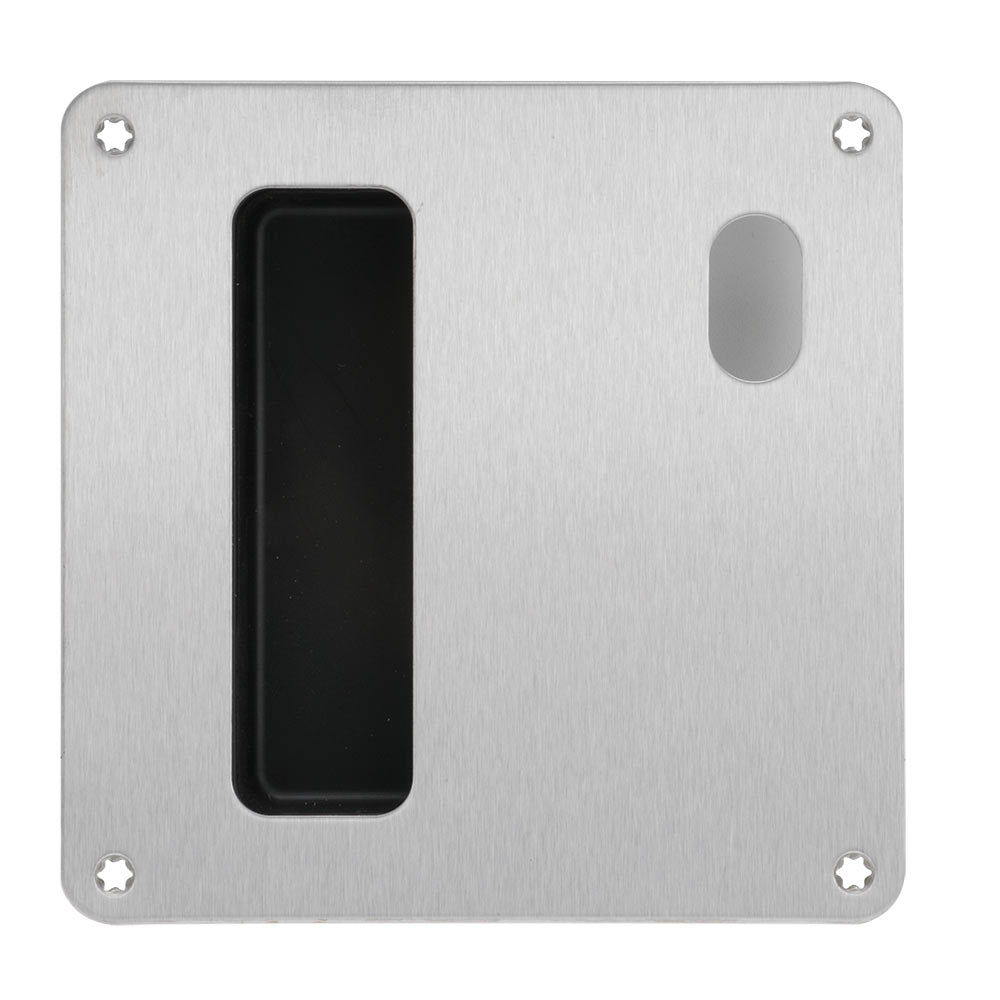

• Cylinder Hole – Flush Pull – RH — 20332NARSS

• Cylinder Hole – LED – 96 Lever – LH — 20320NA/96LSS

• Cylinder Hole – P1 Horizontal Pull Handle – LH — 20325NA/HP1LSS

• Cylinder Hole – P1 Horizontal Pull Handle – RH — 20325NA/HP1RSS

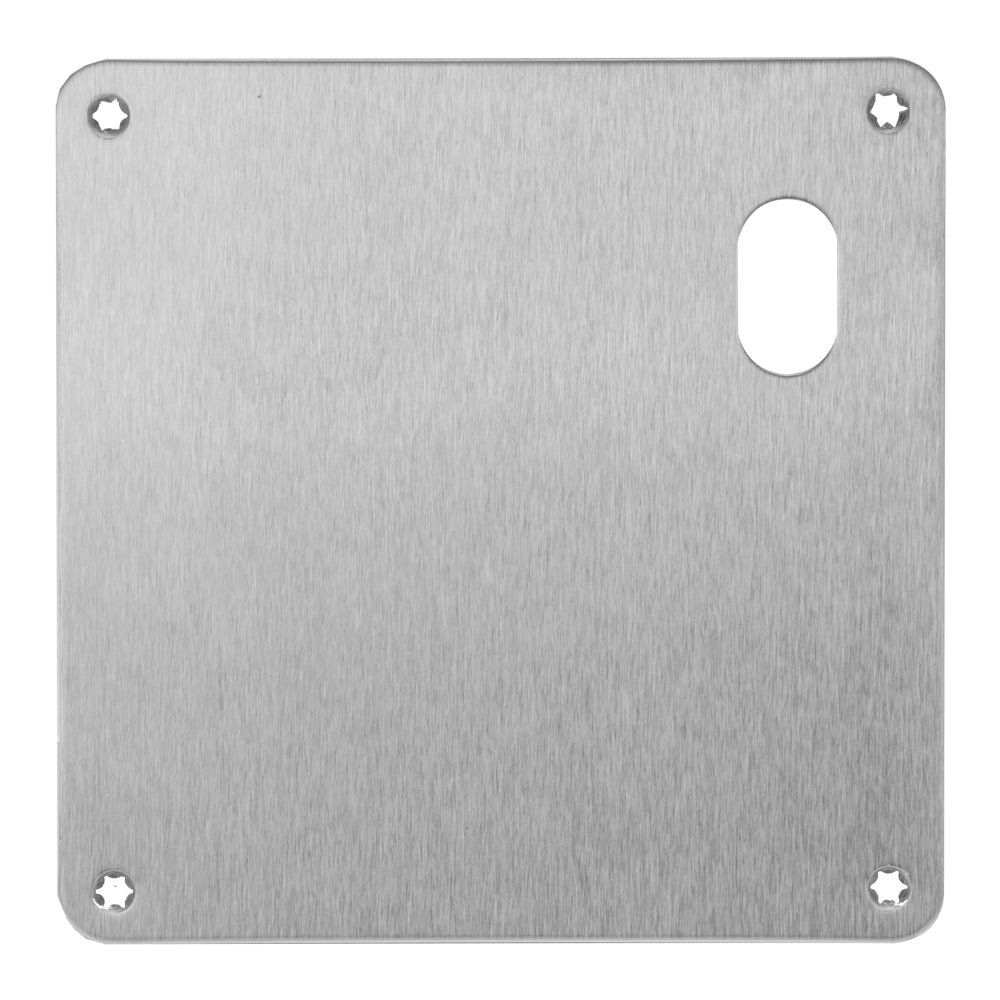

• Cylinder Hole – RH — 20300NARMG

• Cylinder Hole – 96 Lever – RH — 20301NA/96RMG

• Cylinder Hole – 96 Lever – LH — 20301NA/96LPB

• Cylinder Hole – 96 Lever – LH — 20301NA/96LPS

Disabled / Turn Variants

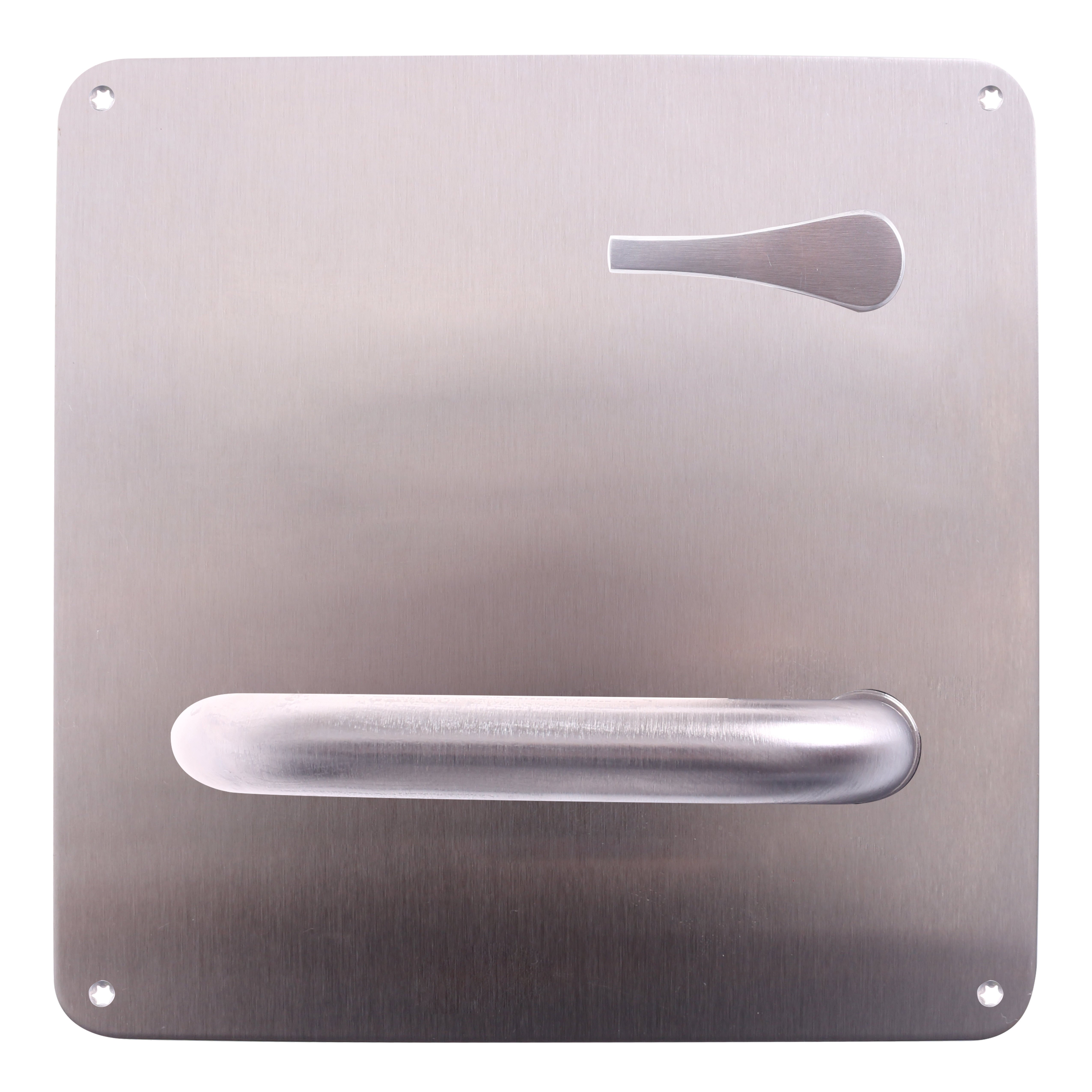

• Disabled Turn – 96 Lever – RH — 20339NN/96RNT

• Disabled Turn – 98 Lever – LH — 20339NN/98LNT

• Disabled Turn – 98 Lever – RH — 20339NN/98RNT

• Disabled Turn – 70 Lever – LH — 20339NN/70LPC

• Disabled Turn – 96 Lever – LH — 20339NN/96LPC

• Disabled Turn – 96 Lever – RH — 20339NN/96RPC

• Disabled Turn – 96 Lever Selector – RH — 20339NS/96RSS

• Disabled Turn – 97 Lever – RH — 20339NN/97RSS

• Disabled Turn – 98 Lever – RH — 20339NN/98RSS

• Disabled Turn – Flush Pull – LH — 20345NNLSS

• Disabled Turn – Flush Pull Pentagon – LH — 20345NPLSS

• Disabled Turn – Flush Pull – RH — 20345NNRSS

• Disabled Turn – 144 Lever – LH — 20339NN/144LSS

• Disabled Turn – 41 Lever – LH — 20339NN/41LSS

• Disabled Turn – 41 Lever – RH — 20339NN/41RSS

• Disabled Turn – 59 Lever – RH — 20339NN/59LSS

• Disabled Turn – 70 Lever – LH — 20339NN/70LSS

• Disabled Turn – 70 Lever – RH — 20339NN/70RMG

• Disabled Turn – 90 Lever – LH — 20339NN/90LSS

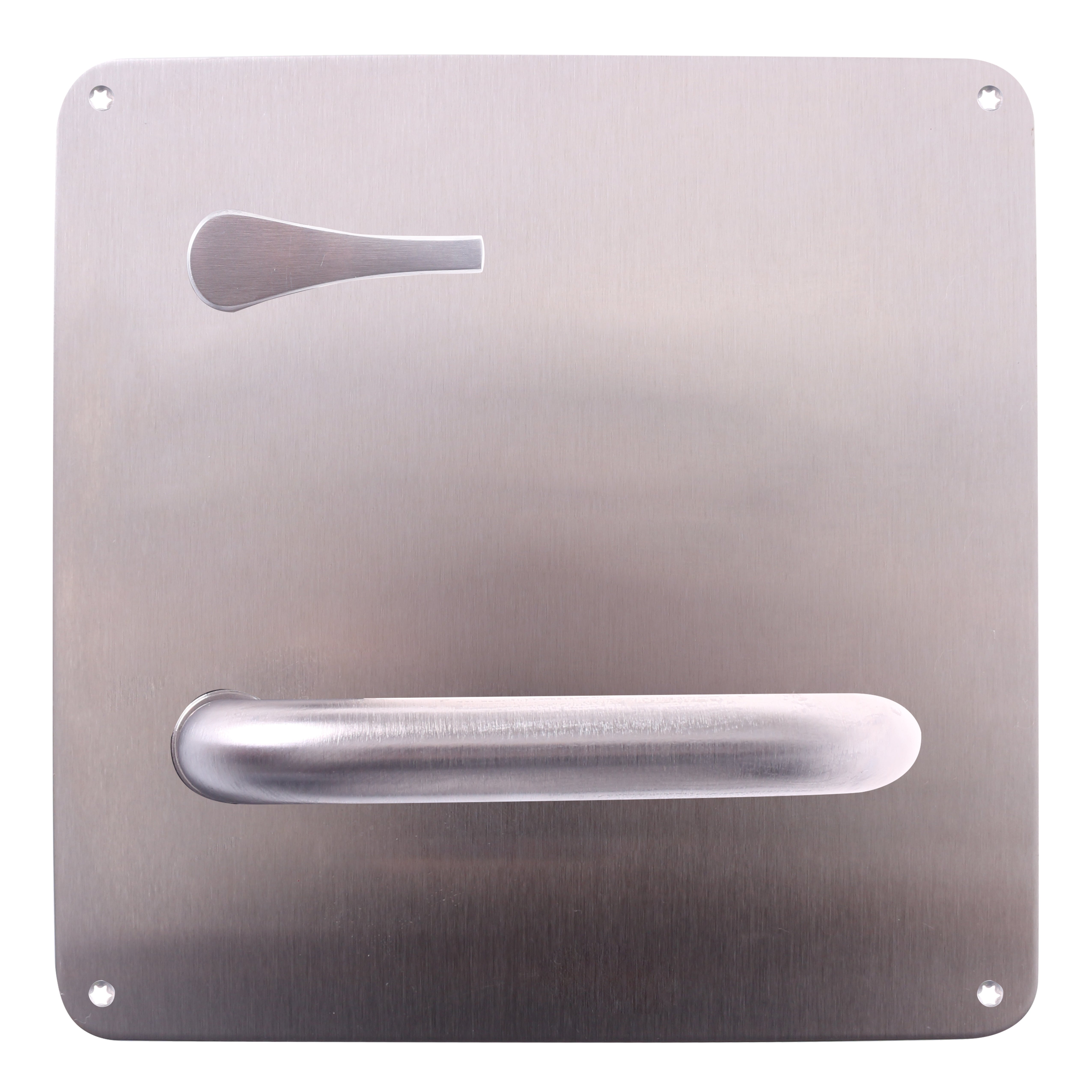

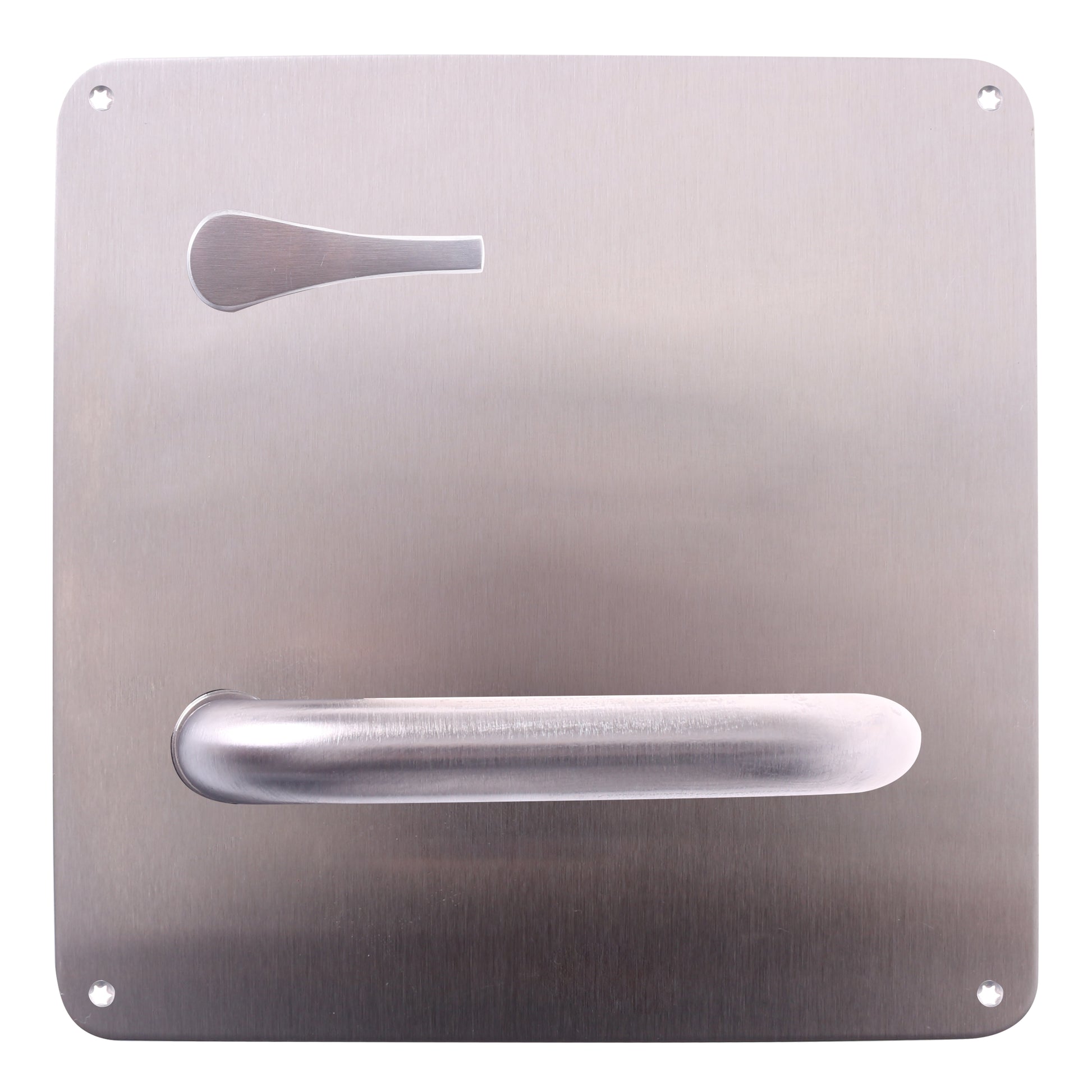

• Disabled Turn – 96 Lever – LH — 20339NN/96LSS

• Disabled Turn – 96 Lever – RH — 20339NN/96RMG

• Disabled Turn – 96 Lever Selector – LH — 20339NS/96LMG

• Disabled Turn – 96 Lever Selector – RH — 20339NS/96RMG

• Disabled Turn – 144 Lever – RH — 20339NN/144RMG

• Disabled Turn – 70 Lever – RH — 20339NN/70RMG

• Disabled Turn – 96 Lever – LH — 20339NN/96LMG

• Disabled Turn – 96 Lever – RH — 20339NN/96RMG

• Disabled Turn – 96 Lever – LH — 20339NN/96LPB

• Disabled Turn – 96 Lever – RH — 20339NN/96RPS

• Disabled Turn – 59 Lever Selector – LH — 20339NS/59LAZ

• Disabled Turn – 70 Lever Selector – LH — 20339NS/70LAG

• Disabled Turn – 70 Lever Selector – RH — 20339NS/70RAG

Disability Turn / P1 Horizontal Pull Handle

• Dis Turn – P1 Horiz Pull Handle – LH — 20342NN/HP1LSS

• Dis Turn – P1 Horiz Pull Handle – RH — 20342NN/HP1RSS
