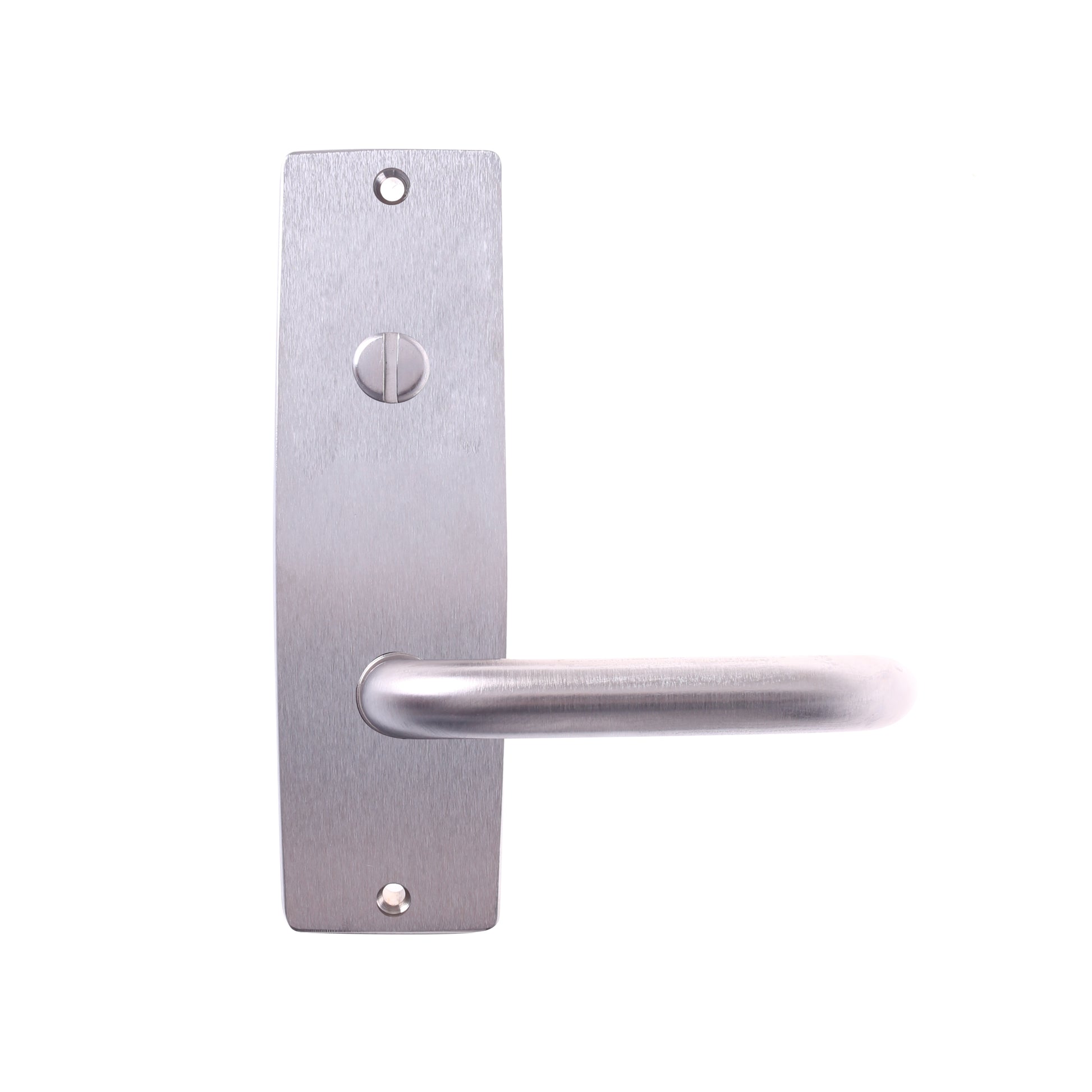

1903 Square End Plate With Emergency Turn & Lever

Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.

Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.

The timeless design of this tubular shaped lever signifies quality and strength.

The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.

Features

• Lockwood lever 70
• Internal plate with visible fixings (screws not included)
• Emergency turn
• Cylinder pitch 64mm
• Fixing centres 148mm
• Non-handed
• Supplied in trade pack

Plate Dimensions
Height: 166mm
Width: 48mm
Depth: 12mm

Lever Dimensions
Length: 121mm
Projection: 53mm
Finger clearance: 37mm

When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
